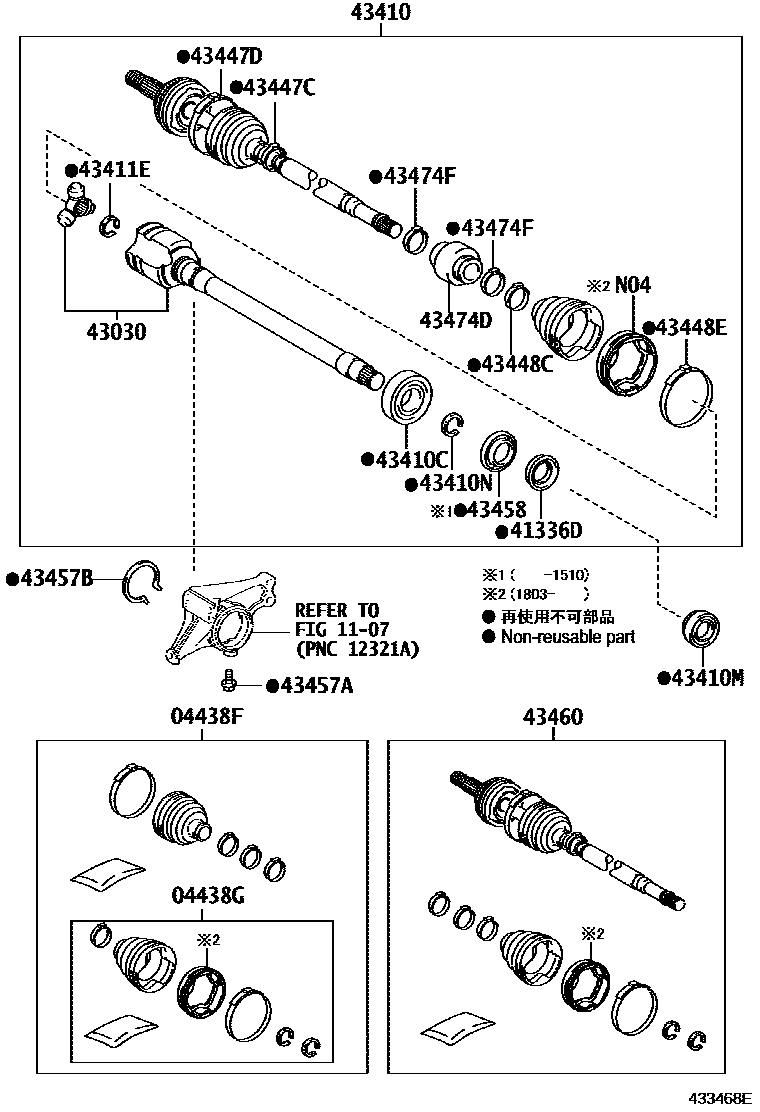

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-02690iASU50201803-202104

main04427-02691iASU50202104

main04427-02700iASU55201803-202104

main04427-02701iASU55202104

main04427-0E070iGSU55201503-201602

main04427-0E071iGSU55201602-201710

main04427-0E090iASU55201503-201602

main04427-0E091iASU55201602-201803

main04427-0F030iASU50201503-201602

main04427-0F031iASU50201602-201803

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-02550iGSU55201503-201710

main04437-02570iASU55201503-201803

main04437-02580iASU50201503-201803

main04437-02600iASU50201803-202104

main04437-02601iASU50202104

main04437-02610iASU55201803-202104

main04437-02611iASU55202104

1107MOUNTING

→ Go to FIG 11-07

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-0E140iASU50201503-201803

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-0E140iGSU55201503-201710

main43030-0E150iASU50201503-201803

main43030-0E190iASU50201803-202104

main43030-0E200iASU55201803-202104

main43030-0E360iASU50202104

main43030-0E370iASU55202104

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0E190iGSU55201503-201710

main43410-0E200iASU55201503-201803

main43410-0E210iASU50201503-201803

main43410-0E250iASU50201803-202103

main43410-0E251iASU50202104

main43410-0E260iASU55201803-202103

main43410-0E261iASU55202104

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-C0025iGSU55201503-201710

main90363-C0026iASU50201803

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40038iASU50201503-201803

main90316-34001iASU55201503-201803

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-0E310iASU55201803

main43425-0E320iASU50201503-201803

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0E280iGSU55201503-201710

main43425-0R210iASU5#202104

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0E360iGSU55201503-201710

main42345-0E390iASU5#202104

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0E350iASU5#,GSU55201503-201602

main42345-0E351iGSU55201602-201710

main42345-0E580iASU5#202104

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0E340iGSU55201503-201710

main42345-0E390iASU5#201803

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0E330iGSU55201503-201710

main42345-0E380iASU5#201803

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iASU50201503-201803

*10-1.25PX19.8-8.3

main90901-19060iGSU55201503-201710

*10-1.25PX28.5-14.8

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iASU55201503-201803

main90521-78002iASU50201503-201705

main90521-C0001iASU50201706-201803

43458COVER, FRONT DRIVE SHAFT DUST

main43458-0E040iASU50201503-201510

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-8Z252iGSU55201503-201710

main43470-8Z262iASU55201503-201803

main43470-8Z263iASU50201503-201803

main43470-8Z286iASU50201803-202104

main43470-8Z287iASU55201803-202104

main43470-8Z868iASU50202104

main43470-8Z869iASU55202104

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-0E060iASU5#201503-201803

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-0E190×2iASU5#201503-201803
