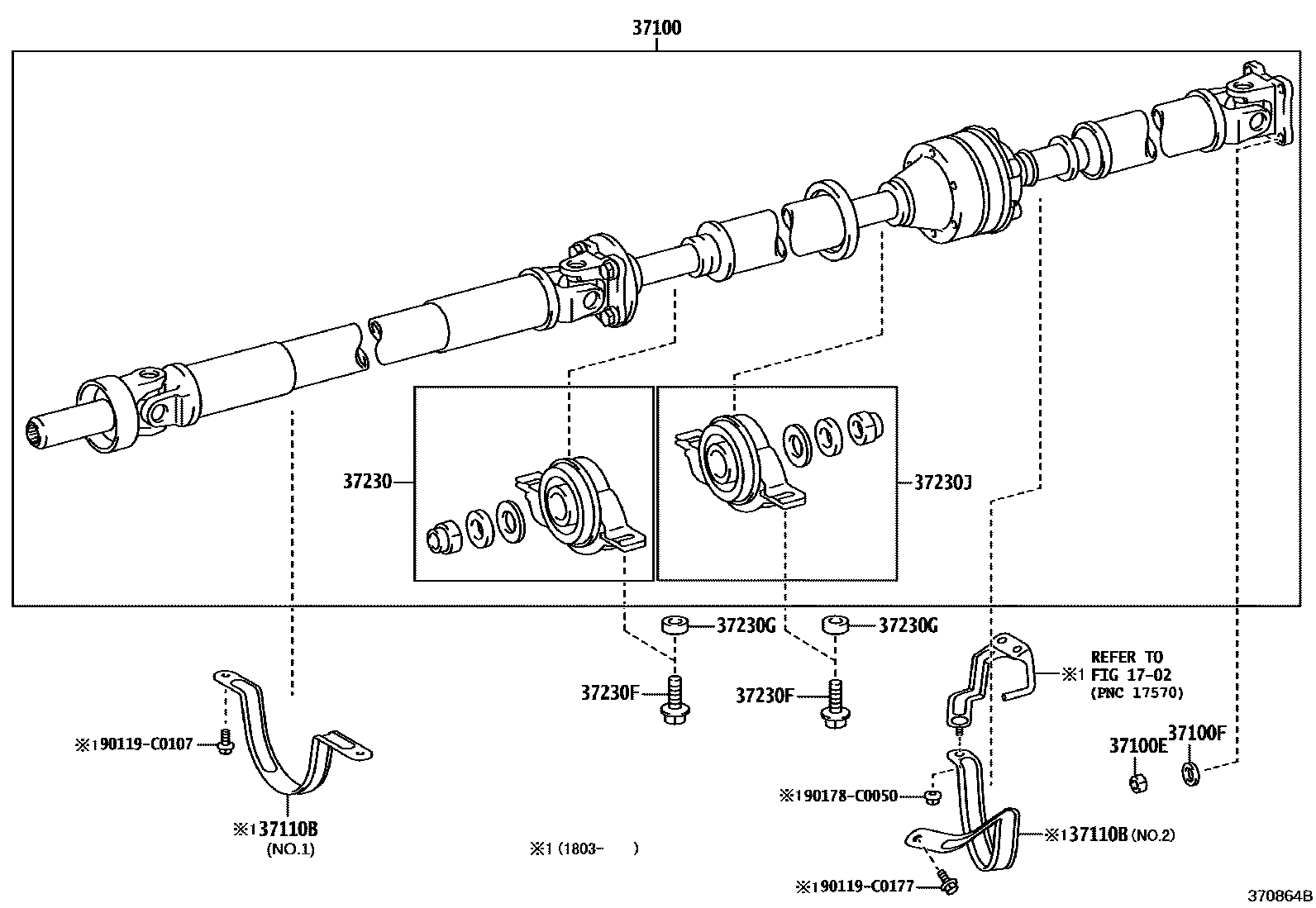

PROPELLER SHAFT & UNIVERSAL JOINT
1702EXHAUST PIPE
37100SHAFT ASSY, PROPELLER W/CENTER BEARING
37100ENUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
(J)
(L)
37100FWASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37110BGUARD, PROPELLER SHAFT
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
37230BEARING ASSY, CENTER SUPPORT, NO.1
37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)
(J)
(L)
37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)
T=4.5
T=6.5
T=9.0
T=11.0
T=13.5
T=3.2
T=15.5
T=17.5
37230JBEARING ASSY, CENTER SUPPORT, NO.2
90119C0107
main90119-C0107
90119C0177
main90119-C0177
90178C0050
main90178-C0050
12 parts on this diagram · 1 diagram in section
