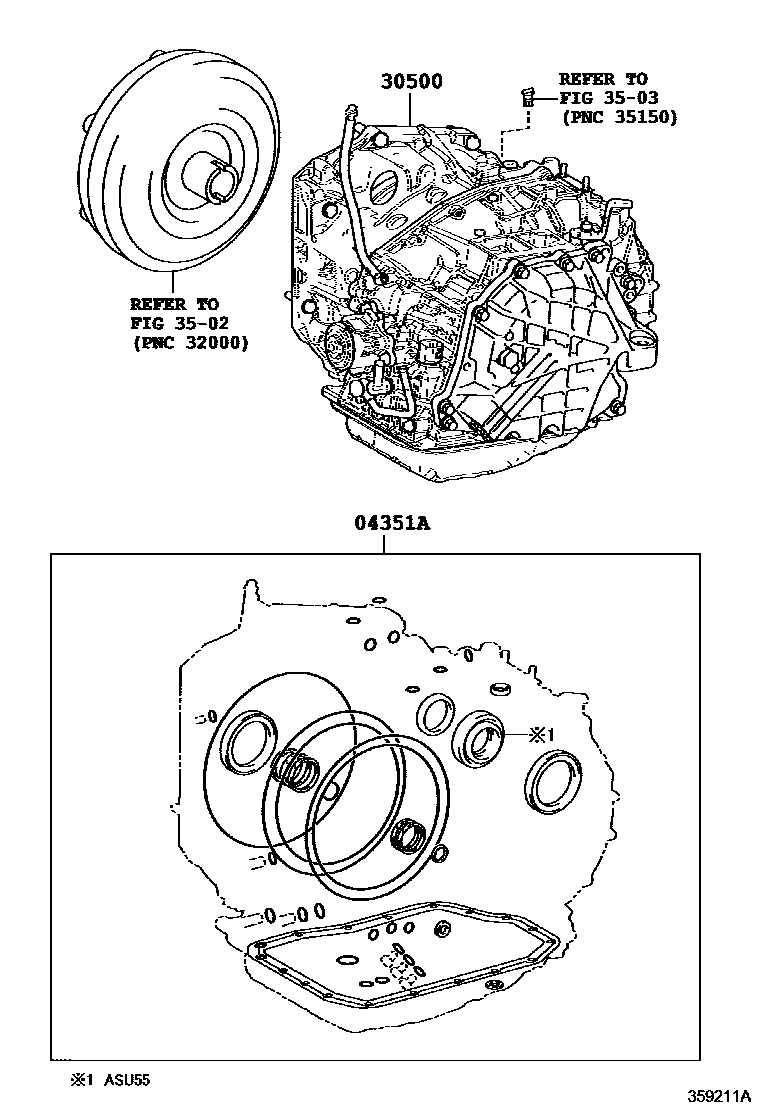

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1U661E,U661F 0002 1U660F

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-28181iGSU55201503-201710

main04351-48242iASU50201811

main04351-78010iASU50201503-201803

main04351-78020iASU55201503-201803

main04351-78021iASU55201811

30500TRANSAXLE ASSY, AUTOMATIC

main30500-45032iGSU55201503-201710

U660F

main30500-48360iASU50201503-201803

U661E

main30500-48400iASU55201503-201803

U661F

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

4 parts on this diagram · 2 diagrams in section
