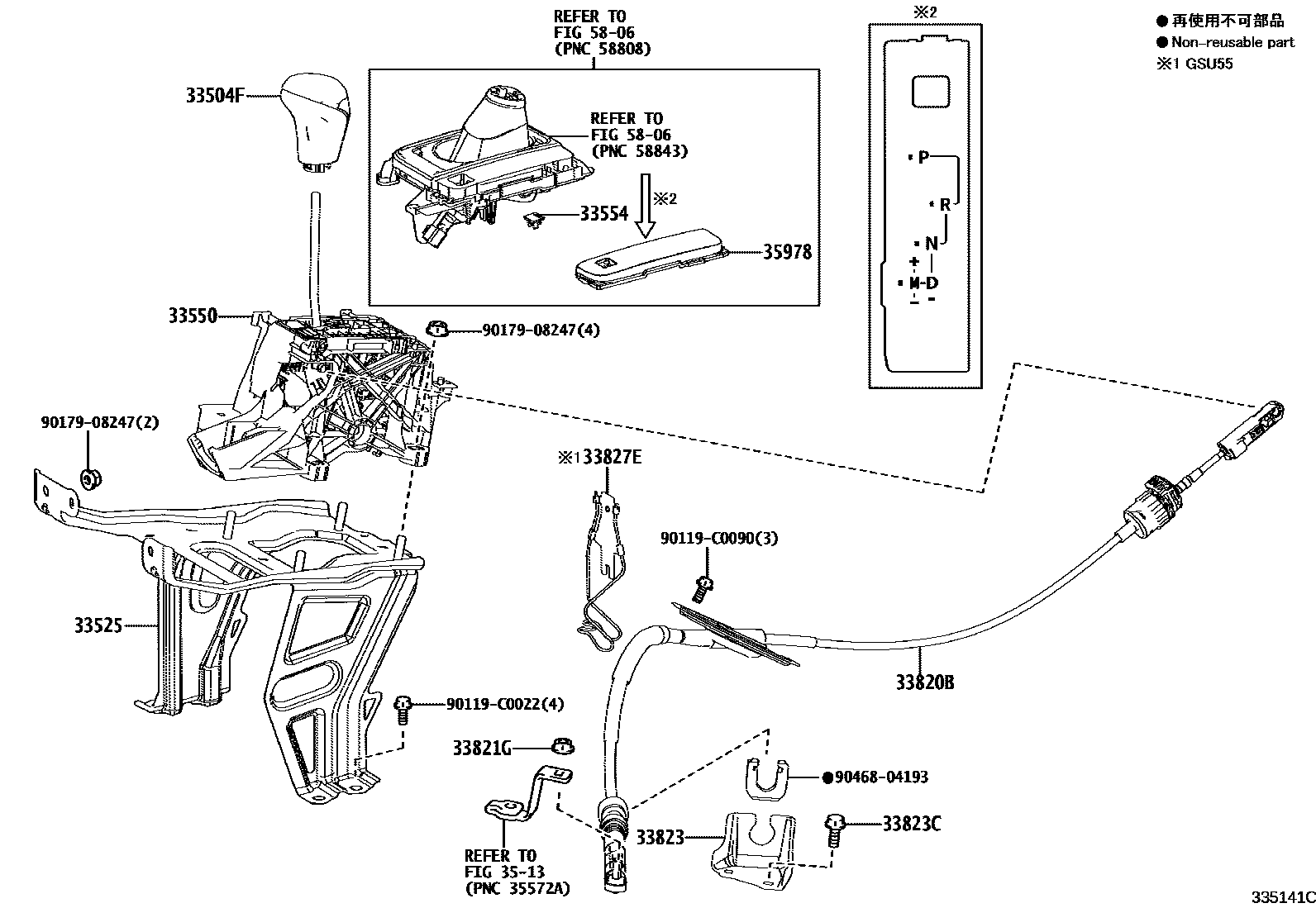

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0E150-C1iASU5#,GSU55..D201503-201803

BLACK,TRIM0#

main33504-0E160-C0iASU5#..LIMD,SPO; ASU55..D201803

SILVER,TRIM0#,2#; SPORT PACKAGE(LEATHER SEAT),SILVER,TRIM0#,2#

33525SUPPORT, SHIFT LEVER

main58123-0E050iGSU55201503-201710

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-0E160iASU5#..D201803

main33550-0E170iASU5#..LIMD,SPO201803

33554CAP, SHIFT LEVER

main33554-0E100iGSU55201503-201710

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0E130iGSU55201503-201710

main33820-0E140iASU5#201503-201803

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-C0013iGSU55201503-201710

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-0E040iGSU55201503-201710

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-C0212×2iGSU55201503-201710

33827EBRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33827-48030iGSU55201503-201710

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35978INDICATOR, SHIFT POSITION

main35978-0E040iGSU55201503-201710

main35978-0E050iASU5#201503-201803

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

90119C0022

main90119-C0022

90119C0090

main90119-C0090

9017908247

main90179-08247

9046804193

main90468-04193

16 parts on this diagram · 1 diagram in section
