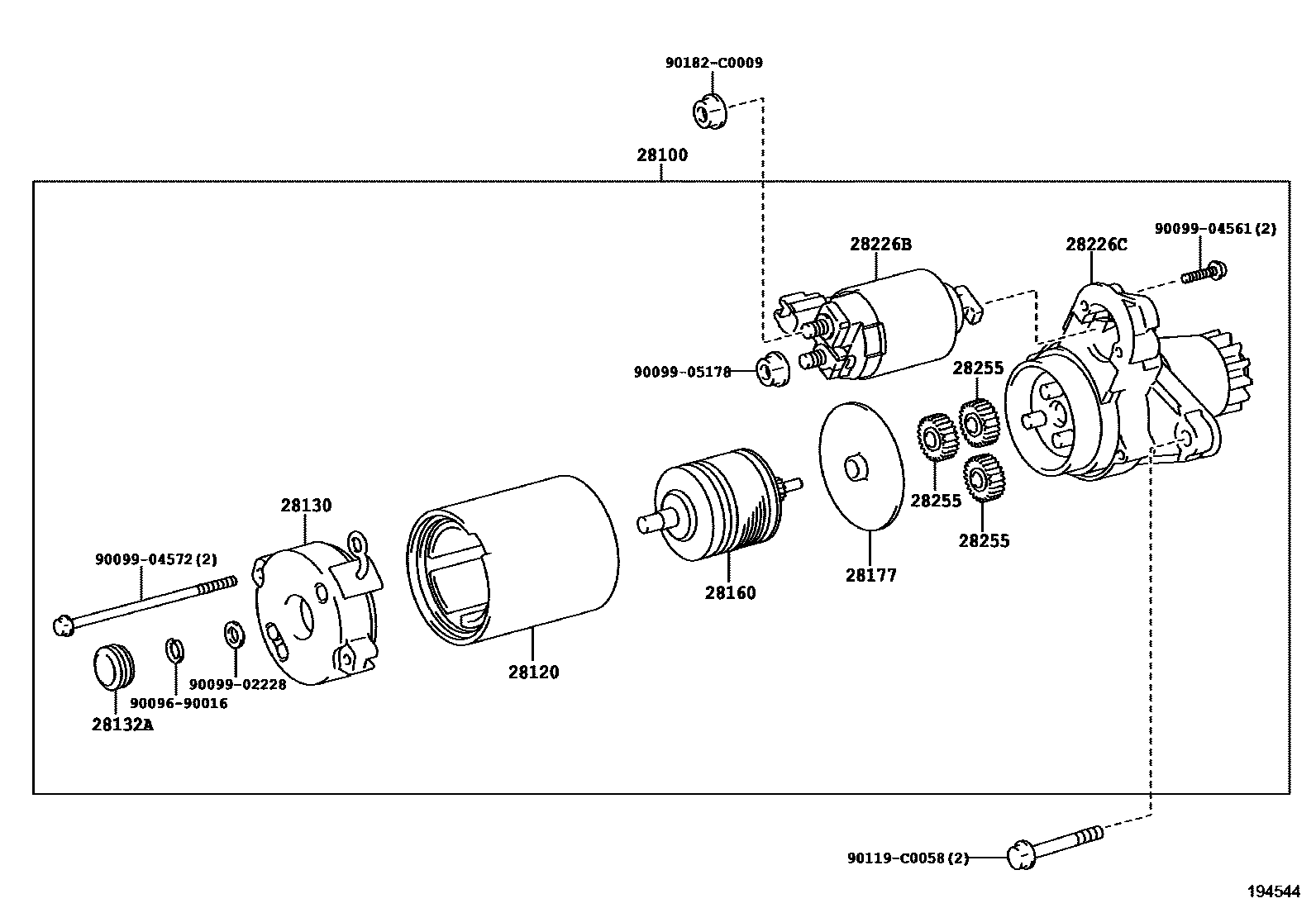

STARTER

0001 112V 1.7KW 0002 112V 1.7KW

28100STARTER ASSY

main28100-0H080i2GRFE..GSU55201503-201710

12V 1.7KW

main28100-0V020i8ARFTS..ASU5#201503-201803

12V 1.7KW

main28100-0V021i8ARFTS..ASU5#201902

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-0H120i2GRFE..GSU55201503-201710

main28120-0V020i8ARFTS..ASU5#201503-201803

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0H120i2GRFE..GSU55201503-201710

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2GRFE..GSU55201503-201710

28160ARMATURE ASSY, STARTER

main28160-0S050i8ARFTS..ASU5#201803

main28160-28040i2GRFE..GSU55201503-201710

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2GRFE..GSU55201503-201710

28226BSTARTER KIT, REPAIR SERVICE

main28226-28051i2GRFE..GSU55201503-201710

main28226-31100i8ARFTS..ASU5#201503-201803

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-0V020i8ARFTS..ASU5#201503-201803

main28226-28041i2GRFE..GSU55201503-201710

28255GEAR, PLANET

main28255-20020×3i2GRFE..GSU55201503-201710

9009690016

main90096-90016

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

90119C0058

main90119-C0058

90182C0009

main90182-C0009

16 parts on this diagram · 2 diagrams in section
