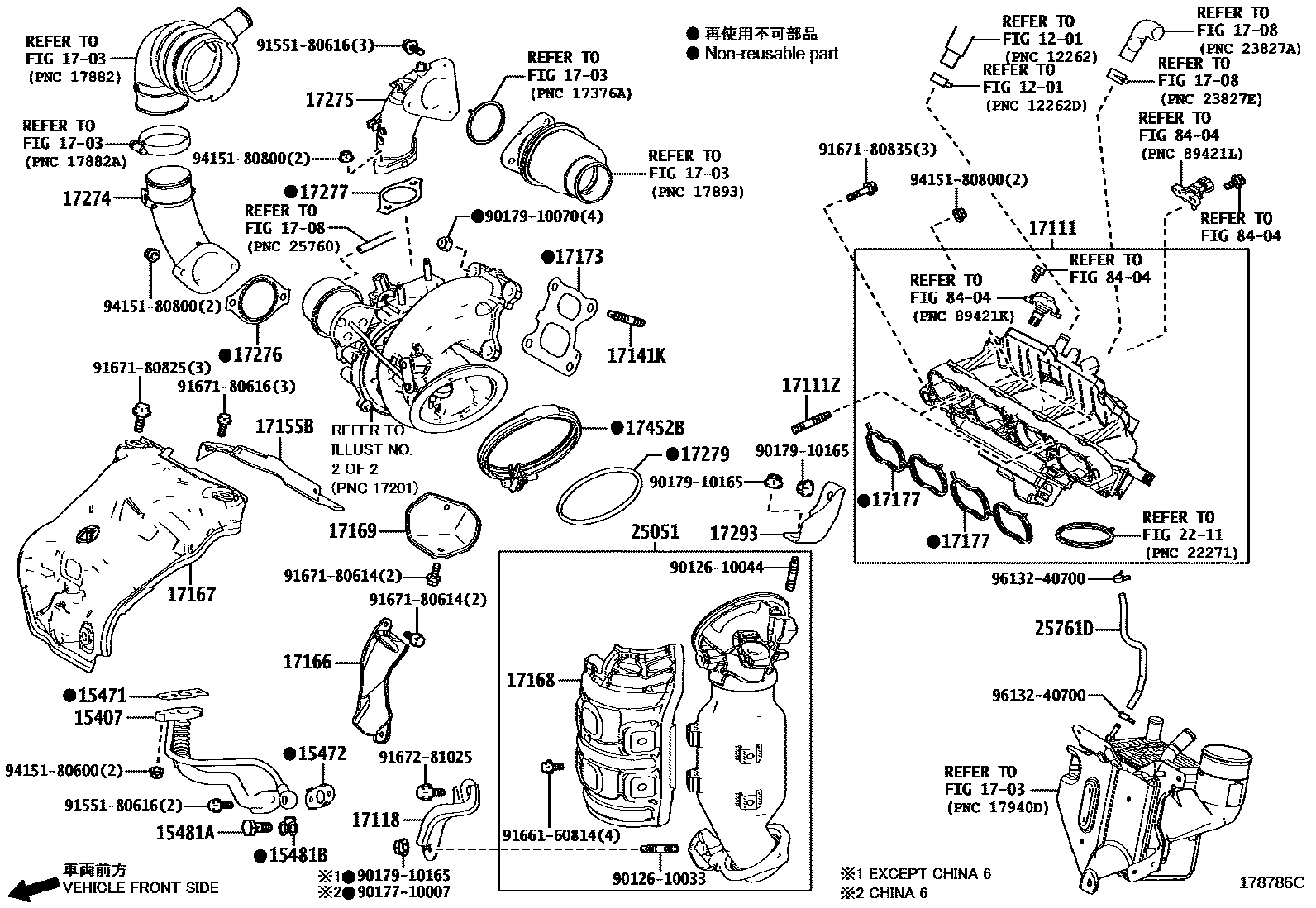

MANIFOLD
1201
15407PIPE SUB-ASSY, TURBO OIL INLET
15471GASKET, TURBO OIL INLET
15472GASKET, TURBO OIL OUTLET, NO.1
15481ABOLT, UNION, NO.1
15481BGASKET(FOR UNION BOLT NO.1)
1703
1708
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17141KBOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17155BINSULATOR, EXHAUST MANIFOLD HEAT, NO.5
17166INSULATOR, EXHAUST MANIFOLD HEAT,NO.4
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17274ELBOW, COMPRESSOR INLET
17275ELBOW, COMPRESSOR OUTLET
17276GASKET, COMPRESSOR INLET
17277GASKET, COMPRESSOR OUTLET
17279GASKET, TURBINE OUTLET ELBOW
17452BCLAMP, EXHAUST PIPE
2211
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*114=TOYOTA/36250/Y
25761DHOSE, VACCUM TRANSMITTING, NO.1
8404
9012610033
main90126-10033
9012610044
main90126-10044
9017710007
main90177-10007
9017910070
main90179-10070
9017910165
main90179-10165
9155180616
main91551-80616
9166160814
main91661-60814
9167180614
main91671-80614
9167180616
main91671-80616
9167180825
main91671-80825
9167180835
main91671-80835
9167281025
main91672-81025
9415180600
main94151-80600
9415180800
main94151-80800
9613240700
main96132-40700
45 parts on this diagram · 3 diagrams in section
