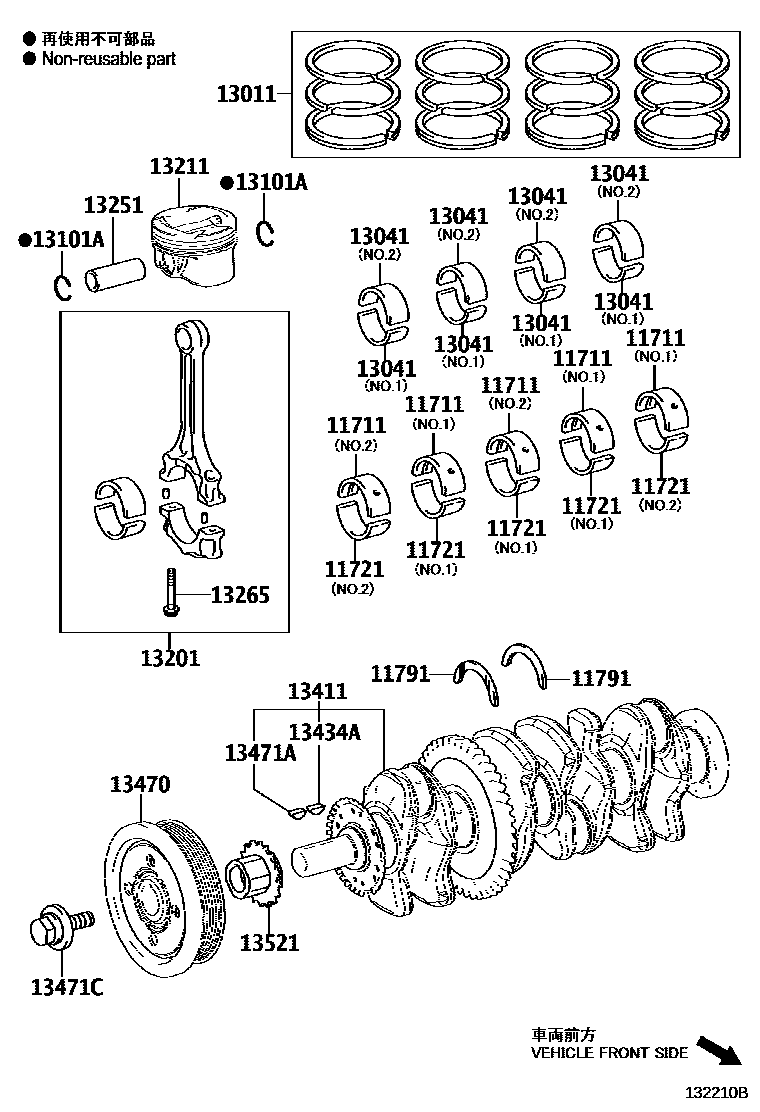

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 5,NO.1,REFER R/M
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
11721BEARING, CRANKSHAFT, NO.2
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
13011RING SET, PISTON
STD
STD
STD
STD
13041BEARING, CONNECTING ROD
MARK 1
MARK 2
MARK 3
MARK 4
MARK 1
MARK 2
MARK 3
MARK 4
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,MARK A
STD,MARK B
STD,MARK C
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A
MARK B
MARK C
MARK A,REFER R/M
MARK B,REFER R/M
MARK C,REFER R/M
MARK A
MARK B
MARK C
MARK A,REFER R/M
MARK B,REFER R/M
MARK C,REFER R/M
13211PISTON
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13251PIN, PISTON
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13265BOLT, CONNECTING ROD
13411CRANKSHAFT
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13470PULLEY ASSY, CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
