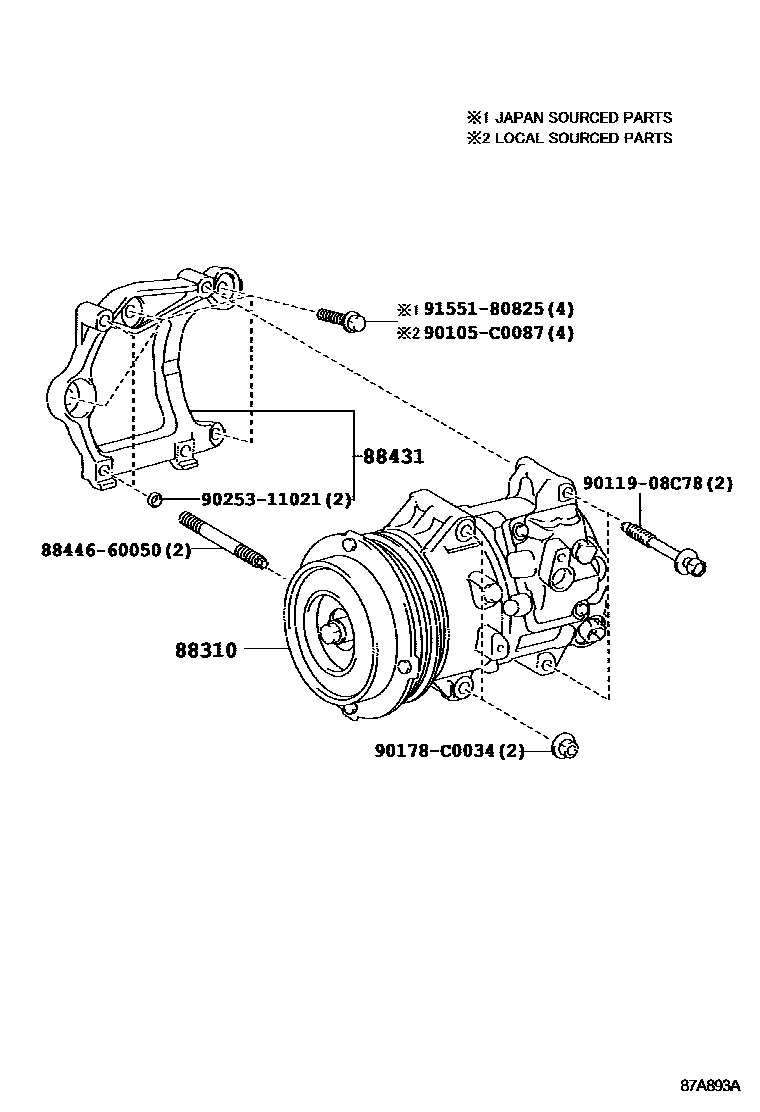

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-0E050iASU40200905-201205

main88310-0E060iASU40..D,SPO200905-201205

WITHOUT(REAR NO.2 SEAT)

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-0V050iASU40201212

(L)

main12502-36010iASU40201205-201212

8844660050BOLT, IDLE PULLEY

main88446-60050

90105C0087

main90105-C0087

9011908C78

main90119-08C78

90178C0034

main90178-C0034

9025311021

main90253-11021

9155180825

main91551-80825

8 parts on this diagram · 3 diagrams in section
