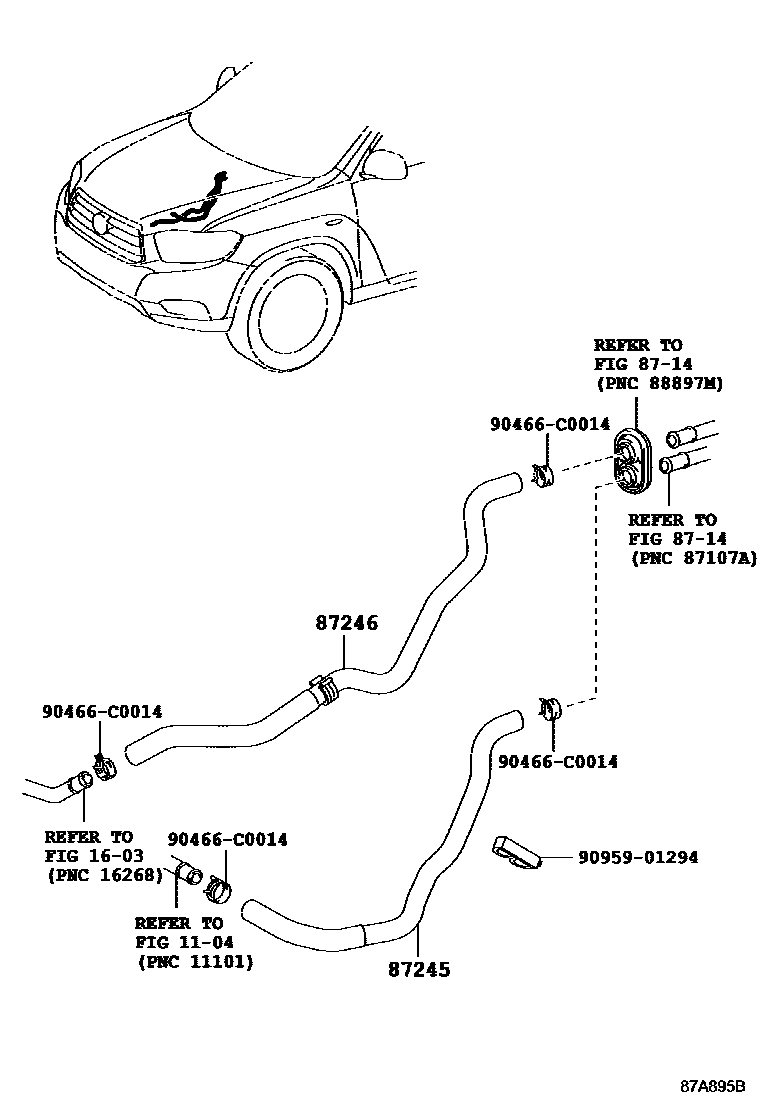

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT---W(REAR HEATER) 0003 1FRONT 0004 1REAR

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-0E020iGSU45200905-201112

main87209-0E021iGSU45201205

main87209-0E050iASU40200905-201112

main87209-0E051iASU40201112-201205

main87245-0E070iASU40..D,SPO200905-201205

WITHOUT(REAR NO.2 SEAT)

87246HOSE, HEATER WATER, OUTLET

main87209-0E030iGSU45200905-201112

main87209-0E031iGSU45201112-201205

main87209-0E060iASU40200905-201112

main87209-0E061iASU40201205

main87245-0E080iASU40..D,SPO200905-201205

WITHOUT(REAR NO.2 SEAT)

90466C0014

main90466-C0014

9095901294

main90959-01294

7 parts on this diagram · 4 diagrams in section
