AIR BAG

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33021iASU40,GSU45201205

89170SENSOR ASSY, AIRBAG

main89170-0E040iASU40,GSU45200905-201106

main89170-0E080iASU40,GSU45201205

main89170-0E090iASU40,GSU45201107-201205

89173ASENSOR, AIRBAG, FRONT RH

main89173-09790iASU40,GSU45201108-201205

main89173-09791iASU40,GSU45201205

main89173-09890iASU40,GSU45201107-201108

89174ASENSOR, AIRBAG, FRONT LH

main89173-09790iASU40,GSU45200905-201107

main89173-09791iASU40,GSU45201205

main89173-09890iASU40,GSU45201107-201108

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33050iASU40,GSU45200905-201205

89833SENSOR, AIRBAG, REAR RH

main89831-0E040iASU40,GSU45200905-201009

main89831-0E090iASU40,GSU45201010-201205

main89831-0P040iASU40,GSU45201205

89834SENSOR, AIRBAG, REAR LH

main89831-0E040iASU40,GSU45200905-201009

main89831-0E090iASU40,GSU45201010-201205

main89831-0P040iASU40,GSU45201205

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0E060iASU40,GSU45200905-201009

main89831-0E080iASU40,GSU45201010-201205

main89831-0P040iASU40,GSU45201205

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0E060iASU40,GSU45200905-201009

main89831-0E080iASU40,GSU45201010-201205

main89831-0P040iASU40,GSU45201205

90105C0003

main90105-C0003

90105C0055

main90105-C0055

90119C0184

main90119-C0184

9418560600

main94185-60600

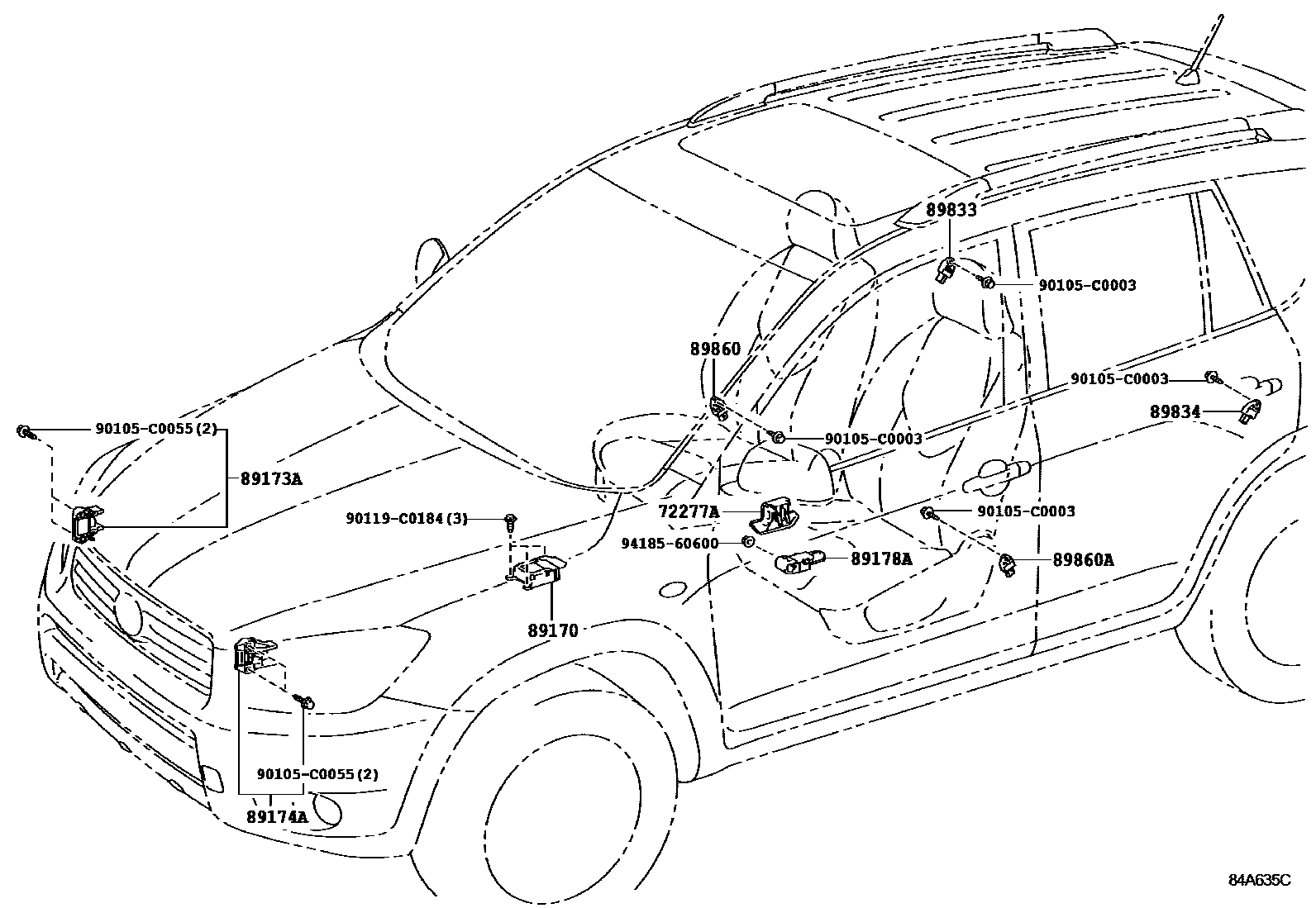

13 parts on this diagram · 1 diagram in section
