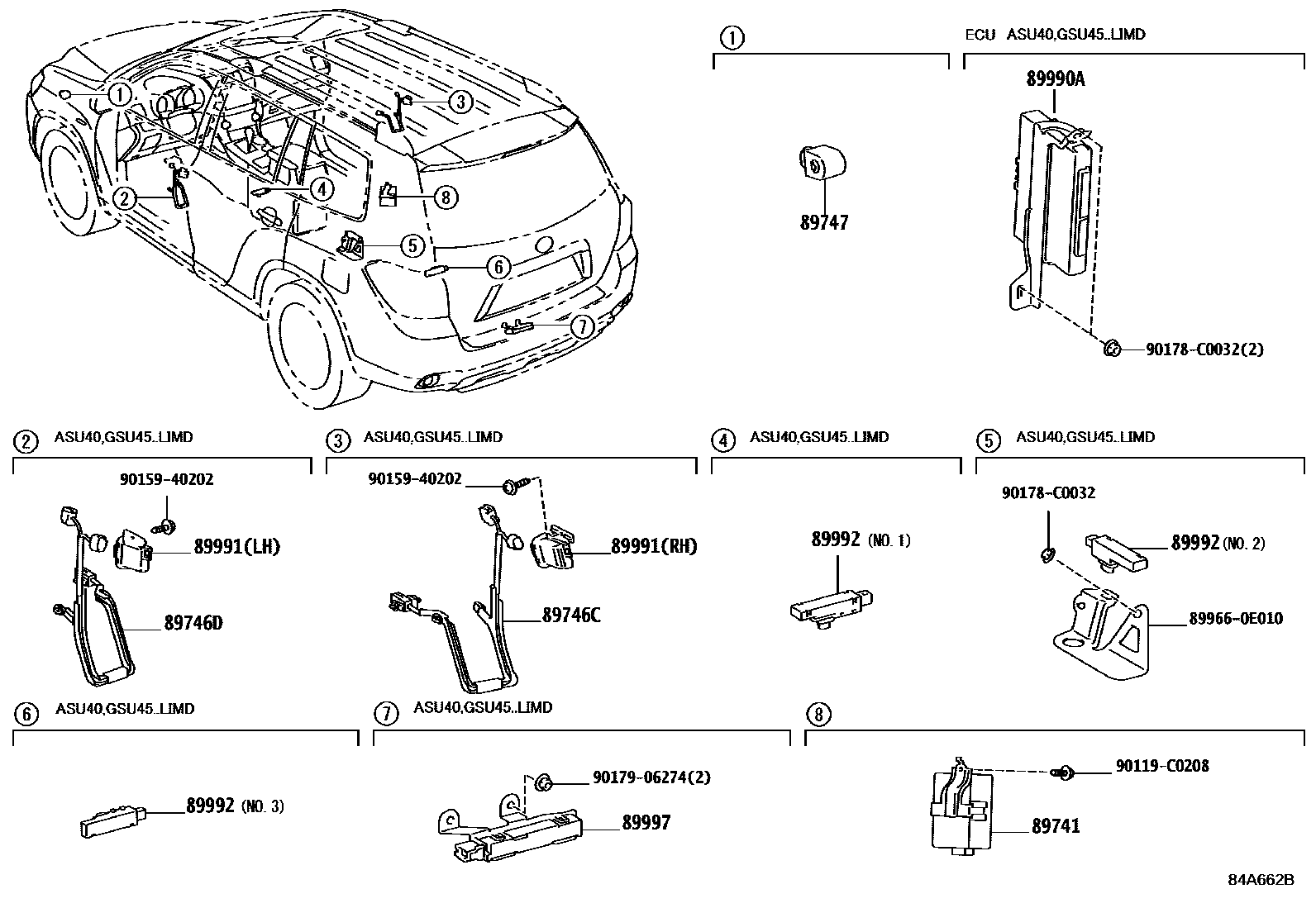

WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-0E020iASU40,GSU45..LIMD200905-201205

main89741-0E060iASU40,GSU45..D,SPO200905-201205

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-0E010iASU40,GSU45..LIMD201205

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-0E020iASU40,GSU45..LIMD200905-201205

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010iASU40,GSU45200905-201205

89990ACOMPUTER ASSY, SMART KEY

main89990-0E020iASU40,GSU45..LIMD200905-201111

main89990-0E021iASU40,GSU45..LIMD201112-201205

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-30040iASU40,GSU45..LIMD201205-201503

RH

main89991-30050iASU40,GSU45..LIMD200905-201205

LH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-0D040iASU40,GSU45..LIMD201205

NO.1

main89992-0E040×2iASU40,GSU45..LIMD200905-201205

NO.2 & NO.3

89997ANTENNA, ELECTRICAL KEY

main89997-48020iASU40,GSU45..LIMD200905-201205

899660E010BRACKET, OSCILLATOR ELECTRICAL KEY

main89966-0E010

90119C0208

main90119-C0208

9015940202

main90159-40202

90178C0032

main90178-C0032

9017906274

main90179-06274

13 parts on this diagram · 1 diagram in section
