Toyota 522320 — ELECTRONIC FUEL INJECTION SYSTEM

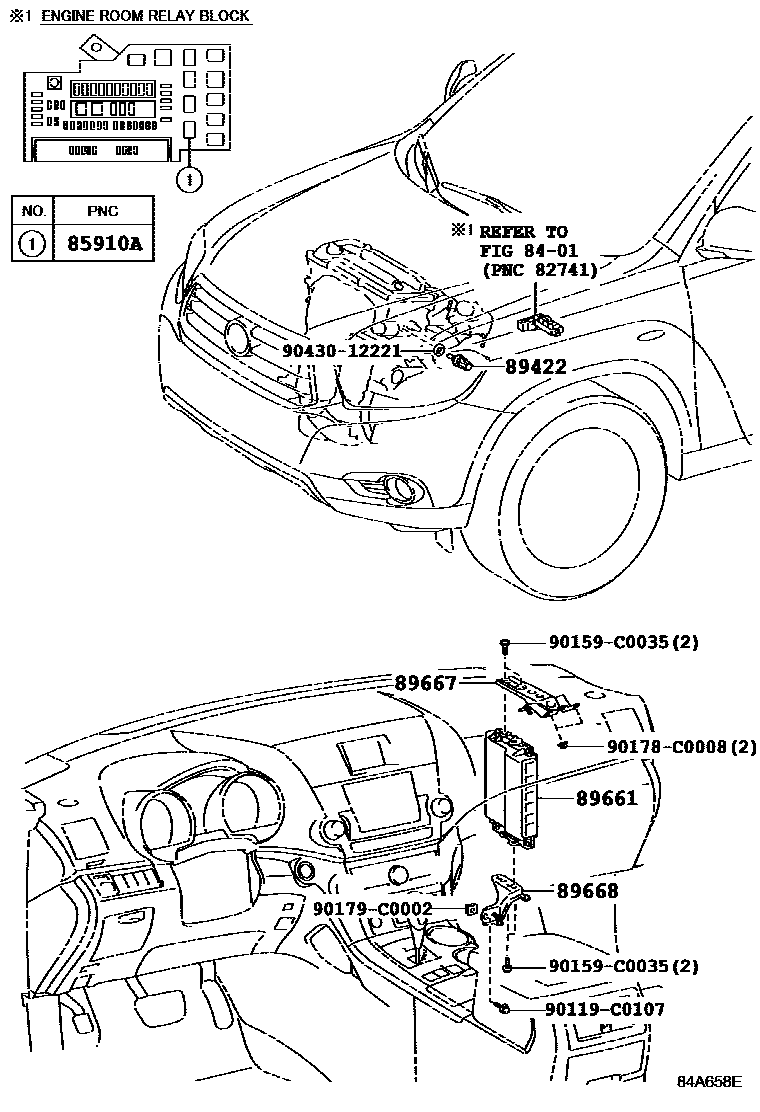

Parts diagram

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

89661COMPUTER, ENGINE CONTROL

89667BRACKET, ENGINE CONTROL COMPUTER

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

90119C0107

90159C0035

90178C0008

90179C0002

9043012221

11 parts on this diagram · 3 diagrams in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota 522320

This section contains 14 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota 522320. Key components include: RELAY ASSY, FUEL PUMP, SWITCH & RELAY & COMPUTER, RELAY ASSY, CIRCUIT OPENING (FOR EFI), SENSOR, WATER TEMPERATURE (FOR E.F.I.), COMPUTER, ENGINE CONTROL.
