BATTERY & BATTERY CABLE

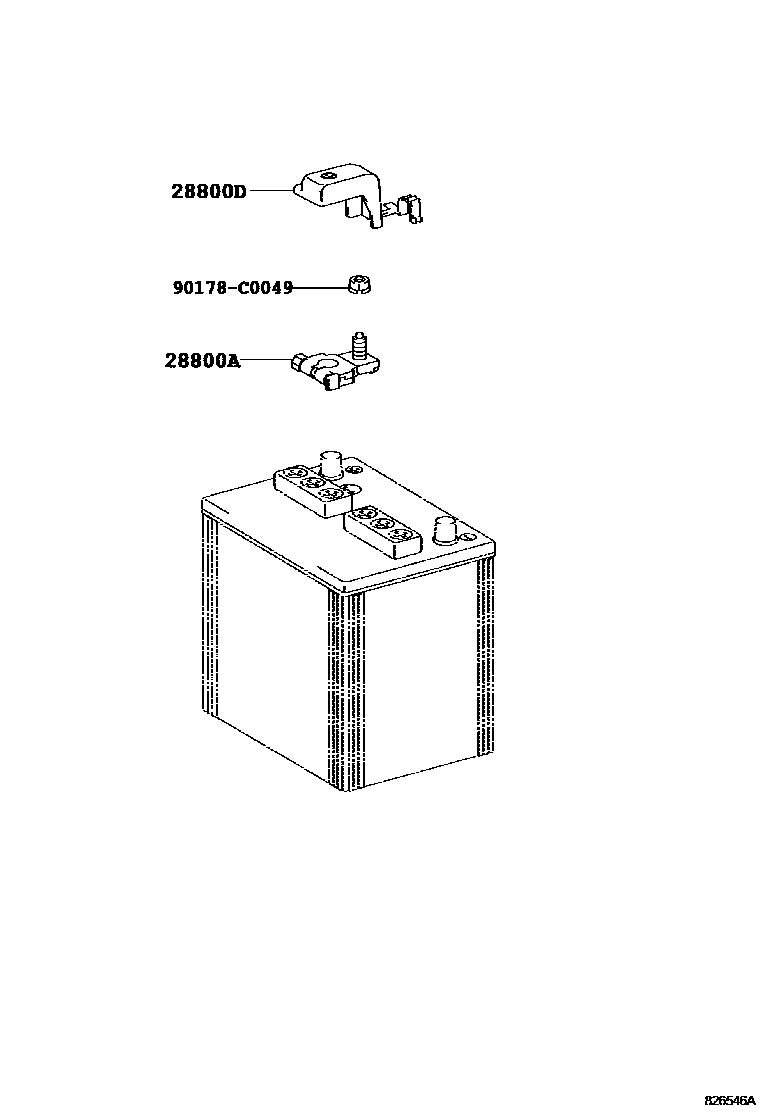

Parts diagram

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i200905-200908

main90982-05061i200909-201205

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-48020i200905-201205

90178C0049

main90178-C0049

3 parts on this diagram · 1 diagram in section
