FOG LAMP

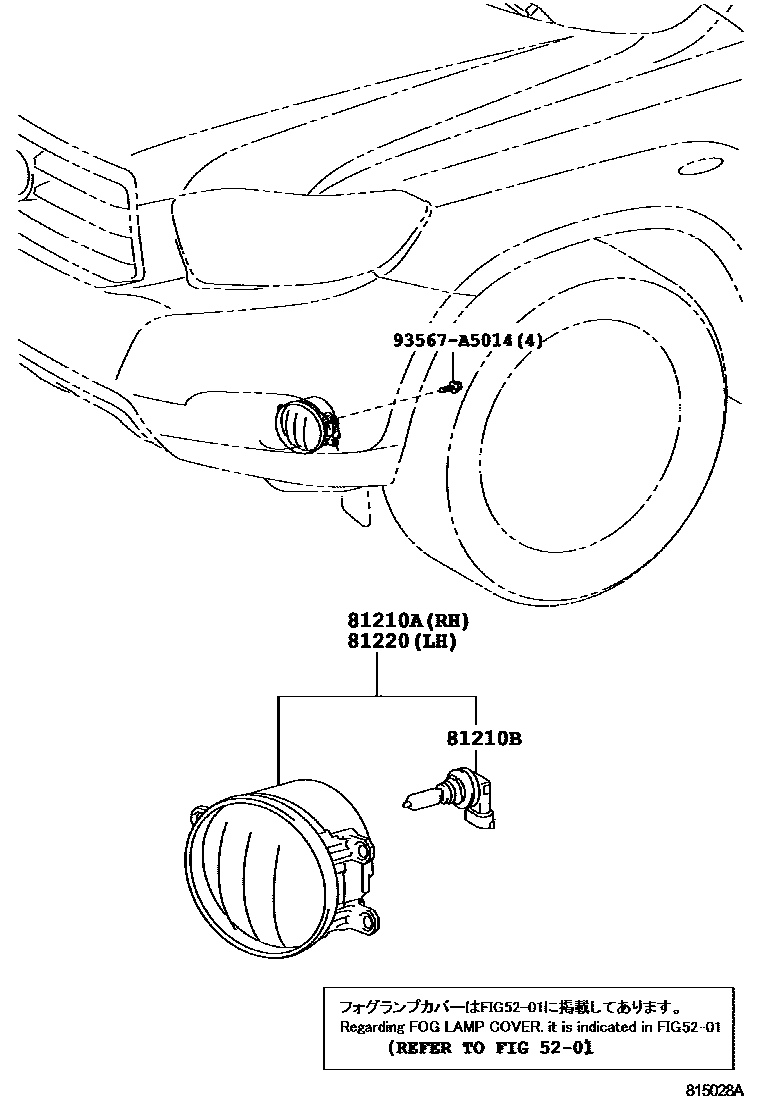

Parts diagram

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-06052i200905-201205

main81210-0E022i201205-201503

81210BBULB, FOG LAMP

main90981-13075×2i200905-201205

12V 55W,HALOGEN

main90981-AD011×2i201205

12V 26W

81220LAMP ASSY, FOG, LH

main81210-0E022i201205-201503

main81220-06052i200905-201205

93567A5014

main93567-A5014

5 parts on this diagram · 2 diagrams in section
