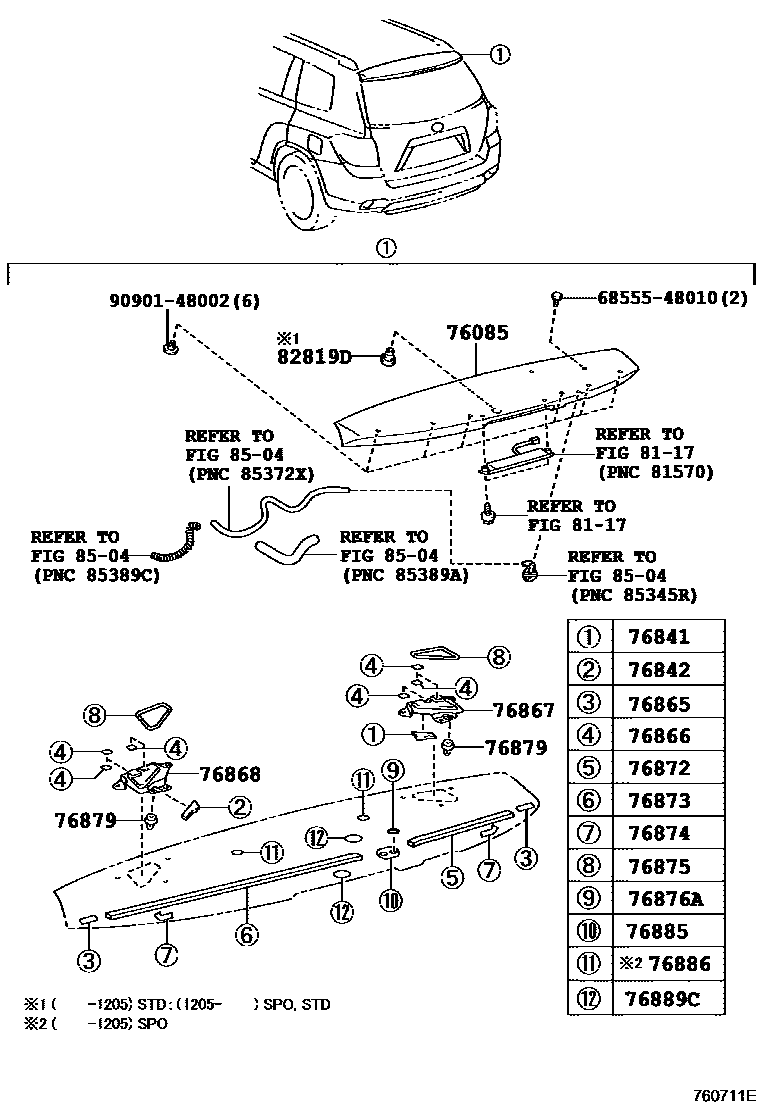

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-0E080iASU40,GSU45..D,LIMD200905-201205

PAINT REQ.

main76085-0E090iASU40,GSU45..SPO200905-201205

PAINT REQ.

76841PROTECTOR, REAR SPOILER SIDE, NO.5 RH

main76841-0E010iASU40,GSU45200905-201205

76842PROTECTOR, REAR SPOILER SIDE, NO.5 LH

main76842-0E010iASU40,GSU45200905-201205

76865RETAINER, REAR SPOILER, NO.1

main76865-0E010iASU40,GSU45200905-201205

76866RETAINER, REAR SPOILER, NO.2

main76866-0E010iASU40,GSU45200905-201205

76867RETAINER, REAR SPOILER SIDE, RH

main76867-0E010iASU40,GSU45200905-201205

76868RETAINER, REAR SPOILER SIDE, LH

main76868-0E010iASU40,GSU45200905-201205

76872PROTECTOR, REAR SPOILER, NO.1

main76872-0E020iASU40,GSU45200905-201205

76873PROTECTOR, REAR SPOILER, NO.2

main76873-0E030iASU40,GSU45200905-201205

76874PROTECTOR, REAR SPOILER, NO.3

main76874-0E020iASU40,GSU45200905-201205

76875PROTECTOR, REAR SPOILER, NO.4

main76875-0E040iASU40,GSU45200905-201205

76876APROTECTOR, REAR SPOILER, NO.10

main76876-0E040iASU40,GSU45..D,LIMD200905-201205

main76876-0E050iASU40,GSU45..SPO200905-201205

76879CLIP, REAR SPOILER, NO.1

main76879-0E030iASU40,GSU45200905-201205

76885RETAINER, REAR SPOILER, NO.5

main76885-0E020iASU40,GSU45..D,LIMD200905-201205

main76885-0E030iASU40,GSU45..SPO200905-201205

76886RETAINER, REAR SPOILER, NO.6

main76886-0E010iASU40,GSU45..SPO200905-201205

76889CADHESIVE, REAR SPOILER

main76889-0E020iASU40,GSU45200905-201205

8117CENTER STOP LAMP

→ Go to FIG 81-17

82819DGROMMET, WIRING HARNESS

main82819-0E010iASU40,GSU45..D200905-201205

8504REAR WASHER

→ Go to FIG 85-04

6855548010BOLT, DOOR STAY

main68555-48010

9090148002

main90901-48002

21 parts on this diagram · 1 diagram in section
