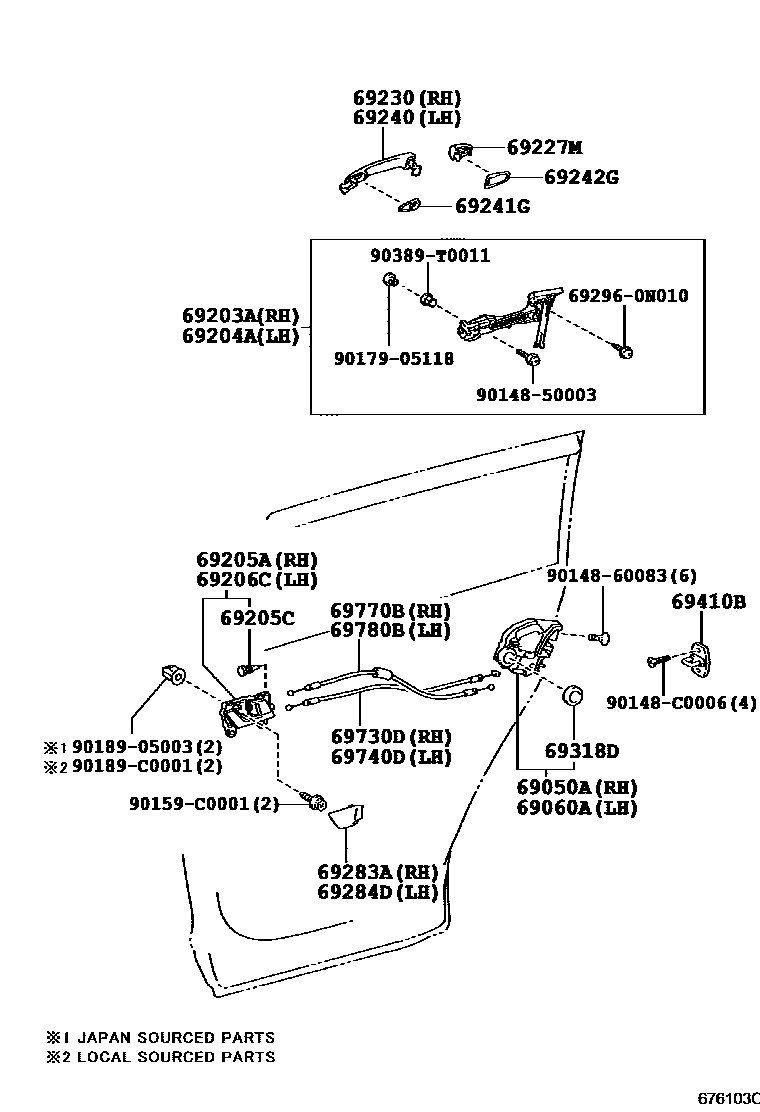

REAR DOOR LOCK & HANDLE

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-06111iASU40,GSU45201205

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-06111iASU40,GSU45200905-201205

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0E040iASU40,GSU45200905-201205

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0E040iASU40,GSU45201205

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-0E020-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main69205-0E020-E0iASU40,GSU45200905-201205

DK. BROWN,TRIM4#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main47131-0E010×2iASU40,GSU45200905-201205

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-0E020-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main69206-0E020-E0iASU40,GSU45201205-201503

DK. BROWN,TRIM4#

69227MCOVER, REAR DOOR OUTSIDE HANDLE

main69207-0N010-A1×2iASU40,GSU45..LIMD201205-201503

WHITE PEARL CS.,070

main69207-0N010-B2×2iASU40,GSU45..LIMD201205-201503

SILVER ME.,1D4

main69207-0N010-B3×2iASU40,GSU45..LIMD200905-201205

GRAY ME.,1G3

main69207-0N010-C0×2iASU40,GSU45..LIMD201205-201503

BLACK,202

main69207-0N010-D2×2iASU40,GSU45..LIMD201310-201503

RED M.M.,3R3

main69207-0N010-E2×2iASU40,GSU45..LIMD201205-201503

BEIGE ME.,4T8

main69207-0N010-G1×2iASU40,GSU45..LIMD201111-201205

GREEN M.M.,6V2

main69207-0N010-J1×2iASU40,GSU45..LIMD200905-201205

DK.BLUE MC.,8S6

main69227-0E050-A0×2iASU40,GSU45..D,SPO200905-201205

WHITE PEARL CS.,070

main69227-0E050-B1×2iASU40,GSU45..D,SPO200905-201205

SILVER ME.,1D4

main69227-0E050-B2×2iASU40,GSU45..D,SPO201205-201503

GRAY ME.,1G3

main69227-0E050-C0×2iASU40,GSU45..D,SPO201205-201503

BLACK,202

main69227-0E050-D1×2iASU40,GSU45..D,SPO201310-201503

RED M.M.,3R3

main69227-0E050-E0×2iASU40,GSU45..D,SPO200905-201205

BEIGE ME.,4T8

main69227-0E050-G0×2iASU40,GSU45..D,SPO201111-201205

GREEN M.M.,6V2

main69227-0E050-J1×2iASU40,GSU45..D,SPO201205-201308

DK.BLUE MC.,8S6

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-0P010-A1iASU40,GSU45..LIMD200905-201205

WHITE PEARL CS.,070

main69210-0P010-B1iASU40,GSU45..LIMD200905-201205

SILVER ME.,1D4

main69210-0P010-B2iASU40,GSU45..LIMD200905-201205

GRAY ME.,1G3

main69210-0P010-C0iASU40,GSU45..LIMD201205-201503

BLACK,202

main69210-0P010-D1iASU40,GSU45..LIMD201310-201503

RED M.M.,3R3

main69210-0P010-E2iASU40,GSU45..LIMD201205-201503

BEIGE ME.,4T8

main69210-0P010-G1iASU40,GSU45..LIMD201205-201503

GREEN M.M.,6V2

main69210-0P010-J1iASU40,GSU45..LIMD200905-201205

DK.BLUE MC.,8S6

main69211-0E020-A0iASU40,GSU45..D,SPO201205-201503

WHITE PEARL CS.,070

main69211-0E020-B1iASU40,GSU45..D,SPO201205-201503

SILVER ME.,1D4

main69211-0E020-B2iASU40,GSU45..D,SPO201205-201503

GRAY ME.,1G3

main69211-0E020-C0iASU40,GSU45..D,SPO200905-201205

BLACK,202

main69211-0E020-D1iASU40,GSU45..D,SPO201310-201503

RED M.M.,3R3

main69211-0E020-E0iASU40,GSU45..D,SPO200905-201205

BEIGE ME.,4T8

main69211-0E020-G0iASU40,GSU45..D,SPO201205-201503

GREEN M.M.,6V2

main69211-0E020-J1iASU40,GSU45..D,SPO200905-201205

DK.BLUE MC.,8S6

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-0P010-A1iASU40,GSU45..LIMD201205-201503

WHITE PEARL CS.,070

main69210-0P010-B1iASU40,GSU45..LIMD201205-201503

SILVER ME.,1D4

main69210-0P010-B2iASU40,GSU45..LIMD200905-201205

GRAY ME.,1G3

main69210-0P010-C0iASU40,GSU45..LIMD200905-201205

BLACK,202

main69210-0P010-D1iASU40,GSU45..LIMD201310-201503

RED M.M.,3R3

main69210-0P010-E2iASU40,GSU45..LIMD201205-201503

BEIGE ME.,4T8

main69210-0P010-G1iASU40,GSU45..LIMD201111-201205

GREEN M.M.,6V2

main69210-0P010-J1iASU40,GSU45..LIMD200905-201205

DK.BLUE MC.,8S6

main69211-0E020-A0iASU40,GSU45..D,SPO200905-201205

WHITE PEARL CS.,070

main69211-0E020-B1iASU40,GSU45..D,SPO201205-201503

SILVER ME.,1D4

main69211-0E020-B2iASU40,GSU45..D,SPO200905-201205

GRAY ME.,1G3

main69211-0E020-C0iASU40,GSU45..D,SPO200905-201205

BLACK,202

main69211-0E020-D1iASU40,GSU45..D,SPO201310-201503

RED M.M.,3R3

main69211-0E020-E0iASU40,GSU45..D,SPO200905-201205

BEIGE ME.,4T8

main69211-0E020-G0iASU40,GSU45..D,SPO201111-201205

GREEN M.M.,6V2

main69211-0E020-J1iASU40,GSU45..D,SPO200905-201205

DK.BLUE MC.,8S6

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-06040×2iASU40,GSU45201205

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-06030×2iASU40,GSU45200905-200907

main69242-06040×2iASU40,GSU45200908-201205

69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH

main69283-0E020iASU40,GSU45200905-201205

69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH

main69284-0E020iASU40,GSU45200905-201205

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iASU40,GSU45200905-201205

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0P010×2iASU40,GSU45200905-201205

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-0E030iASU40,GSU45200905-201205

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-0E030iASU40,GSU45200905-201205

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-0E030iASU40,GSU45200905-201205

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-0E030iASU40,GSU45200905-201205

692960N010SCREW, DOOR INSIDE HANDLE

main69296-0N010

9014850003

main90148-50003

9014860083

main90148-60083

90148C0006

main90148-C0006

90159C0001

main90159-C0001

9017905118

main90179-05118

9018905003

main90189-05003

90189C0001

main90189-C0001

90389T0011

main90389-T0011

29 parts on this diagram · 1 diagram in section
