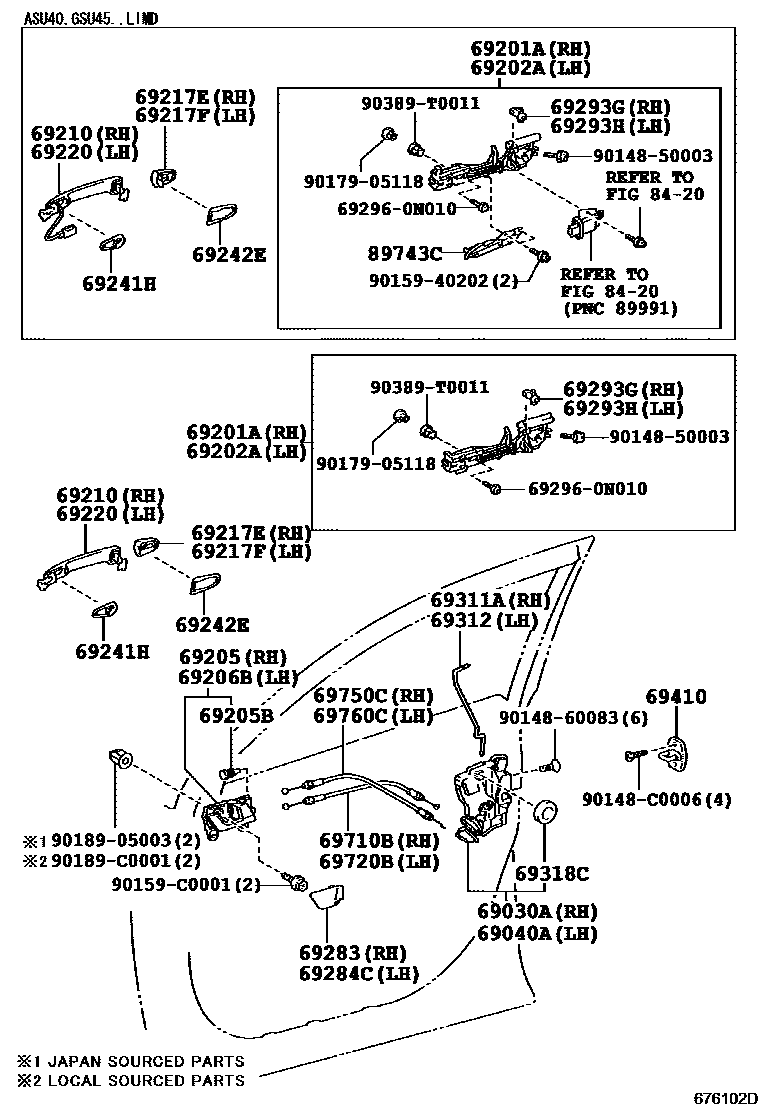

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-06221iASU40,GSU45201205

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-06191iASU40,GSU45200905-201205

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-06060iASU40,GSU45..D,SPO200905-201205

main69201-0E040iASU40,GSU45..LIMD201205

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-06060iASU40,GSU45..D,SPO201205

main69202-0E040iASU40,GSU45..LIMD200905-201205

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0E020-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main69205-0E020-E0iASU40,GSU45201205-201503

DK. BROWN,TRIM4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main47131-0E010×2iASU40,GSU45200905-201205

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0E020-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main69206-0E020-E0iASU40,GSU45201205-201503

DK. BROWN,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-06090-A0iASU40,GSU45..LIMD200905-201205

WHITE PEARL CS.,070

main69210-06090-B0iASU40,GSU45..LIMD201205-201503

SILVER ME.,1D4

main69210-06090-B1iASU40,GSU45..LIMD200905-201205

GRAY ME.,1G3

main69210-06090-C0iASU40,GSU45..LIMD201205-201503

BLACK,202

main69210-06090-D0iASU40,GSU45..LIMD201310-201503

RED M.M.,3R3

main69210-06090-E1iASU40,GSU45..LIMD201205-201503

BEIGE ME.,4T8

main69210-06090-G1iASU40,GSU45..LIMD201205-201503

GREEN M.M.,6V2

main69210-06090-J1iASU40,GSU45..LIMD200905-201205

DK.BLUE MC.,8S6

main69211-0E020-A0iASU40,GSU45..D,SPO200905-201205

WHITE PEARL CS.,070

main69211-0E020-B1iASU40,GSU45..D,SPO201205-201503

SILVER ME.,1D4

main69211-0E020-B2iASU40,GSU45..D,SPO201205-201503

GRAY ME.,1G3

main69211-0E020-C0iASU40,GSU45..D,SPO201205-201503

BLACK,202

main69211-0E020-D1iASU40,GSU45..D,SPO201310-201503

RED M.M.,3R3

main69211-0E020-E0iASU40,GSU45..D,SPO200905-201205

BEIGE ME.,4T8

main69211-0E020-G0iASU40,GSU45..D,SPO201111-201205

GREEN M.M.,6V2

main69211-0E020-J1iASU40,GSU45..D,SPO200905-201205

DK.BLUE MC.,8S6

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-0E060-A0iASU40,GSU45..D,SPO201205-201503

WHITE PEARL CS.,070

main69217-0E060-B1iASU40,GSU45..D,SPO201205-201503

SILVER ME.,1D4

main69217-0E060-B2iASU40,GSU45..D,SPO200905-201205

GRAY ME.,1G3

main69217-0E060-C0iASU40,GSU45..D,SPO201205-201503

BLACK,202

main69217-0E060-D1iASU40,GSU45..D,SPO201310-201503

RED M.M.,3R3

main69217-0E060-E0iASU40,GSU45..D,SPO201205-201503

BEIGE ME.,4T8

main69217-0E060-G0iASU40,GSU45..D,SPO201111-201205

GREEN M.M.,6V2

main69217-0E060-J1iASU40,GSU45..D,SPO200905-201205

DK.BLUE MC.,8S6

main69250-0N020-A1iASU40,GSU45..LIMD200905-201205

WHITE PEARL CS.,070

main69250-0N020-B2iASU40,GSU45..LIMD201205-201503

SILVER ME.,1D4

main69250-0N020-B3iASU40,GSU45..LIMD201205-201503

GRAY ME.,1G3

main69250-0N020-C0iASU40,GSU45..LIMD201205-201503

BLACK,202

main69250-0N020-D2iASU40,GSU45..LIMD201310-201503

RED M.M.,3R3

main69250-0N020-E2iASU40,GSU45..LIMD200905-201205

BEIGE ME.,4T8

main69250-0N020-G1iASU40,GSU45..LIMD201111-201205

GREEN M.M.,6V2

main69250-0N020-J1iASU40,GSU45..LIMD201205-201308

DK.BLUE MC.,8S6

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-0E050-A0iASU40,GSU45..D,SPO201205-201503

WHITE PEARL CS.,070

main69217-0E050-B1iASU40,GSU45..D,SPO201205-201503

SILVER ME.,1D4

main69217-0E050-B2iASU40,GSU45..D,SPO200905-201205

GRAY ME.,1G3

main69217-0E050-C0iASU40,GSU45..D,SPO201205-201503

BLACK,202

main69217-0E050-D1iASU40,GSU45..D,SPO201310-201503

RED M.M.,3R3

main69217-0E050-E0iASU40,GSU45..D,SPO201205-201503

BEIGE ME.,4T8

main69217-0E050-G0iASU40,GSU45..D,SPO201111-201205

GREEN M.M.,6V2

main69217-0E050-J1iASU40,GSU45..D,SPO200905-201205

DK.BLUE MC.,8S6

main69250-0N010-A1iASU40,GSU45..LIMD201205-201503

WHITE PEARL CS.,070

main69250-0N010-B2iASU40,GSU45..LIMD200905-201205

SILVER ME.,1D4

main69250-0N010-B3iASU40,GSU45..LIMD201205-201503

GRAY ME.,1G3

main69250-0N010-C0iASU40,GSU45..LIMD201205-201503

BLACK,202

main69250-0N010-D2iASU40,GSU45..LIMD201310-201503

RED M.M.,3R3

main69250-0N010-E2iASU40,GSU45..LIMD200905-201205

BEIGE ME.,4T8

main69250-0N010-G1iASU40,GSU45..LIMD201111-201205

GREEN M.M.,6V2

main69250-0N010-J1iASU40,GSU45..LIMD200905-201205

DK.BLUE MC.,8S6

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-06090-A0iASU40,GSU45..LIMD201205-201503

WHITE PEARL CS.,070

main69210-06090-B0iASU40,GSU45..LIMD200905-201205

SILVER ME.,1D4

main69210-06090-B1iASU40,GSU45..LIMD200905-201205

GRAY ME.,1G3

main69210-06090-C0iASU40,GSU45..LIMD200905-201205

BLACK,202

main69210-06090-D0iASU40,GSU45..LIMD201310-201503

RED M.M.,3R3

main69210-06090-E1iASU40,GSU45..LIMD200905-201205

BEIGE ME.,4T8

main69210-06090-G1iASU40,GSU45..LIMD201205-201503

GREEN M.M.,6V2

main69210-06090-J1iASU40,GSU45..LIMD200905-201205

DK.BLUE MC.,8S6

main69211-0E020-A0iASU40,GSU45..D,SPO201205-201503

WHITE PEARL CS.,070

main69211-0E020-B1iASU40,GSU45..D,SPO201205-201503

SILVER ME.,1D4

main69211-0E020-B2iASU40,GSU45..D,SPO200905-201205

GRAY ME.,1G3

main69211-0E020-C0iASU40,GSU45..D,SPO200905-201205

BLACK,202

main69211-0E020-D1iASU40,GSU45..D,SPO201310-201503

RED M.M.,3R3

main69211-0E020-E0iASU40,GSU45..D,SPO200905-201205

BEIGE ME.,4T8

main69211-0E020-G0iASU40,GSU45..D,SPO201111-201205

GREEN M.M.,6V2

main69211-0E020-J1iASU40,GSU45..D,SPO201205-201308

DK.BLUE MC.,8S6

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-06040×2iASU40,GSU45201205

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-06030×2iASU40,GSU45200905-200907

main69242-06040×2iASU40,GSU45200908-201205

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-0E020iASU40,GSU45200905-201205

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-0E020iASU40,GSU45200905-201205

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-0D010iASU40,GSU45200905-201205

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-0D020iASU40,GSU45200905-201205

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0E030iASU40,GSU45200905-201205

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0E020iASU40,GSU45201205

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iASU40,GSU45200905-201205

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0P010×2iASU40,GSU45200905-201205

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0E030iASU40,GSU45200905-201205

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0E030iASU40,GSU45200905-201205

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0E030iASU40,GSU45200905-201205

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-0E030iASU40,GSU45200905-201205

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

89743CBRACKET, ELECTRICAL KEY WIRE HARNESS

main89743-0N010iASU40,GSU45..LIMD200905-201205

RH

main89743-0N020iASU40,GSU45..LIMD200905-201205

LH

692960N010SCREW, DOOR INSIDE HANDLE

main69296-0N010

9014850003

main90148-50003

9014860083

main90148-60083

90148C0006

main90148-C0006

9015940202

main90159-40202

90159C0001

main90159-C0001

9017905118

main90179-05118

9018905003

main90189-05003

90189C0001

main90189-C0001

90389T0011

main90389-T0011
