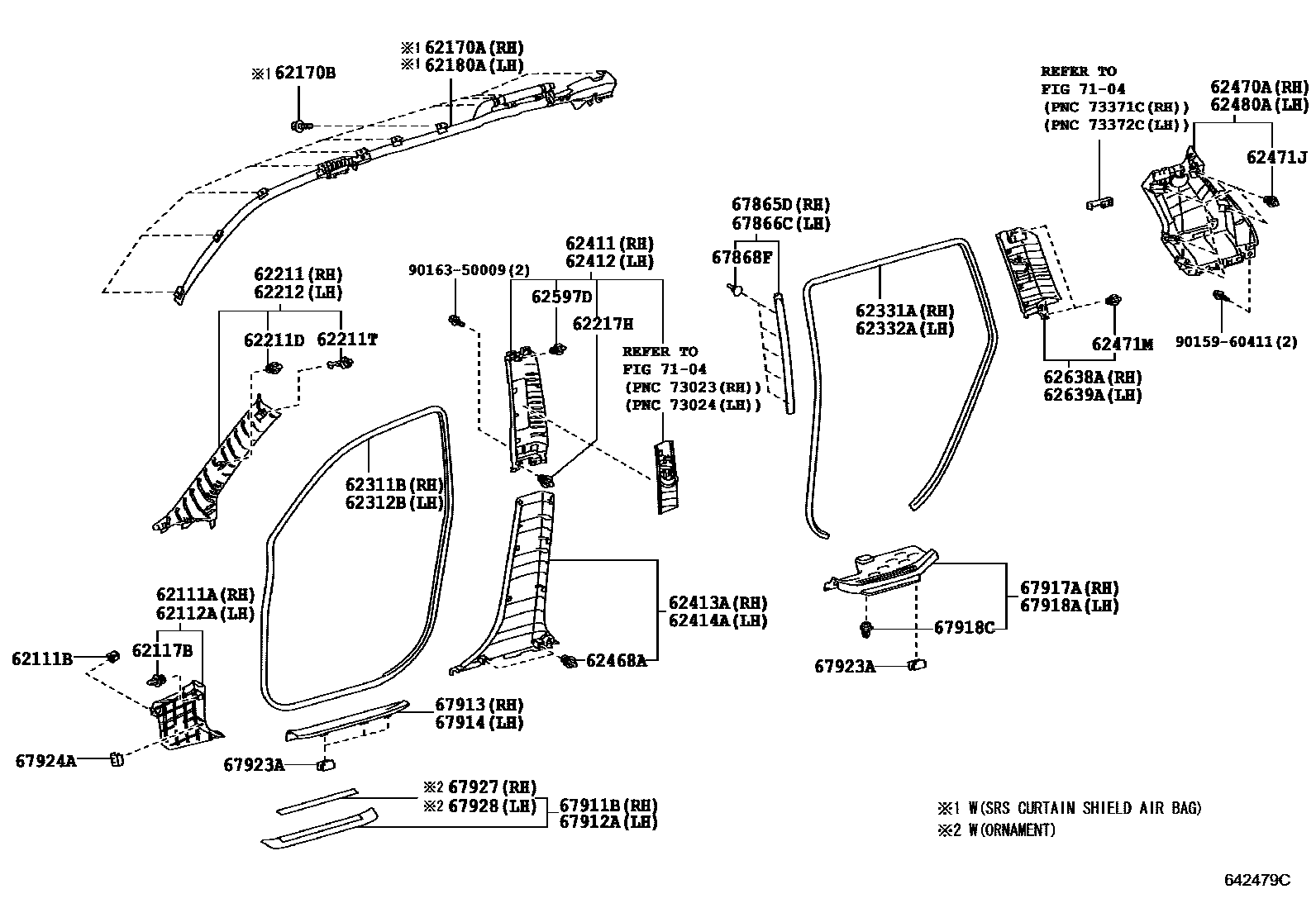

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-0E030-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main62101-0E030-E0iASU40,GSU45201205-201503

SAND BEIGE,TRIM4#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06147×2iASU40,GSU45201205

main90467-06193-C0×2iASU40,GSU45200905-201205

BLACK

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-0E030-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main62102-0E030-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-10161×2iASU40,GSU45200905-201205

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-0E030iASU40,GSU45200905-201205

62170BBOLT, W/WASHER

main90119-06869×22iASU40,GSU45200905-201201

main90159-06001×22iASU40,GSU45201205

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-0E030iASU40,GSU45201205

62211GARNISH, FRONT PILLAR, RH

main62210-0E030-B0iASU40,GSU45..LIMD,SPO201205-201503

GRAY,TRIM2#

main62210-0E030-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10188×2iASU40,GSU45200905-201205

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90950-08005×2iASU40,GSU45200905-201205

62212GARNISH, FRONT PILLAR, LH

main62220-0E030-B0iASU40,GSU45..LIMD,SPO200905-201205

GRAY,TRIM2#

main62220-0E030-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

62217HCLIP, CENTER PILLER GARNISH

main90467-10161×2iASU40,GSU45200905-201205

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-0E030-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main62311-0E030-E0iASU40,GSU45201205-201503

SAND BEIGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-0E030-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main62312-0E030-E0iASU40,GSU45201205-201503

SAND BEIGE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-0E030-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main62331-0E030-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-0E030-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main62332-0E030-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

62411GARNISH, CENTER PILLAR, RH

main62410-0E030-B0iASU40,GSU45..LIMD,SPO201205-201503

GRAY,TRIM2#

main62410-0E030-E0iASU40,GSU45201205-201503

SAND BEIGE,TRIM4#

62412GARNISH, CENTER PILLAR, LH

main62420-0E030-B0iASU40,GSU45..LIMD,SPO200905-201205

GRAY,TRIM2#

main62420-0E030-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-0E030-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main62413-0E030-E0iASU40,GSU45201205-201503

SAND BEIGE,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-0E030-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main62414-0E030-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

62468ACLIP (FOR CENTER PILLAR REAR GARNISH)

main90467-10167×4iASU40,GSU45200905-201205

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-0E090-B0iASU40,GSU45..LIMD,SPO201205-201503

GRAY,TRIM2#

main62470-0E090-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

main62470-0E100-B0iASU40..SPO201205-201503

WITHOUT(REAR NO.2 SEAT),GRAY,TRIM2#

main62470-0E100-E0iASU40..D,SPO200905-201205

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-10161×10iASU40,GSU45200905-201205

62471MCLIP

main90467-10188×4iASU40,GSU45200905-201205

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-0E060-B0iASU40,GSU45..SPO200905-201205

GRAY,TRIM2#

main62480-0E060-E0iASU40,GSU45..D,SPO200905-201205

SAND BEIGE,TRIM4#

main62480-0E070-B0iASU40,GSU45..LIMD200905-201205

GRAY,TRIM2#

main62480-0E070-E0iASU40,GSU45..LIMD201205-201503

SAND BEIGE,TRIM4#

main62480-0E080-B0iASU40..SPO200905-201205

WITHOUT(REAR NO.2 SEAT),GRAY,TRIM2#

main62480-0E080-E0iASU40..D,SPO201205-201503

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

62597DCLIP

main90467-10188×2iASU40,GSU45201205

62638AGARNISH, QUARTER PILLAR, RH

main62638-0E010-B0iASU40,GSU45..LIMD,SPO200905-201205

GRAY,TRIM2#

main62638-0E010-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

62639AGARNISH, QUARTER PILLAR, LH

main62639-0E010-B0iASU40,GSU45..LIMD,SPO201205-201503

GRAY,TRIM2#

main62639-0E010-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

67865DWEATHERSTRIP, CENTER PILLAR UPPER END, RH

main67865-0E020iASU40,GSU45200905-201205

67866CWEATHERSTRIP, CENTER PILLAR UPPER END, LH

main67866-0E020iASU40,GSU45200905-201205

67868FRETAINER, DOOR WEATHERSTRIP, LH

main67867-12150×10iASU40,GSU45200905-201205

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-0E020-E0iASU40,GSU45..D201205-201503

SAND BEIGE,TRIM4#

main67911-0E030-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main67911-0E030-E0iASU40,GSU45..LIMD,SPO201205-201503

SAND BEIGE,TRIM4#

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-0E020-E0iASU40,GSU45..D201205-201503

SAND BEIGE,TRIM4#

main67912-0E030-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main67912-0E030-E0iASU40,GSU45..LIMD,SPO201205-201503

SAND BEIGE,TRIM4#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-0E040-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main67913-0E040-E0iASU40,GSU45201205-201503

SAND BEIGE,TRIM4#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-0E040-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main67914-0E040-E0iASU40,GSU45201205-201503

SAND BEIGE,TRIM4#

67917APLATE, REAR DOOR SCUFF, RH

main67917-0E030-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main67917-0E030-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

67918APLATE, REAR DOOR SCUFF, LH

main67918-0E030-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main67918-0E030-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

67918CCLIP(FOR REAR SCUFF PLATE)

main67921-48050×2iASU40,GSU45200905-201205

YELLOW

main90467-10161×4iASU40,GSU45201205

NATURAL

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-30030×10iASU40,GSU45200905-201205

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67923-30030×2iASU40,GSU45200905-201205

67927ORNAMENT, FRONT DOOR SCUFF, RH

main67927-0E030iASU40,GSU45..LIMD,SPO200905-201205

67928ORNAMENT, FRONT DOOR SCUFF, LH

main67928-0E030iASU40,GSU45..LIMD,SPO200905-201205

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

9015960411

main90159-60411

9016350009

main90163-50009

45 parts on this diagram · 1 diagram in section
