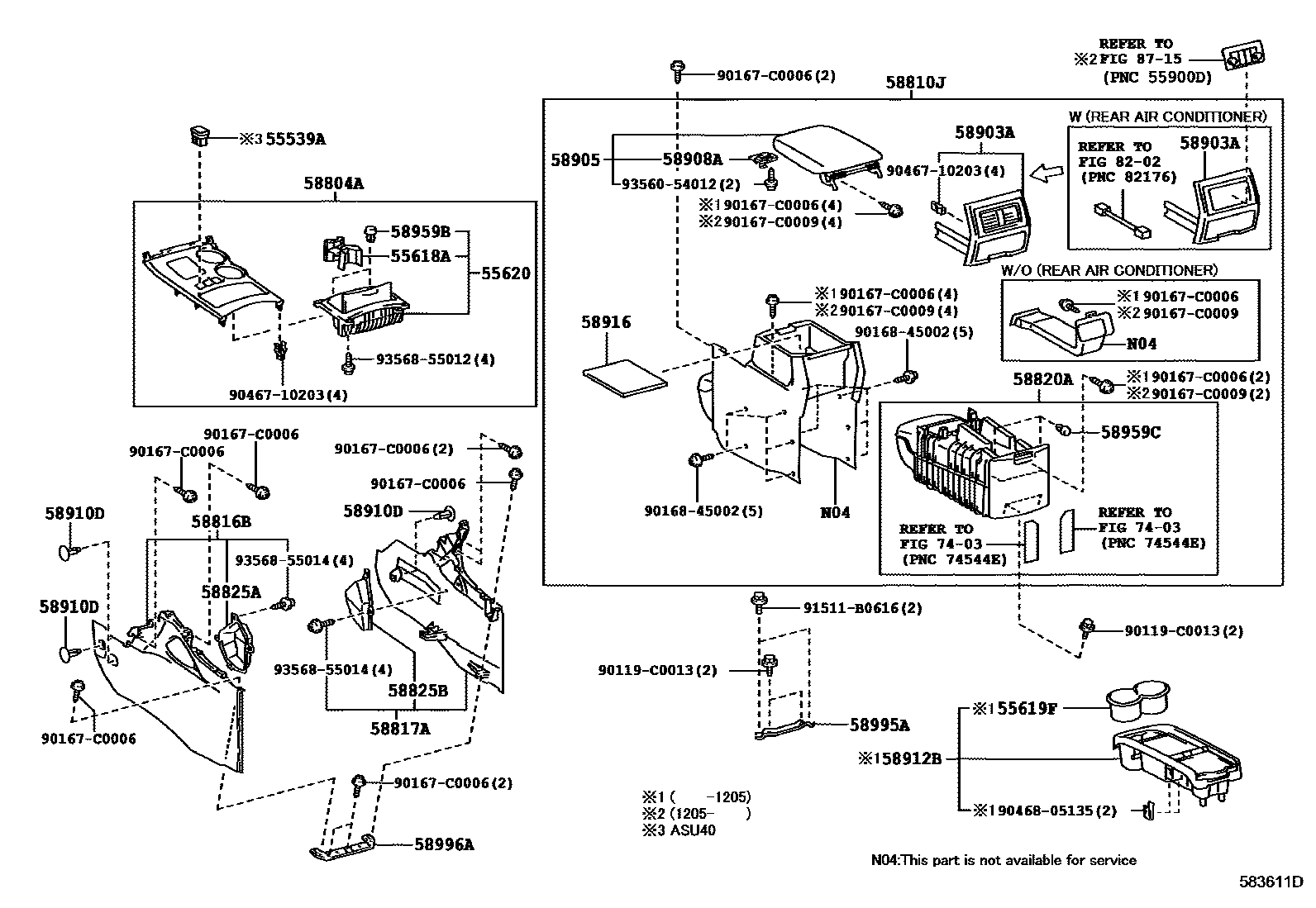

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-0E060iASU40201205

55618AHOLDER, CONSOLE BOX CUP

main55618-0E060iASU40,GSU45201205

55619FHOLDER, CONSOLE BOX CUP, NO.2

main55618-0E070-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main55618-0E070-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-0E020-C0iASU40,GSU45..SPO201205-201503

BLACK,TRIM2#

main55620-0E020-E0iASU40,GSU45..D,SPO201205-201503

SAND BEIGE,TRIM4#

main55620-0E040-C0iASU40,GSU45..SPO200905-201205

BLACK,TRIM2#

main55620-0E040-E0iASU40,GSU45..D,SPO200905-201205

SAND BEIGE,TRIM4#

main55620-0E050-C0iASU40,GSU45..LIMD200905-201205

BLACK,TRIM2#

main55620-0E050-E0iASU40,GSU45..LIMD200905-201205

SAND BEIGE,TRIM4#

main55620-0E110-C0iASU40,GSU45..LIMD201205-201503

BLACK,TRIM2#

main55620-0E110-E0iASU40,GSU45..LIMD201205-201503

SAND BEIGE,TRIM4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0E030-C0iASU40,GSU45..SPO200905-201205

BLACK,TRIM2#

main58804-0E030-E0iASU40,GSU45..D,SPO200905-201205

SAND BEIGE,TRIM4#

main58804-0E040-C0iASU40,GSU45..LIMD200905-201205

BLACK,TRIM2#

main58804-0E040-E0iASU40,GSU45..LIMD200905-201205

SAND BEIGE,TRIM4#

main58804-0E100-C0iASU40,GSU45..SPO201205-201503

BLACK,TRIM2#

main58804-0E100-E0iASU40,GSU45..D,SPO201205-201503

SAND BEIGE,TRIM4#

main58804-0E110-C0iASU40,GSU45..LIMD201205-201503

BLACK,TRIM2#

main58804-0E110-E0iASU40,GSU45..LIMD201205-201503

SAND BEIGE,TRIM4#

58810JBOX ASSY, CONSOLE

main58810-0E070-E0iASU40,GSU45..D200905-201111

SAND BEIGE,TRIM4#

main58810-0E080-C0iASU40,GSU45..LIMD,SPO200905-201111

BLACK,TRIM2#

main58810-0E080-E0iASU40,GSU45..LIMD,SPO200905-201111

SAND BEIGE,TRIM4#

main58810-0E130-E0iASU40,GSU45..D201205-201503

SAND BEIGE,TRIM4#

main58810-0E140-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main58810-0E140-E0iASU40,GSU45..LIMD,SPO201205-201503

SAND BEIGE,TRIM4#

main58810-0E160-E0iASU40,GSU45..D201111-201205

SAND BEIGE,TRIM4#

main58810-0E170-C0iASU40,GSU45..LIMD,SPO201111-201205

BLACK,TRIM2#

main58810-0E170-E0iASU40,GSU45..LIMD,SPO201111-201205

SAND BEIGE,TRIM4#

main58810-0E060-C0iASU40..SPO200905-201111

WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#

main58810-0E060-E0iASU40..D,SPO200905-201111

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

main58810-0E120-C0iASU40..SPO201205-201503

WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#

main58810-0E120-E0iASU40..D,SPO201205-201503

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

main58810-0E150-C0iASU40..SPO201111-201205

WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#

main58810-0E150-E0iASU40..D,SPO201111-201205

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

58816BINSERT, CONSOLE BOX

main58816-0E020-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main58816-0E020-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-0E020-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main58817-0E020-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

58820ABOX ASSY, CONSOLE COMPARTMENT

main58820-0E010-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main58820-0E010-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

main58820-0E030-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main58820-0E030-E0iASU40,GSU45201205-201503

SAND BEIGE,TRIM4#

58825APOCKET, CONSOLE BOX

main58825-0E010-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main58825-0E010-E0iASU40,GSU45201205-201503

SAND BEIGE,TRIM4#

58825BPOCKET, CONSOLE BOX

main58825-0E020-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main58825-0E020-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-0E050-E0iASU40,GSU45..D201205-201503

SAND BEIGE,TRIM4#

main58903-0E060-C0iASU40,GSU45..LIMD,SPO200905-201107

BLACK,TRIM2#

main58903-0E060-E0iASU40,GSU45..LIMD,SPO200905-201107

SAND BEIGE,TRIM4#

main58903-0E061-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main58903-0E061-E0iASU40,GSU45..LIMD,SPO201111-201205

SAND BEIGE,TRIM4#

main58903-0E040-C0iASU40..SPO201205-201503

WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#

main58903-0E040-E0iASU40..D,SPO200905-201205

WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-0E030-C0iASU40,GSU45..LIMD,SPO200905-201111

BLACK,TRIM2#

main58905-0E030-E0iASU40,GSU45200905-201111

SAND BEIGE,TRIM4#

main58905-0E060-C0iASU40,GSU45..LIMD,SPO201205-201503

BLACK,TRIM2#

main58905-0E060-E0iASU40,GSU45201205-201503

SAND BEIGE,TRIM4#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-33030iASU40,GSU45200905-201205

58910DCLIP(FOR CONSOLE BOX)

main90467-06020-C0×3iASU40,GSU45200905-201205

BLACK

58912BBOX, REAR CONSOLE, LOWER

main58912-0E040-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main58912-0E040-E0iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

58916MAT, BOX BOTTOM

main58916-0E010iASU40,GSU45200905-201205

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2iASU40,GSU45200905-201205

58959CCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2iASU40,GSU45200905-201205

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-0E020iASU40,GSU45200905-201205

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0E020iASU40,GSU45200905-201205

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8202WIRING & CLAMP

→ Go to FIG 82-02

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

90119C0013

main90119-C0013

90167C0006

main90167-C0006

90167C0009

main90167-C0009

9016845002

main90168-45002

9046710203

main90467-10203

9046805135

main90468-05135

91511B0616

main91511-B0616

9356054012

main93560-54012

9356855012

main93568-55012

9356855014

main93568-55014

34 parts on this diagram · 1 diagram in section
