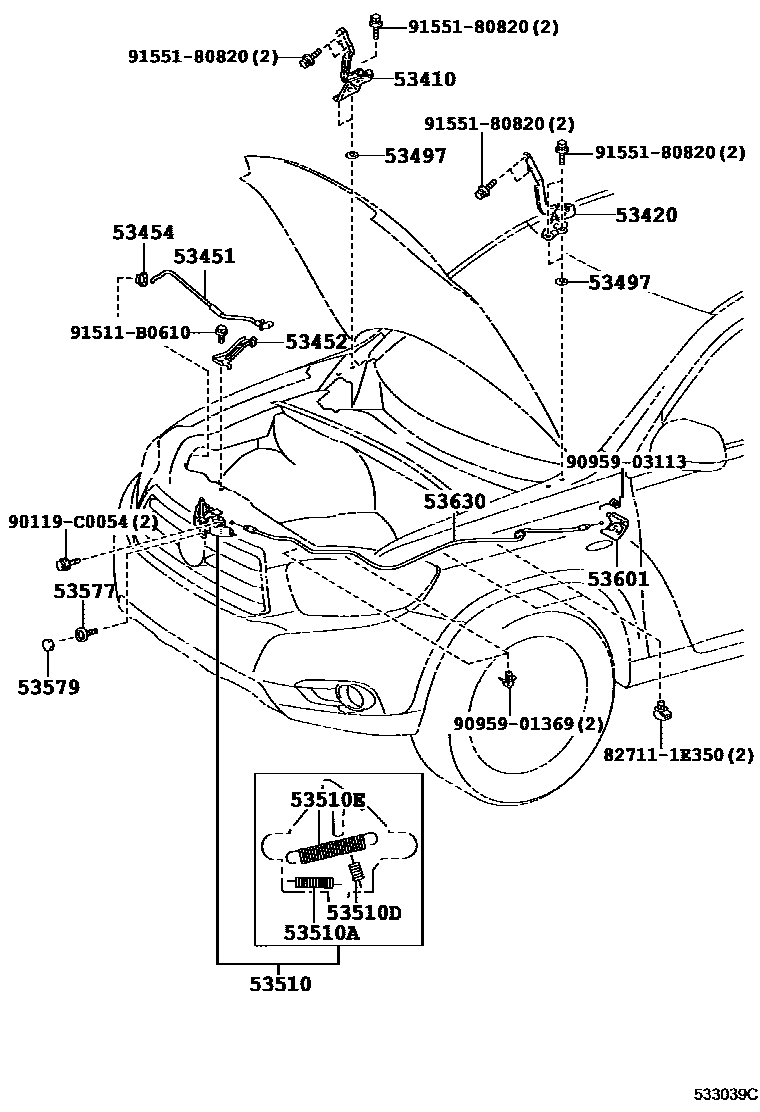

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0E100iASU40,GSU45200905-201205

53420HINGE ASSY, HOOD, LH

main53420-0E100iASU40,GSU45200905-201205

53451ROD, HOOD SUPPORT

main53440-0E030iASU40,GSU45200905-201205

53452HOLDER, HOOD STAY

main53452-48030iASU40,GSU45200905-201205

53454CLIP, HOOD SUPPORT ROD

main90480-15027iASU40,GSU45200905-201205

53497PAD, HOOD HINGE, NO.1

main53497-0D100×4iASU40,GSU45201205

T=1.0

main53497-0E050×4iASU40,GSU45201205

T=2.0

53510LOCK ASSY, HOOD

main53510-0E030iASU40,GSU45200905-200910

main53510-0E032iASU40,GSU45200911-201102

main53510-0E033iASU40,GSU45201103-201205

main53510-0E080iASU40,GSU45201205

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iASU40,GSU45201205

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iASU40,GSU45200905-201205

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iASU40,GSU45200905-201205

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-33010iASU40,GSU45200905-201205

53579CAP, HOOD LOCK NUT

main53579-0E020iASU40,GSU45201303

main53579-50010iASU40,GSU45200905-201205

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-22010-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,TRIM2#

main53611-22010-E5iASU40,GSU45200905-201205

SAND BEIGE,TRIM4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0E030iASU40,GSU45200905-201205

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

90119C0054

main90119-C0054

9095901369

main90959-01369

9095903113

main90959-03113

91511B0610

main91511-B0610

9155180820

main91551-80820

20 parts on this diagram · 1 diagram in section
