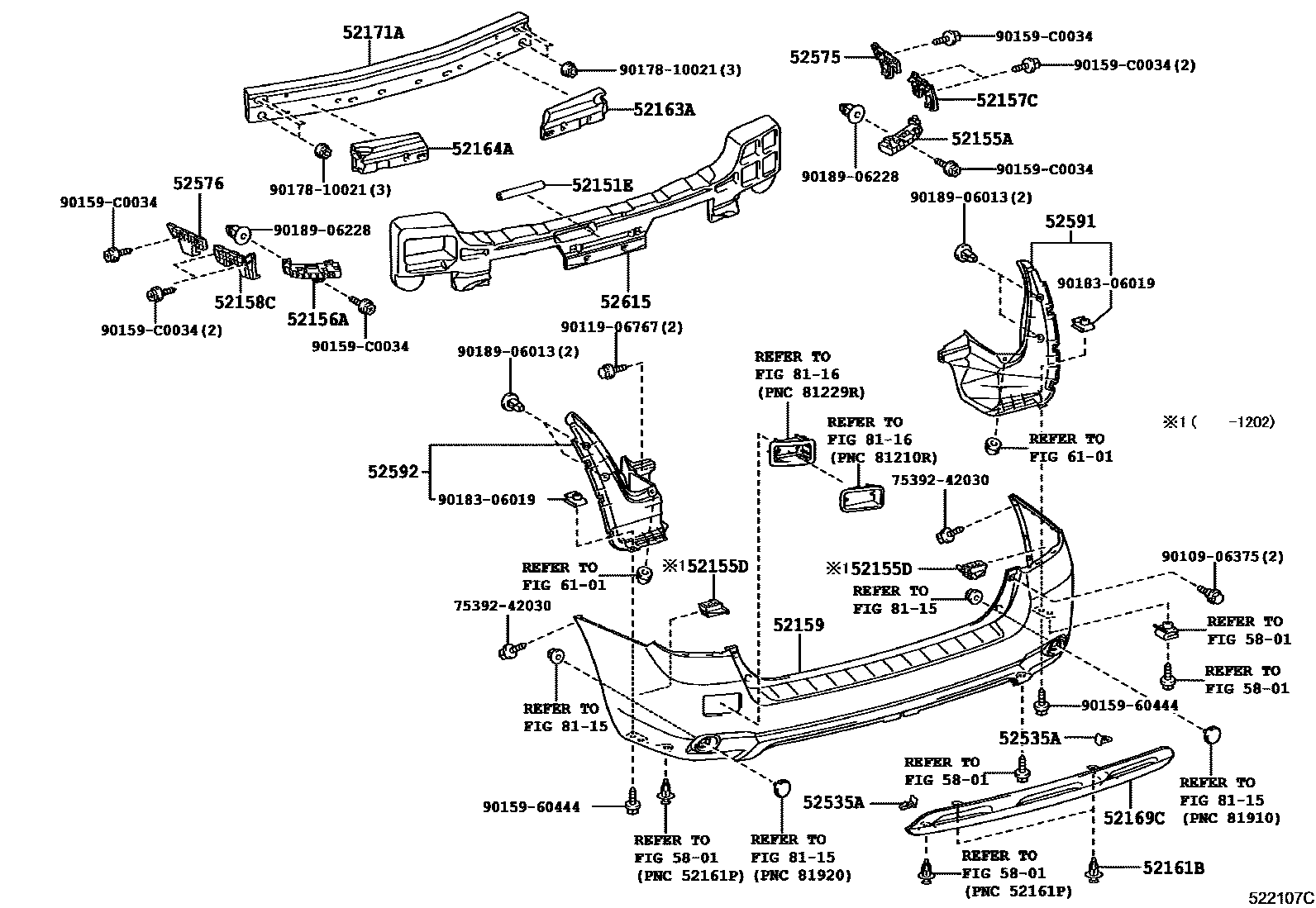

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52151EBAR, REAR BUMPER

main52151-0E020iASU40,GSU45200905-201205

NO PAINT REQ.

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-0E030iASU40,GSU45200905-201205

main52155-0E060iASU40,GSU45201205

52155DSUPPORT, REAR BUMPER SIDE

main52154-0E020×2iASU40,GSU45200905-201202

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-0E030iASU40,GSU45200905-201205

main52156-0E060iASU40,GSU45201205

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-0E010iASU40,GSU45200905-201205

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-0E010iASU40,GSU45200905-201205

52159COVER, REAR BUMPER

main52159-0E903iASU40,GSU45200905-201205

PAINT REQ.

main52159-0E910iASU40,GSU45201205

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010×2iASU40,GSU45200905-201205

52163APLATE, REAR BUMPER, RH

main52163-0E010iASU40,GSU45200905-201205

52164APLATE, REAR BUMPER, LH

main52164-0E010iASU40,GSU45200905-201205

52169CCOVER, REAR BUMPER, LOWER

main52169-0E010-A0iASU40,GSU45..LIMD,SPO200905-201205

WHITE PEARL CS.,070

main52169-0E010-B0iASU40,GSU45..LIMD,SPO200905-201205

SILVER ME.,1D4

main52169-0E010-B1iASU40,GSU45..LIMD,SPO200905-201205

GRAY ME.,1G3

main52169-0E010-C0iASU40,GSU45..LIMD,SPO200905-201205

BLACK,202

main52169-0E010-E0iASU40,GSU45..LIMD,SPO200905-201205

BEIGE ME.,4T8

main52169-0E010-G0iASU40,GSU45..LIMD,SPO201111-201205

GREEN M.M.,6V2

main52169-0E010-J0iASU40,GSU45..LIMD,SPO200905-201205

DK.BLUE MC.,8S6

main52169-0E020iASU40,GSU45..D200905-201205

NO PAINT REQ.

main52169-0E901iASU40,GSU45201205

PAINT REQ.

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-0E110iASU40,GSU45201311

main52171-48140iASU40,GSU45200905-201205

main52171-48201iASU40,GSU45201205-201310

52535ARETAINER, REAR BUMPER SIDE, RH

main52535-28020×2iASU40,GSU45200905-201205

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0E030iASU40,GSU45200905-201201

main52575-0E031iASU40,GSU45201202-201205

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0E030iASU40,GSU45200905-201201

main52576-0E031iASU40,GSU45201202-201205

52591SEAL, REAR BUMPER SIDE, RH

main52591-0E020iASU40,GSU45200905-201205

main52591-0E050iASU40,GSU45201205

52592SEAL, REAR BUMPER SIDE, LH

main52592-0E010iASU40,GSU45200905-201205

main52592-0E050iASU40,GSU45201205

52615ABSORBER, REAR BUMPER ENERGY

main52615-0E030iASU40,GSU45200905-201205

main52615-0E070iASU40,GSU45201205

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

6101SIDE MEMBER

→ Go to FIG 61-01

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8116REAR FOG LAMP

→ Go to FIG 81-16

7539242030RETAINER, OUTSIDE MOULDING

main75392-42030

9010906375

main90109-06375

9011906767

main90119-06767

9015960444

main90159-60444

90159C0034

main90159-C0034

9017810021

main90178-10021

9018306019

main90183-06019

9018906013

main90189-06013

9018906228

main90189-06228

31 parts on this diagram · 2 diagrams in section
