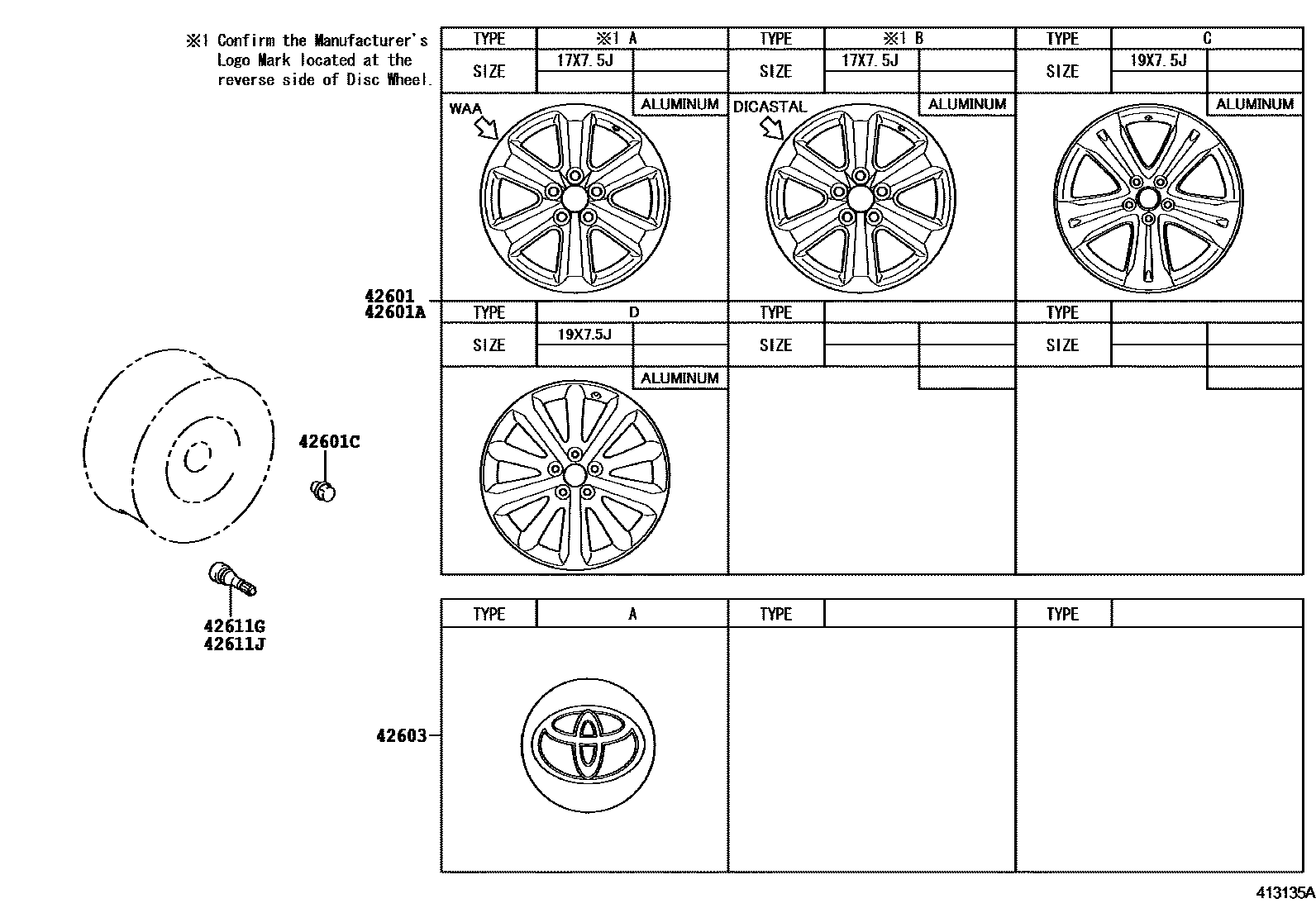

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-0E030×4iGSU45..LIMD,SPO201205

19X7.5J, #,TYPE D:REFER ILLUST.

main42611-0E110×4iASU40,GSU45..D200905-201205

17X7.5J, #,TYPE A:REFER ILLUST.

main42611-0E120×4iASU40,GSU45..SPO200905-201205

19X7.5J, #,TYPE C:REFER ILLUST.

main42611-0E130×4iASU40,GSU45..LIMD200905-201205

19X7.5J, #,TYPE C:REFER ILLUST.

main42611-0E170×4iASU40,GSU45..D200905-201205

17X7.5J, #,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0E030iGSU45..LIMD,SPO201205

19X7.5J, #,TYPE D:REFER ILLUST.

main42611-0E110iASU40,GSU45..D200905-201205

17X7.5J, #,TYPE A:REFER ILLUST.

main42611-0E120iASU40,GSU45..SPO200905-201205

19X7.5J, #,TYPE C:REFER ILLUST.

main42611-0E130iASU40,GSU45..LIMD200905-201205

19X7.5J, #,TYPE C:REFER ILLUST.

main42611-0E170iASU40,GSU45..D200905-201205

17X7.5J, #,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iASU40,GSU45200905-200906

main90942-C1001×20iASU40,GSU45201205

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-0E030×4iASU40,GSU45..D200905-201205

*ALU,TYPE A:REFER ILLUST.

main42603-0E040×4iASU40,GSU45..LIMD,SPO200905-201205

*ALU,TYPE A:REFER ILLUST.

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iASU40,GSU45..D; ASU40,GSU45..LIMD,SPO201205

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iASU40,GSU45200905-201205

6 parts on this diagram · 2 diagrams in section
