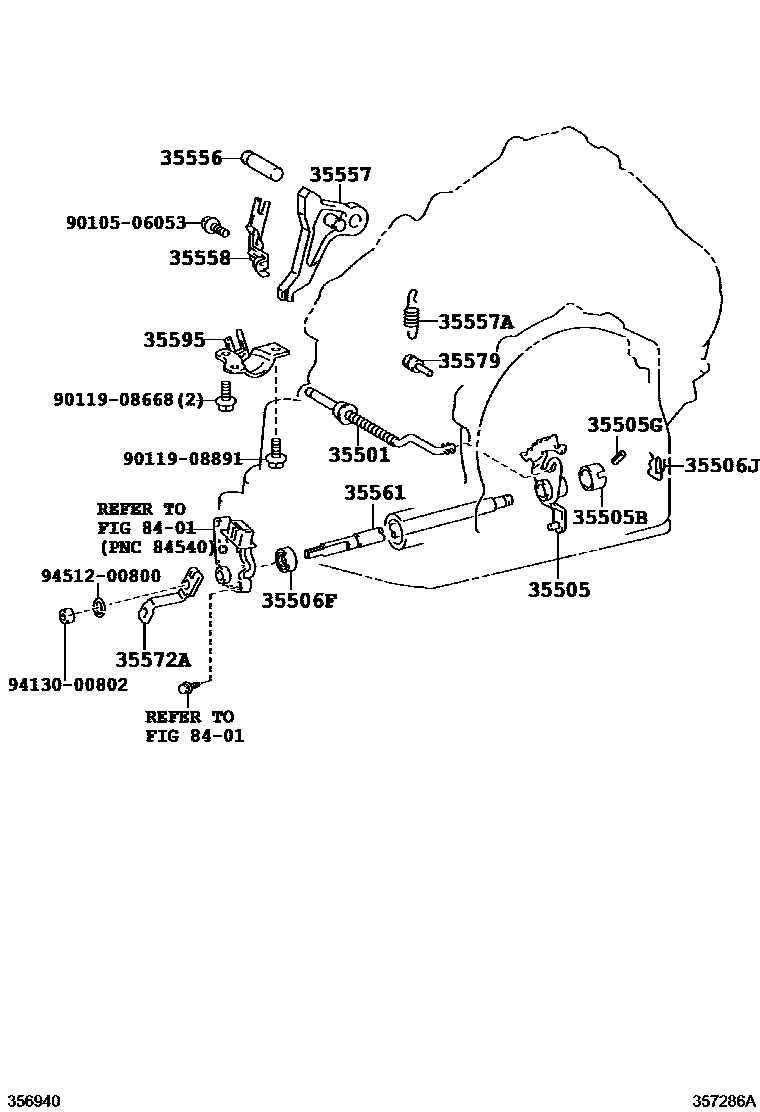

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U151F 0002 1U760E

35501ROD SUB-ASSY, PARKING LOCK

main35501-21010iGSU45200905-201205

main35501-33020iASU40200905-201205

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-21010iGSU45200905-201205

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iGSU45200905-201205

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iGSU45200905-201205

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-33011iASU40200905-201109

main35506-33011iASU40201301

*285

main35506-73011iASU40201109-201205

sub35506-33011

main35506-73011iASU40201205

*284

sub35506-33011

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iASU40,GSU45200905-201205

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iGSU45200905-201205

main90524-09002iASU40200905-201205

35556SHAFT, PARKING LOCK PAWL

main35556-28010iGSU45200905-201205

main35556-33010iASU40201205

*284

main35556-33010iASU40201109-201205

main35556-33020iASU40200905-201109

main35556-33020iASU40201301

*285

35557PAWL, PARKING LOCK

main35557-73010iASU40200905-201205

main35590-21010iGSU45200905-201205

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90506-18077iGSU45200905-201205

35558CLAMP, PAWL SHAFT

main35558-28010iGSU45200905-201205

main35558-33010iASU40201109-201205

main35558-33010iASU40201205

*284

main35558-33020iASU40201301

*285

main35558-33020iASU40200905-201109

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iGSU45200905-201205

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-33020iASU40200905-201503

main35572-33050iGSU45200905-201503

35579PIN, PARKING LOCK PAWL

main35594-28010iGSU45200905-201205

35595BRACKET, PARKING LOCK PAWL

main35595-21010iGSU45200905-201205

8401

9010506053

main90105-06053

9011908668

main90119-08668

9011908891

main90119-08891

9413000802

main94130-00802

9451200800

main94512-00800

21 parts on this diagram · 2 diagrams in section
