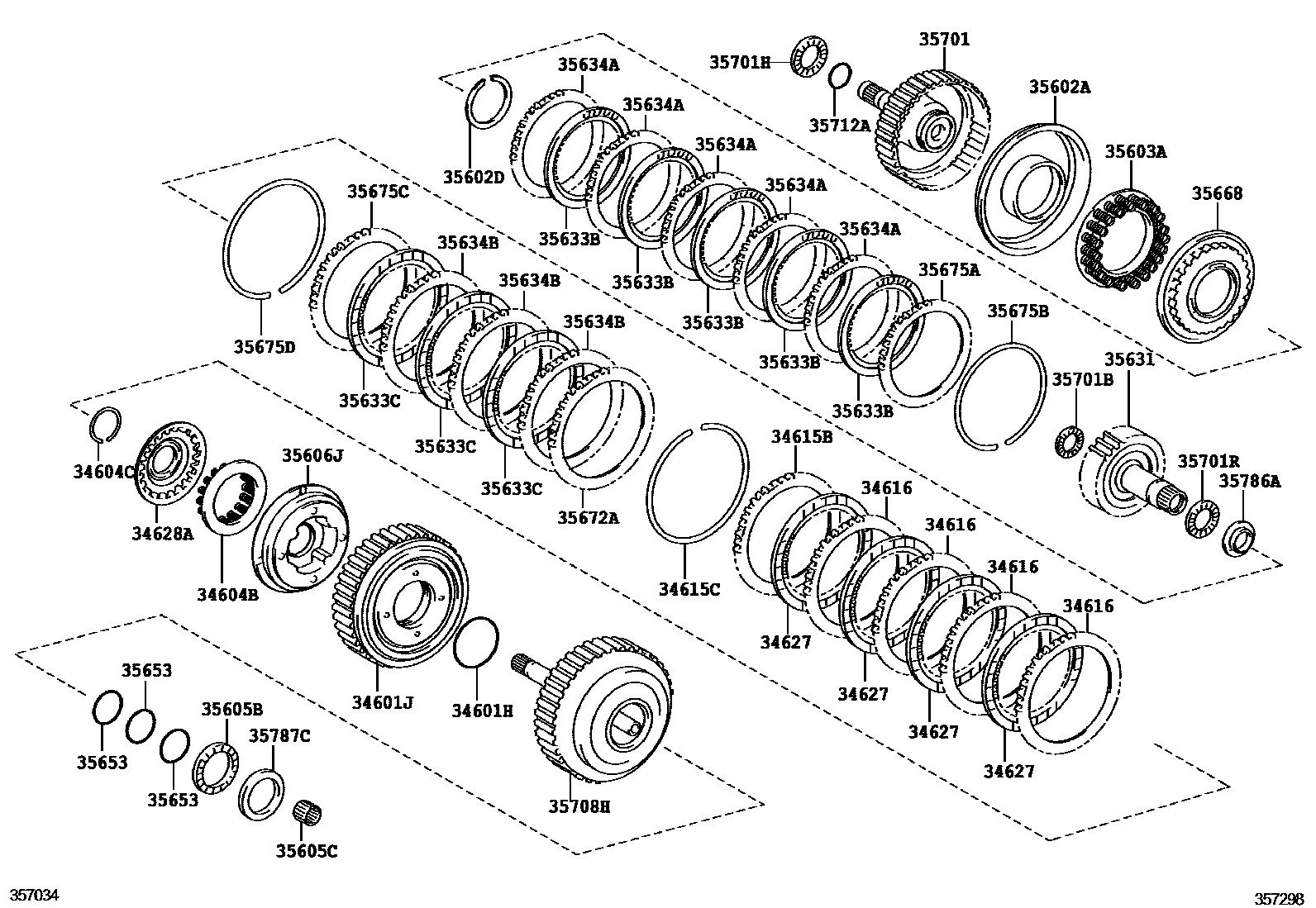

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
34601HRING, O (FOR OVERDRIVE DIRECT CLUCH)
34601JDRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH
34604BSPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN
34604CSPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN
34615BFLANGE, OVERDRIVE CLUTCH
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
T=3.0
T=3.1
34615CRING, HOLE SNAP(FOR OVERDRIVE CLUCH)
34616PLATE, OVERDRIVE CLUTCH
34627DISC, OVERDRIVE DIRECT CLUTCH
34628ABALANCER, OVERDRIVE DIRECT CLUTCH
35602APISTON SUB-ASSY, FORWARD CLUTCH
35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35605BBEARING, THRUST NEEDLE ROLLER
35605CBEARING, NEEDLE ROLLER
35606JPISTON, OVERDRIVE DIRECT CLUTCH
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
T=1.8
35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
T=1.8
35653RING, REAR CLUTCH OIL SEAL, OUTER
35668BALANCER, CLUTCH, NO.1
35672APLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)
35675AFLANGE, FORWARD CLUTCH
T=3.00
T=3.15
T=3.30
T=3.45
T=3.60
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675CFLANGE, DIRECT CLUTCH
T=3.0
T=3.1
T=3.2
T=3.3
T=3.4
T=3.5
T=3.6
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
35701SHAFT SUB-ASSY, INPUT
35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)
35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
OD=52.2
35701RBEARING, THRUST NEEDLE ROLLER
35708HSHAFT SUB-ASSY, INTERMEDIATE
35712ARING, INPUT SHAFT OIL SEAL
35787CRACE, THRUST BEARING, NO.2
35 parts on this diagram · 2 diagrams in section
