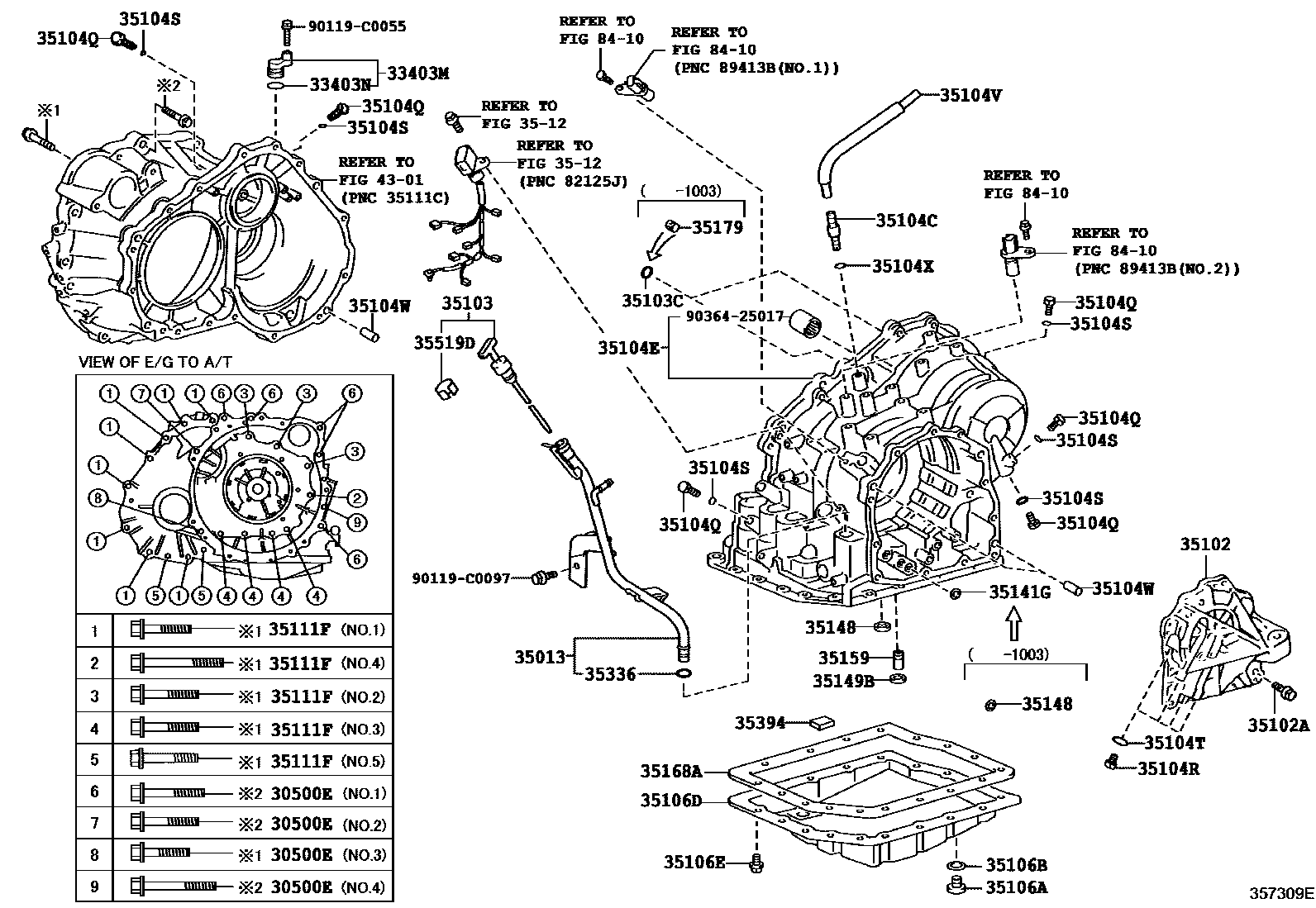

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U151F 0002 1U760E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10425iGSU45201409

*10-1.25PX41-28,(J),NO.3

main90105-C0031×2iASU40201205

*10-1.25PX50-30,NO.2

main90105-C0273iGSU45201409

*10-1.25PX41-28,(L),NO.3

main90119-12250iGSU45201205-201409

*12-1.25PX50-30,NO.2

main90119-C0040×3iASU40; GSU45201205

*12-1.25PX55-30,NO.1

main90119-C0358iGSU45201409

*12-1.25PX50-30,(L),NO.2

main90119-C0426iGSU45201409

*12-1.25PX65-30,(L),NO.4

main91619-61265iGSU45200905-201205

*12-1.25PX65-30,NO.4

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-21020iGSU45200905-201205

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24020iGSU45200905-201205

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-48130iGSU45201205

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-33030iGSU45201205

main35102-33090iASU40201301-201308

*285

main35102-33091iASU40201308

*285

main35102-73010iASU40201205-201308

*284

main35102-73011iASU40201308

*284

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08071×11iGSU45200905-201205

*8-1.25PX30-25

main90105-08431×2iASU40201205

*8-1.25PX28-22,NO.1

main91551-00828×12iASU40201205

*8-1.25PX28-22,NO.2

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-0E030iGSU45201302

main35103-48110iGSU45200905-201205

main35103-48111iGSU45201208-201302

35103CRING, O

main90301-06008×2iGSU45201003-201205

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03157iGSU45200905-201205

main90930-03187iASU40201205

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-33042iGSU45200905-201003

main35104-33043iGSU45201003-201205

main35141-33140iASU40200905-201109

main35141-33141iASU40201404

*285

main35141-73010iASU40201109-201205

main35141-73011iASU40201405

*284

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3iASU40; GSU45200905-201205

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-08001×4iGSU45200905-201205

main90341-14015×3iASU40200905-201205

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×3iASU40; GSU45200905-201205

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-06196×4iGSU45201205

main90301-10018×4iASU40201205

main90301-10189×4iASU40200905-201108

35104VHOSE (FOR BREATHER PLUG)

main35121-28010iGSU45201006-201205

main35121-28011iGSU45200905-201006

main35121-33050iASU40201301-201404

*285

main35121-33051iASU40201404

*285

main35121-73010iASU40201205-201312

*284

main35121-73011iASU40201312

*284

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5iASU40200905-201205

main90250-10034×4iGSU45201205

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iGSU45200905-201205

main90301-06021iASU40201205

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034iASU40201205

main90341-18016iGSU45201205

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008iASU40201205

main90430-18008iGSU45200905-201205

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-33040iGSU45200905-201205

main35106-33070iASU40201301

*285

main35106-73010iASU40201109-201205

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×19iASU40; GSU45200905-201205

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-06320×2iGSU45200905-201205

*6-1.00PX50-25,NO.5

main90105-08066iGSU45200905-201205

*8-1.25PX72-30,NO.4

main90105-08233×8iGSU45201205

*8-1.25PX42-30,NO.1

main90105-08353×3iGSU45201205

*8-1.25PX50-30,NO.2; *8-1.25PX50-30,NO.3

main90105-08432×3iASU40201109-201205

*8-1.25PX45-22,NO.1

main91551-10845×17iASU40201109-201205

*8-1.25PX45-22,NO.2

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-10189×3iGSU45201003-201205

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010iGSU45201003-201205

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010iGSU45200905-201205

35159GASKET, BRAKE DRUM

main35159-21010iGSU45200905-201205

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21011iGSU45201205

main35168-73010iASU40201205

35179GASKET, OVERDRIVE BRAKE

main35179-32010×2iGSU45200905-201003

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iGSU45200905-201205

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iASU40201402

main35394-48010×2iGSU45201205

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-28041iGSU45201205

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

90119C0055

main90119-C0055

90119C0097

main90119-C0097

9036425017

main90364-25017

37 parts on this diagram · 2 diagrams in section
