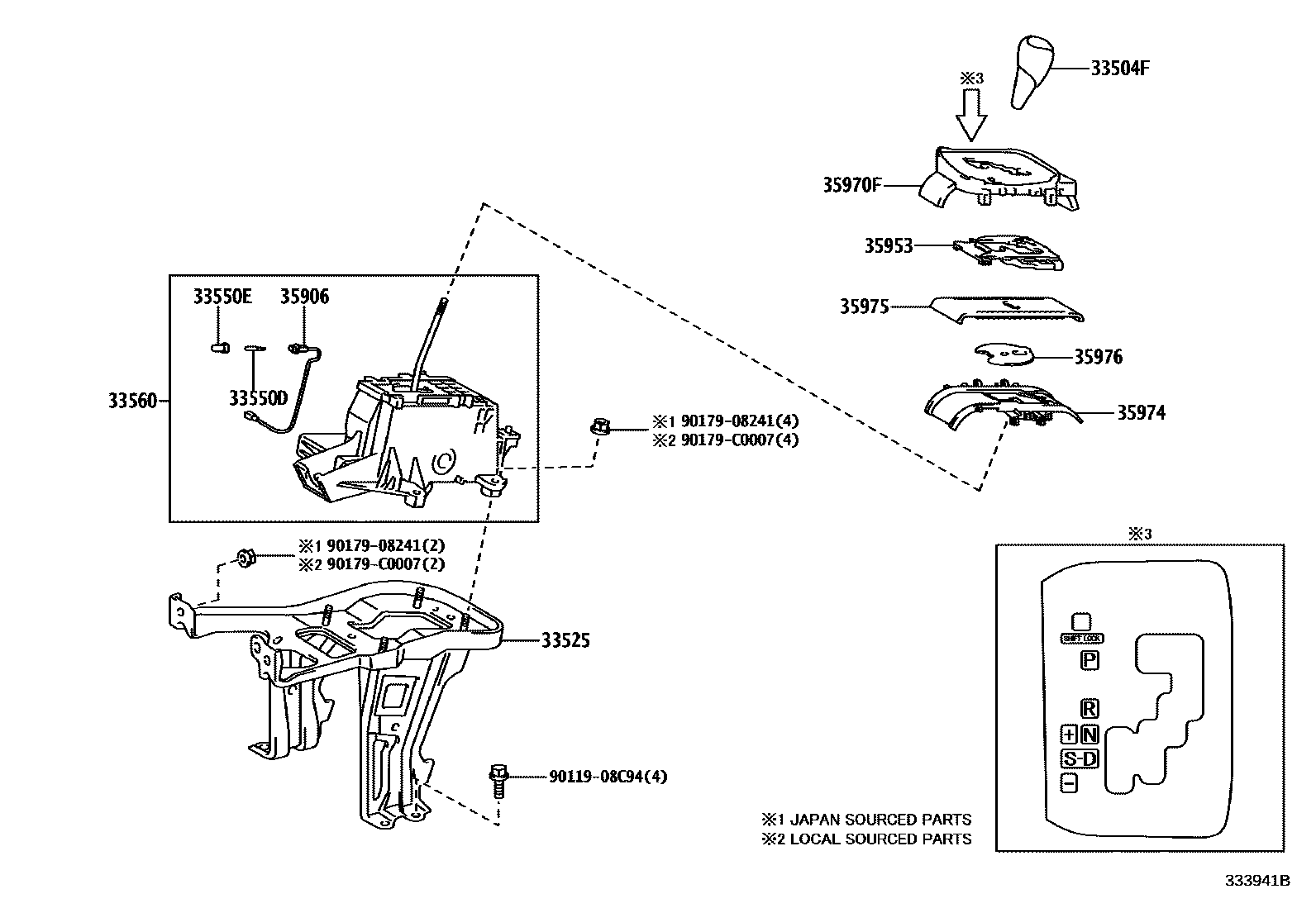

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-06130-E1iASU40,GSU45..D200905-201503

DK. BROWN,TRIM4#

main33504-0E070-C0iASU40,GSU45..SPO200905-201205

BLACK,TRIM2#

main33504-0E070-C1iASU40,GSU45..SPO201205-201503

BLACK,TRIM2#

main33504-0E070-E0iASU40,GSU45..SPO200905-201205

DK. BROWN,TRIM4#

main33504-0E070-E1iASU40,GSU45..SPO201205-201503

DK. BROWN,TRIM4#

main33504-0E080-C0iASU40,GSU45..LIMD200905-201205

BLACK,TRIM2#

main33504-0E080-C1iASU40,GSU45..LIMD201205-201503

BLACK,TRIM2#

main33504-0E080-E0iASU40,GSU45..LIMD200905-201205

DK. BROWN,TRIM4#

main33504-0E080-E1iASU40,GSU45..LIMD201205-201503

SILVER,TRIM4#

33525SUPPORT, SHIFT LEVER

main58123-0E010iASU40,GSU45200905-201205

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iASU40,GSU45200905-201205

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main90339-04049iASU40,GSU45200905-201205

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-0E030iASU40,GSU45..D,SPO200905-201308

sub33560-0E031

main33560-0E031iASU40,GSU45..D,SPO201309

main33560-0E040iASU40,GSU45..LIMD200905-201308

sub33560-0E041

main33560-0E041iASU40,GSU45..LIMD201309

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-0E030iASU40,GSU45200905-201205

35953GUIDE, POSITION INDICATOR LIGHT

main35953-48080iASU40,GSU45200905-201205

35970FHOUSING ASSY, POSITION INDICATOR

main35970-0E040iASU40,GSU45200905-201205

main35970-0E080iASU40,GSU45..D,SPO201205

main35970-0E090iASU40,GSU45..LIMD201205

35974HOUSING, POSITION INDICATOR, LOWER

main35974-48090iASU40,GSU45200905-201205

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-48060iASU40,GSU45200905-201205

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-48040iASU40,GSU45200905-201205

9011908C94

main90119-08C94

9017908241

main90179-08241

90179C0007

main90179-C0007

14 parts on this diagram · 3 diagrams in section
