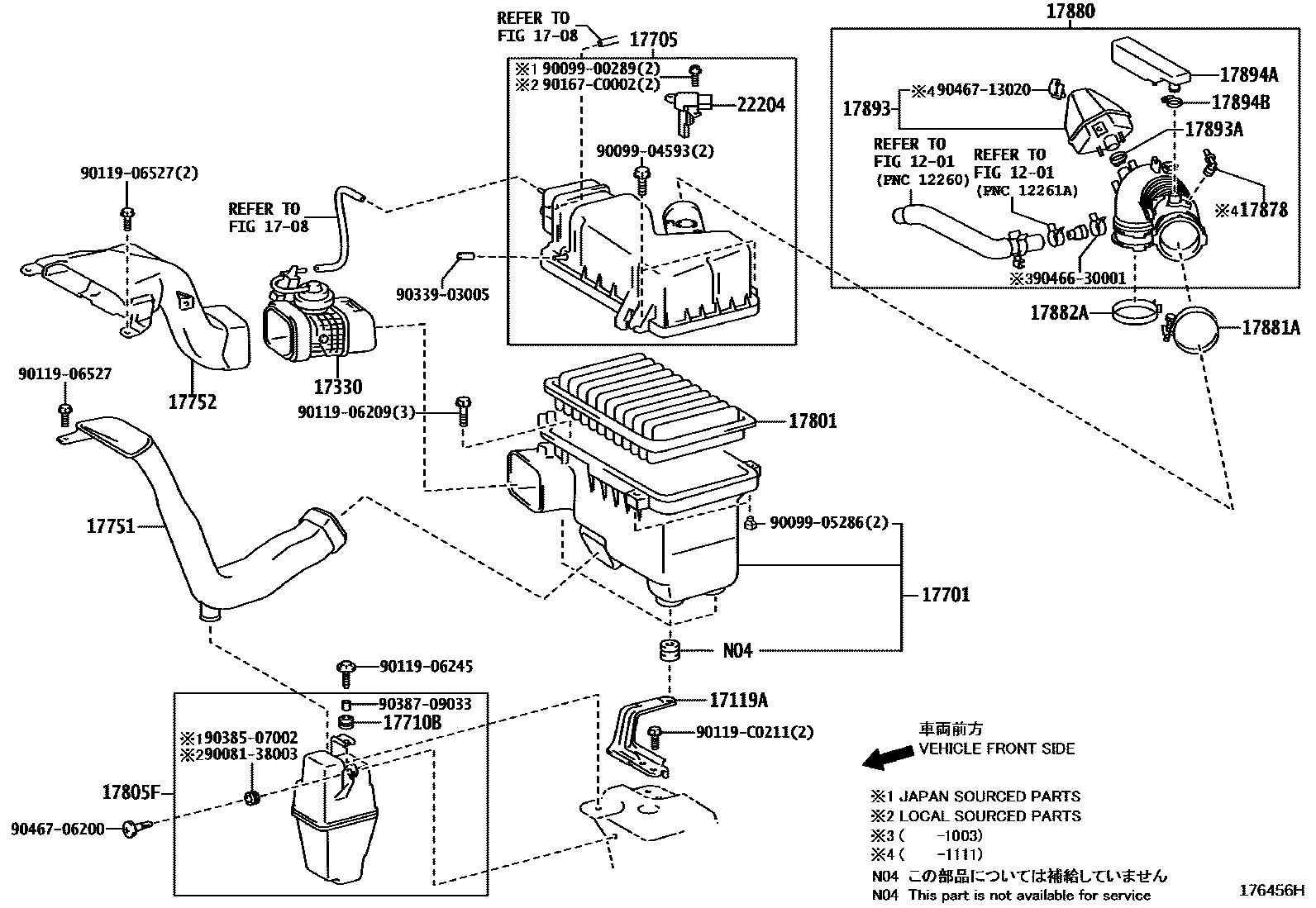

AIR CLEANER
1201VENTILATION HOSE
1708VACUUM PIPING
17119ABRACKET, AIR CLEANER
17330VALVE ASSY, INTAKE AIR CONTROL, NO.3
17701CASE SUB-ASSY, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17710BGROMMET
17752INLET, AIR CLEANER, NO.2
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17805FRESONATOR SUB-ASSY, INTAKE AIR
17878PIPE, INTAKE AIR CONNECTOR, NO.3
17880HOSE ASSY, AIR CLEANER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
17894ARESONATOR, INTAKE AIR, NO.2
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
22204METER SUB-ASSY, INTAKE AIR FLOW
(L); MARK 22204-0T010
(J); MARK 22204-31020
9008138003
main90081-38003
9009900289
main90099-00289
9009904593
main90099-04593
9009905286
main90099-05286
9011906209
main90119-06209
9011906245
main90119-06245
9011906527
main90119-06527
90119C0211
main90119-C0211
90167C0002
main90167-C0002
9033903005
main90339-03005
9038507002
main90385-07002
9038709033
main90387-09033
9046630001
main90466-30001
9046706200
main90467-06200
9046713020
main90467-13020
36 parts on this diagram · 3 diagrams in section
