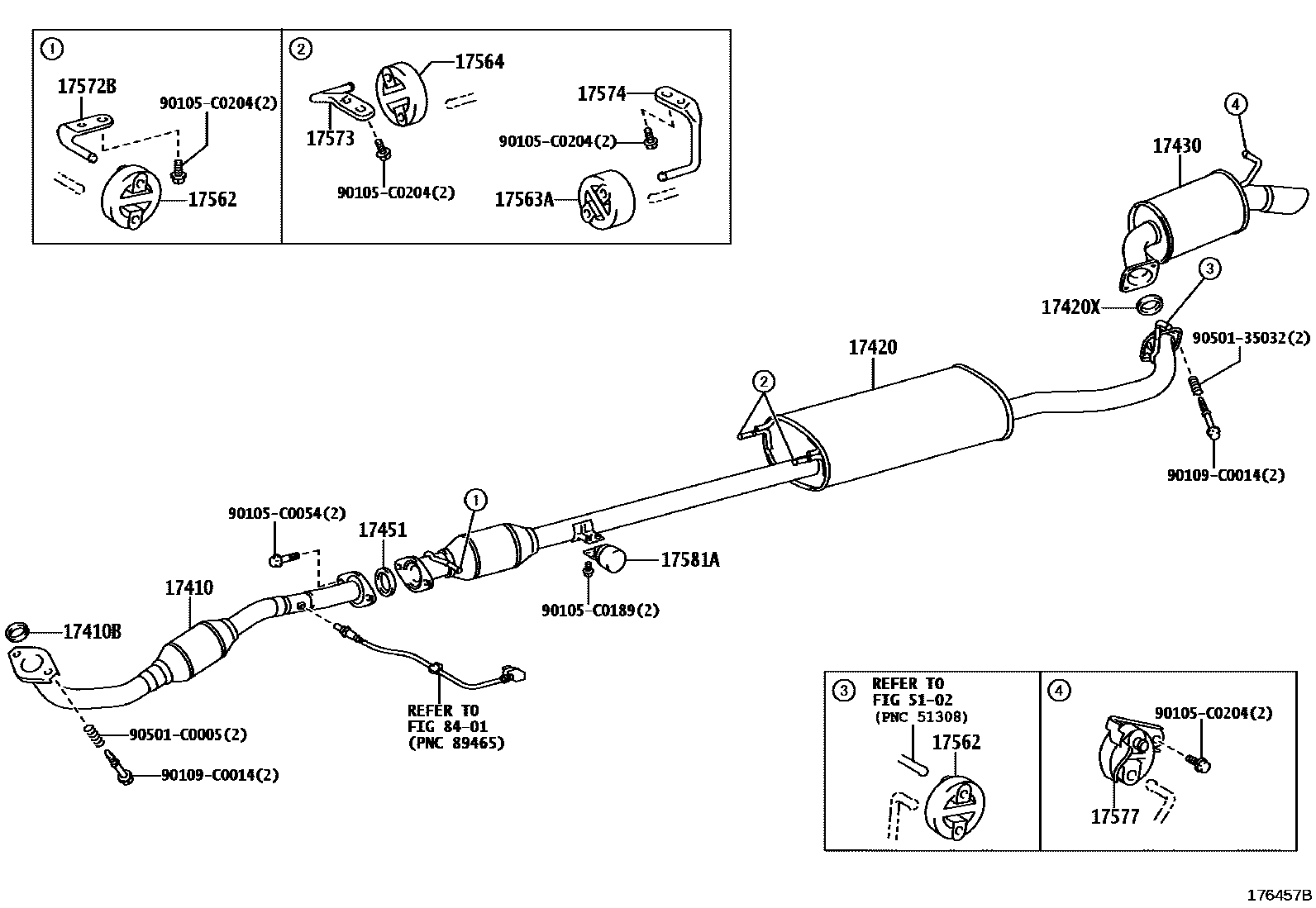

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
17420PIPE ASSY, EXHAUST, CENTER
17420XGASKET, EXHAUST PIPE, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
NO.1
NO.2
NO.2
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17564SUPPORT,EXHAUST PIPE, NO.4
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17577BRACKET, EXHAUST PIPE SUPPORT, NO.7
17581ADAMPER, EXHAUST PIPE
5102SUSPENSION CROSSMEMBER & UNDER COVER
8401SWITCH & RELAY & COMPUTER
90105C0054
main90105-C0054
90105C0189
main90105-C0189
90105C0204
main90105-C0204
90109C0014
main90109-C0014
9050135032
main90501-35032
90501C0005
main90501-C0005
22 parts on this diagram · 3 diagrams in section
