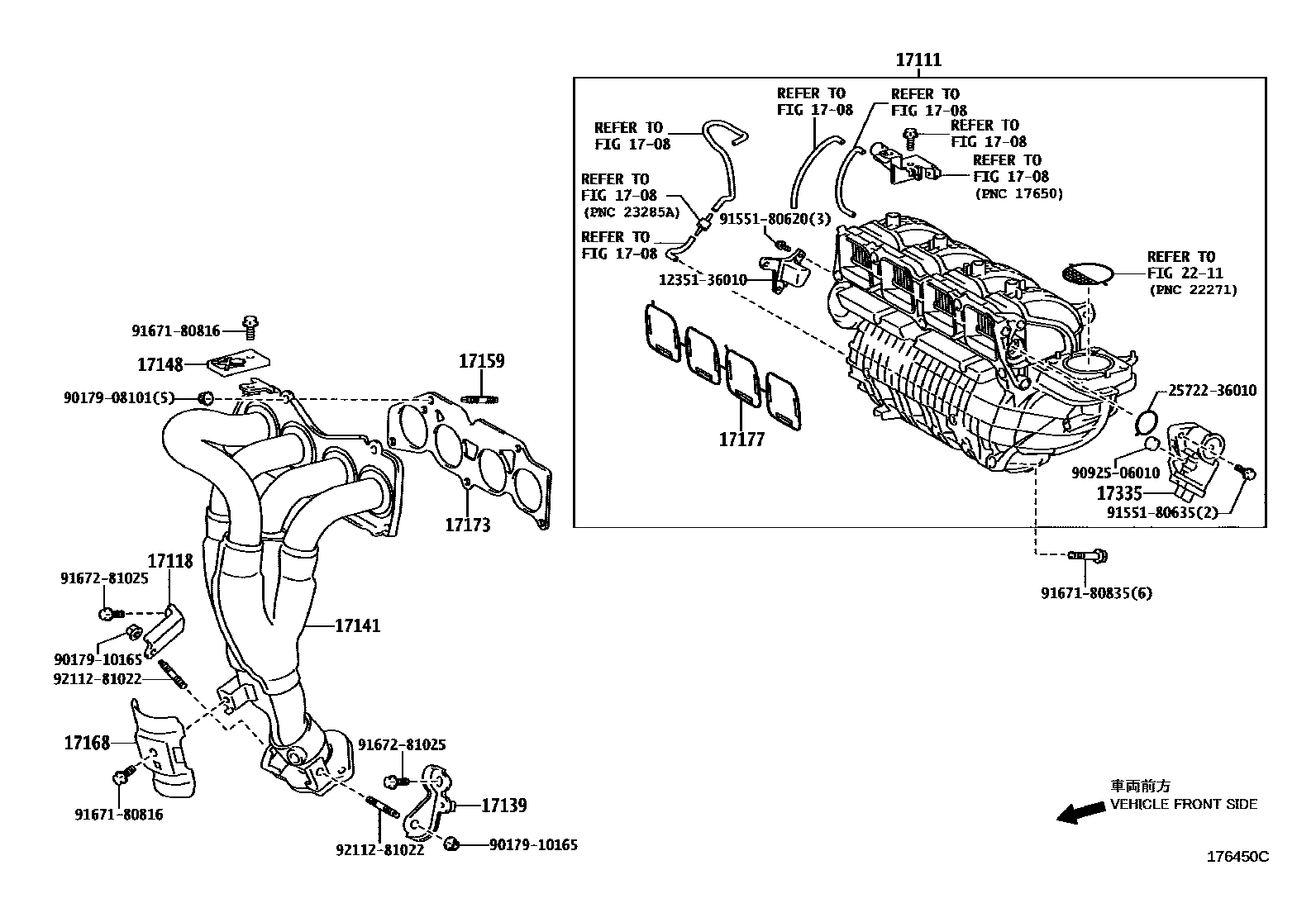

MANIFOLD
1708
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17139STAY, MANIFOLD, NO.2
17141MANIFOLD, EXHAUST
17148PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17335ACTUATOR, INTAKE AIR CONTROL VALVE
2211
1235136010DAMPER, ENGINE MOUNTING
main12351-36010
2572236010GASKET, ELECTRIC AIR CONTROL VALVE
main25722-36010
9017908101
main90179-08101
9017910165
main90179-10165
9092506010
main90925-06010
9155180620
main91551-80620
9155180635
main91551-80635
9167180816
main91671-80816
9167180835
main91671-80835
9167281025
main91672-81025
9211281022
main92112-81022
23 parts on this diagram · 3 diagrams in section
