ENGINE OIL COOLER

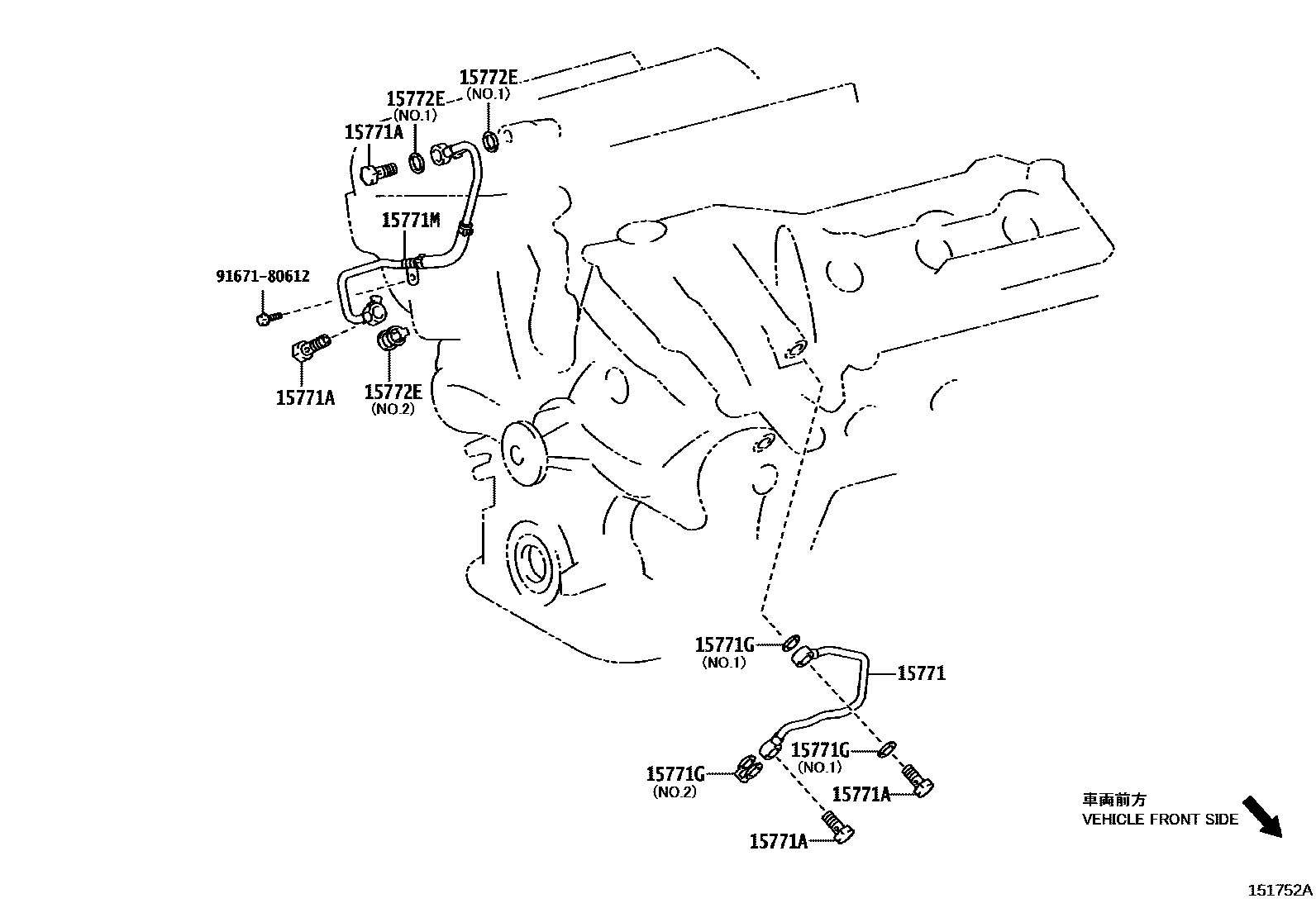

Parts diagram

15771PIPE, OIL, NO.1

main15771-31010i200905-201205

15771AUNION(FOR OIL PIPE)

main90401-16043×4i200905-201205

15771GGASKET

main90430-16016i201205

NO.2

main90430-16017×2i201205

NO.1

15771MPIPE, OIL

main15772-31030i200905-201205

15772EGASKET(FOR OIL PIPE)

main90430-16016i200905-201205

NO.2

main90430-16017×2i200905-201205

NO.1

9167180612

main91671-80612

6 parts on this diagram · 1 diagram in section
