ENGINE OVERHAUL GASKET KIT

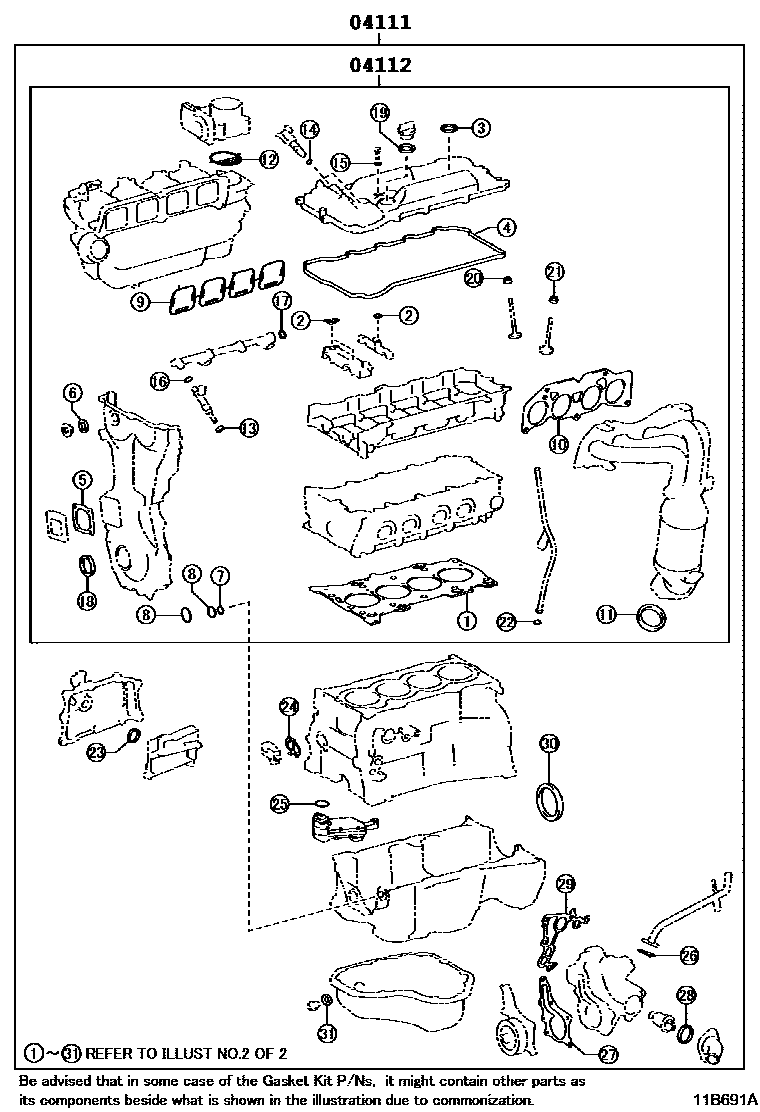

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0V050i201111-201112

main04111-0V051i201112-201202

main04111-0V052i201205-201312

main04111-0V053i201312-201406

main04111-0V054i201406

main04111-31442i200905-201205

main04111-31960i201205-201503

main04111-36040i200905-201111

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0V040i201111-201202

main04112-0V041i201205-201312

main04112-0V042i201312-201406

main04112-0V043i201406

main04112-31272i200905-201205

main04112-31770i201205-201503

main04112-36040i200905-201111

2 parts on this diagram · 6 diagrams in section
