STANDARD TOOL

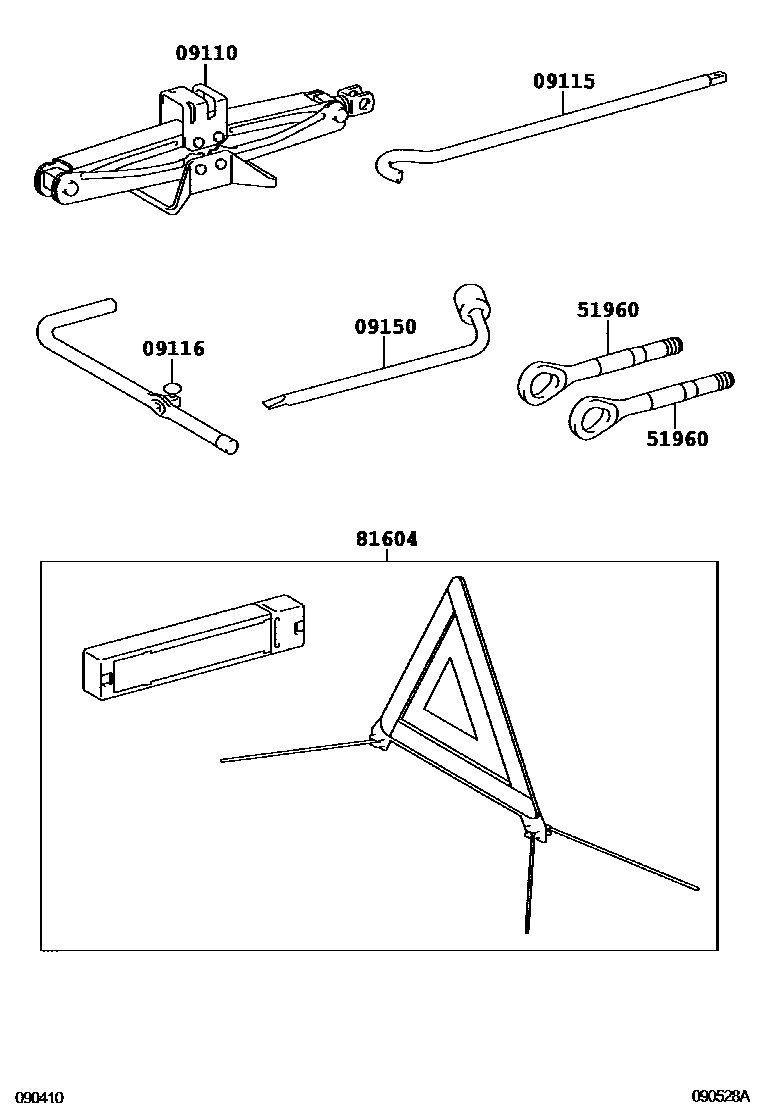

Parts diagram

09110JACK ASSY

main09111-0E020i200905-201205

09115ROD SUB-ASSY, JACK HANDLE

main09115-48010i200905-201205

09116LEVER, JACK HANDLE

main09116-48010i200905-201205

09150WRENCH, HUB NUT BOX

main09150-0D020i200905-201205

51960HOOK ASSY, FRONT

main51961-0E050×2i200905-201205

81604REFLECTOR SET, TRIANGLE

main81604-0E010i200905-201205

6 parts on this diagram · 1 diagram in section
