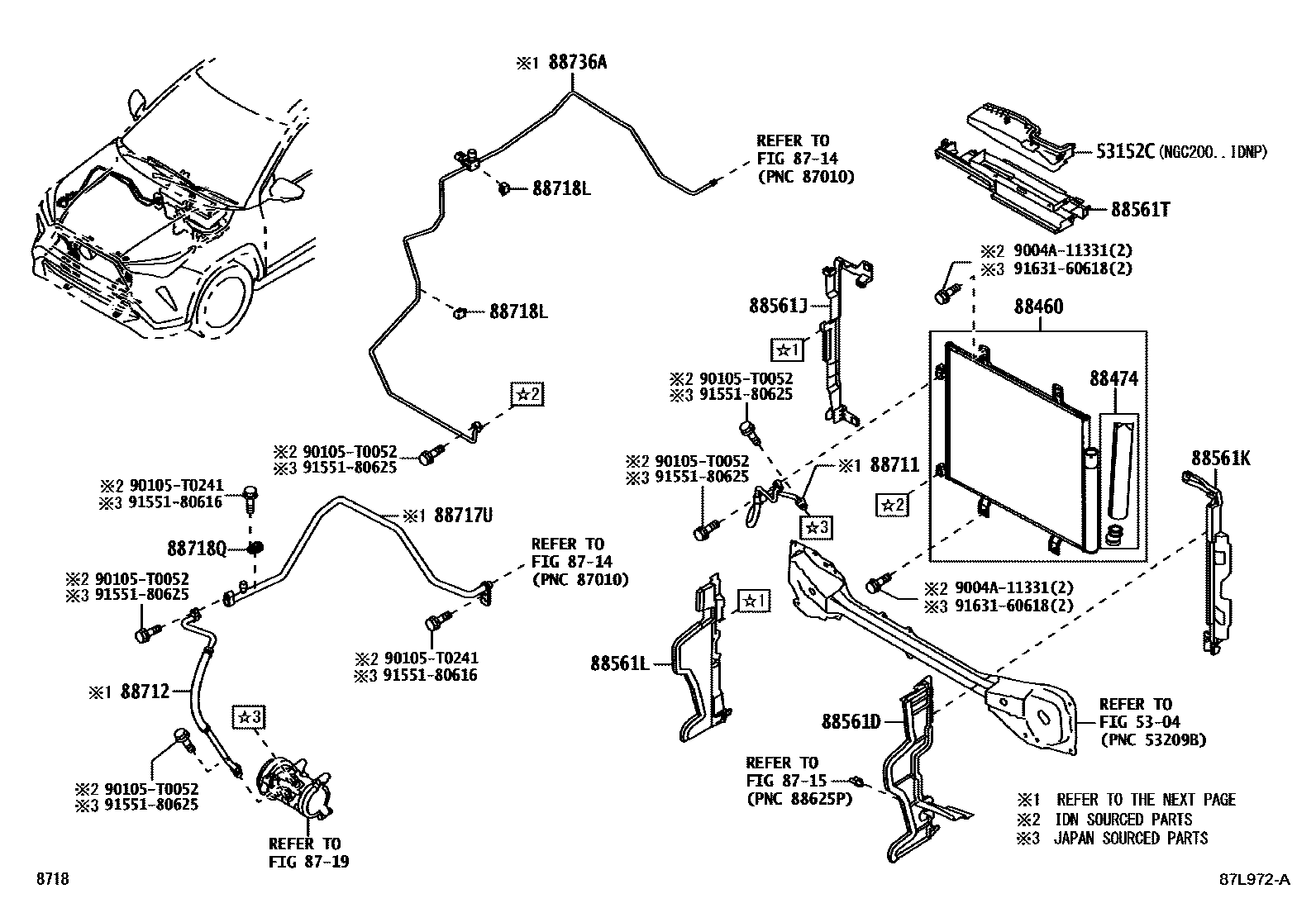

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1SINGLE(CONDENSER) 0002 1SINGLE(CONDENSER) 0003 1SINGLE(CONDENSER) 0004 1SINGLE(CONDENSER) 0005 1SINGLE(CONDENSER) 0006 1SINGLE(TUBE ASSY) 0007 1SINGLE(TUBE ASSY)

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53152CGUIDE, RADIATOR GRILLE AIR

main53152-BZ110iNGC200..TAIW202306

main53152-BZ120iNGC200..MA202406

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88460CONDENSER ASSY, COOLER

main88460-BZ440iNGC200,NYC200..IDNP202306

main88460-BZ450iNYC200..TH202310

88474DRYER, COOLER

main88474-B2010iNGC200,NYC200..IDNP,THP202306

W/DRYER,FILTER

88561DGRILLE, AIR INLET NO.3

main88561-BZC10iNGC200..TAIW202306

88561JGRILLE, AIR INLET NO.1

main88561-BZB80iNGC200,NYC200..IDNP,THP202306

88561KGRILLE, AIR INLET NO.2

main88561-BZB90iNGC200,NYC200..IDNP,THP202306

88561LGRILLE, AIR INLET NO.4

main88561-BZC00iNGC200..TAIW202306

88561TGRILLE, AIR INLET NO.5

main88561-BZB40iNGC200..MA202306

main88561-BZB70iNYC200..MA202306

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-BZ770iNGC200..IDNP202306

main88711-BZ830iNGC200..MA202406

main88711-BZA60iNGC200..TAIW202310

main88711-BZA70iNYC200..IDNP202306

main88711-BZA80iNYC200..TH202310

main88711-BZA90iNYC200..MA202406

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-BZ830iNGC200..IDNP202306

main88712-BZA00iNGC200..MA202406

main88712-BZB60iNYC200..IDNP202306

main88712-BZB70iNYC200..TH202310

main88712-BZB80iNYC200..MA202406

main88712-BZB90iNGC200..TAIW202310

88717UTUBE, SUCTION, NO.1

main88717-BZ490iNGC200..LHD..IDNP202306

main88717-BZ590iNGC200..MA202406

main88717-BZ640iNGC200..RHD..IDNP202306

main88717-BZ660iNYC200..RHD..IDNP202306

main88717-BZ670iNYC200..TH202310

main88717-BZ680iNYC200..MA202406

main88717-BZ690iNGC200..TAIW202310

main88717-BZ700iNYC200..LHD202306

88718LCLAMP, PIPING

main88718-0D210iNYC200..TH202310

main88718-0D290iNGC200,NYC200..MA202406

main88718-13060iNGC200,NYC200..IDNP202306

88718QCLAMP, PIPING

main88718-BZ800iNGC200,NYC200202306

88736ATUBE, LIQUID, A(FOR COOL BOX)

main88716-BZF70iNGC200..LHD..IDNP202306

main88716-BZJ30iNGC200..MA202406

main88716-BZK20iNGC200..RHD..IDNP202306

main88716-BZK40iNYC200..RHD..IDNP202306

main88716-BZK50iNYC200..TH202310

main88716-BZK60iNYC200..MA202406

main88716-BZK70iNGC200..TAIW202310

main88716-BZK80iNYC200..LHD202306

9004A11331

main9004A-11331

90105T0052

main90105-T0052

90105T0241

main90105-T0241

9155180616

main91551-80616

9155180625

main91551-80625

9163160618

main91631-60618

24 parts on this diagram · 7 diagrams in section
