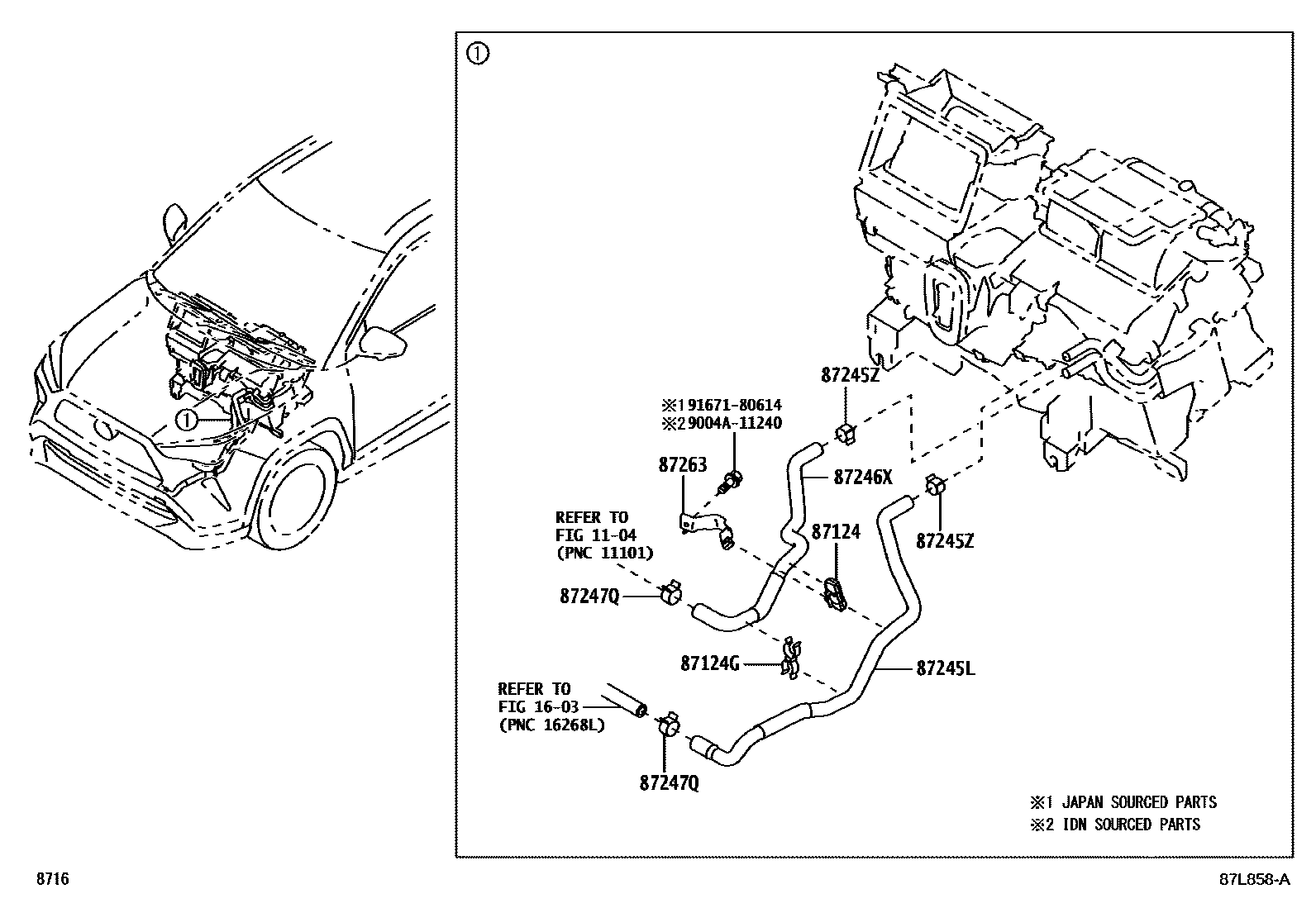

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0005 1 0006 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87124CLAMP, HEATER

main87124-B2080iNGC200..LHD..H..GEN; NGC200..LHD..M..LA;NGC200..RHD..(GEN,LA);NGC200..LHD..IDNP..(H,L)202306

PHILIPPINES

87124GCLAMP, HEATER HOSE, NO.2

main87124-BZ030iNGC200..LHD..H..GEN; NGC200..LHD..M..LA;NGC200..RHD..(GEN,LA);NGC200..LHD..IDNP..(H,L)202306

IDN SOURCED PARTS; PHILIPPINES,IDN SOURCED PARTS

main87124-BZ150iNGC200..TAIW202310

THA SOURCED PARTS

87245LHOSE, HEATER WATER, L

main87245-BZ380iNGC200..RHD..(GEN,LA)202306

main87245-BZ390iNGC200..TAIW202310

main87245-BZ410iNGC200..5F..LA202306

main87245-BZ470iNYC200..RHD..(GEN,LA)202306

main87245-BZ480iNYC200..LHD; NYC200..LHD..GEN202306

PHILIPPINES

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main90466-T0017×2iNYC200..GEN,LA;NGC200..LHD..M..LA;NGC200..RHD..(GEN,LA);NGC200..LHD..IDNP..(H,L)202306

THA SOURCED PARTS

main96136-42101×2iNYC200..GEN,LA;NGC200..LHD..H..GEN;NGC200..RHD..(GEN,LA);NGC200..LHD..(LA,TAIW)202306

JAPAN SOURCED PARTS

87246XHOSE, HEATER WATER

main87246-BZ320iNGC200..RHD..(GEN,LA)202306

L=284

main87246-BZ330iNGC200..TAIW202310

L=309

main87246-BZ350iNGC200..5F..LA202306

L=366.6

main87246-BZ410iNYC200..RHD..(GEN,LA)202306

main87246-BZ420iNYC200..LHD; NYC200..LHD..GEN202306

PHILIPPINES

87247QCLIP, HOSE

main90466-T0020×4iNGC200..LHD..M..LA;NGC200..RHD..(GEN,LA);NGC200..LHD..IDNP..CVT..(H,L); NYC200..GEN,LA;NGC200..5F..LA202306

THA SOURCED PARTS

main96136-42501×2iNGC200..LHD..H..GEN;NGC200..RHD..(GEN,LA);NGC200..LHD..CVT..(LA,TAIW); NYC200..GEN,LA;NGC200..5F..LA202306

JAPAN SOURCED PARTS

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-BZ020iNGC200..LHD..H..GEN; NGC200..LHD..M..LA;NGC200..RHD..(GEN,LA);NGC200..LHD..IDNP..(H,L)202306

PHILIPPINES

9004A11240

main9004A-11240

9167180614

main91671-80614

11 parts on this diagram · 5 diagrams in section
