HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT(FRONT) 0003 1AIR DUCT(REAR) 0006 1AIR DUCT(FRONT) 0007 1AIR DUCT(REAR) 0009 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

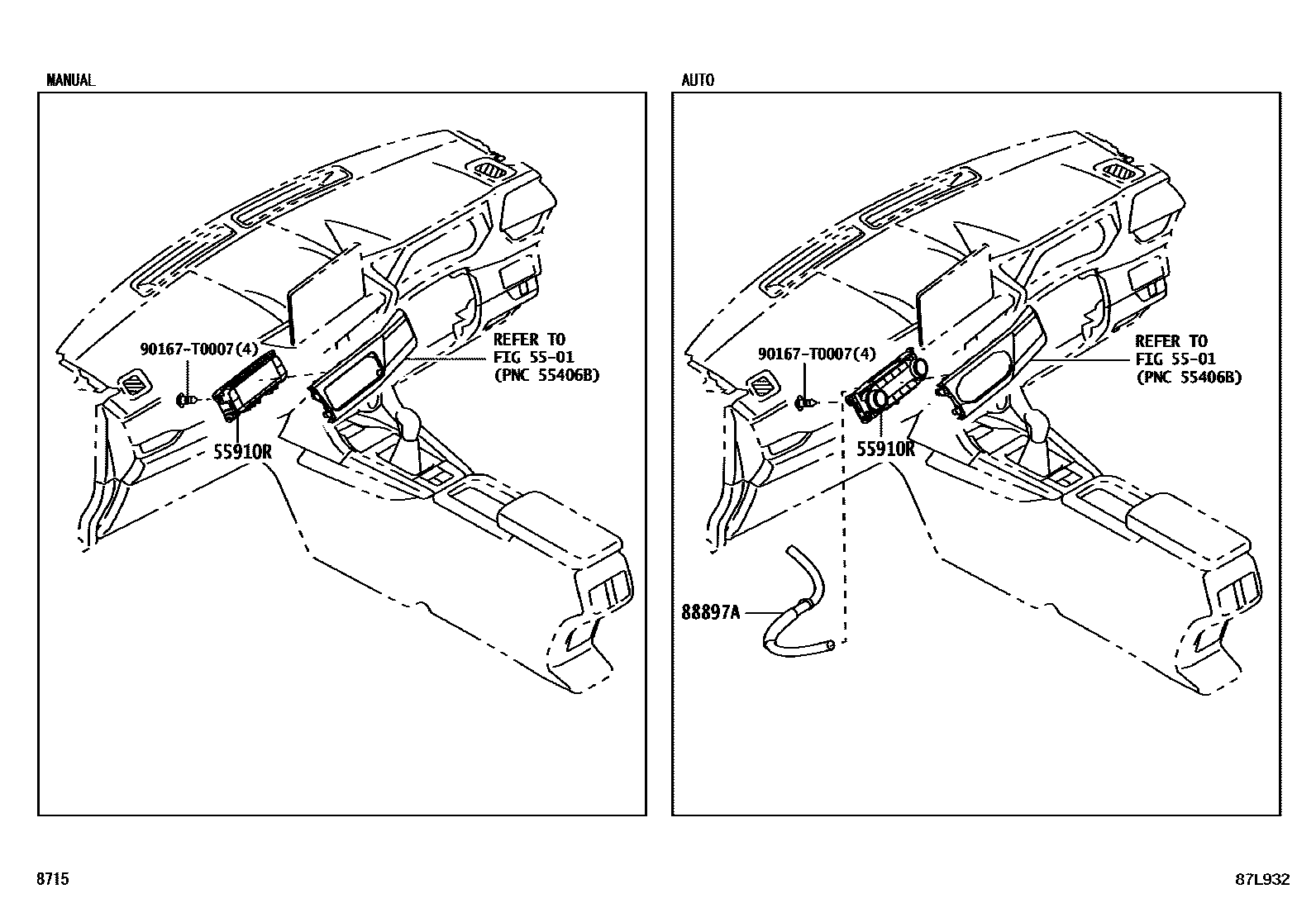

55910RCONTROL ASSY, HEATER

main55910-BZA40iNGC200..5F..LA;NGC200..L..TAIW;NGC200..RHD..M..GEN202306

main55910-BZA50iNGC200..M..IDN202306

main55910-BZB10iNGC200..M..TAIW;NGC200..CVT..L..LA202306

main55910-BZB70iNGC200..LHD..H;NGC200..LHD..M..LA202306-202408

main55910-BZB71iNGC200..LHD..H;NGC200..LHD..M..LA202409

main55910-BZB80iNGC200..H..(IDN,MA)202306-202408

main55910-BZB81iNGC200..H..(IDN,MA)202409

main55910-BZB90iNYC200..IDN,MA202306-202408

main55910-BZB91iNYC200..IDN,MA202409

main55910-BZC00iNYC200..TH202310-202312

main55910-BZC01iNYC200..TH202401

main55910-BZC10iNYC200..LHD202306-202408

main55910-BZC11iNYC200..LHD202409

main55910-BZC20iNGC200..RHD..LA;NGC200..RHD..H..GEN202306-202408

main55910-BZC21iNGC200..RHD..LA;NGC200..RHD..H..GEN202409

main55910-BZC30iNYC200..RHD..(GEN,LA)202306-202408

main55910-BZC31iNYC200..RHD..(GEN,LA)202409

main55910-BZC70iNGC200..LHD..H..GEN; NGC200..LHD..M..GEN202306-202408

PHILIPPINES

main55910-BZC71iNGC200..LHD..H..GEN; NGC200..LHD..M..GEN202409

PHILIPPINES

main55910-BZD40iNYC200..LHD..GEN202306-202408

PHILIPPINES

main55910-BZD41iNYC200..LHD..GEN202409

PHILIPPINES

88897APIPE, ASPIRATOR

main88505-BZ030iNGC200..H..TAIW202310

main88505-BZ050iNYC200..TH202310

90167T0007

main90167-T0007

4 parts on this diagram · 6 diagrams in section
