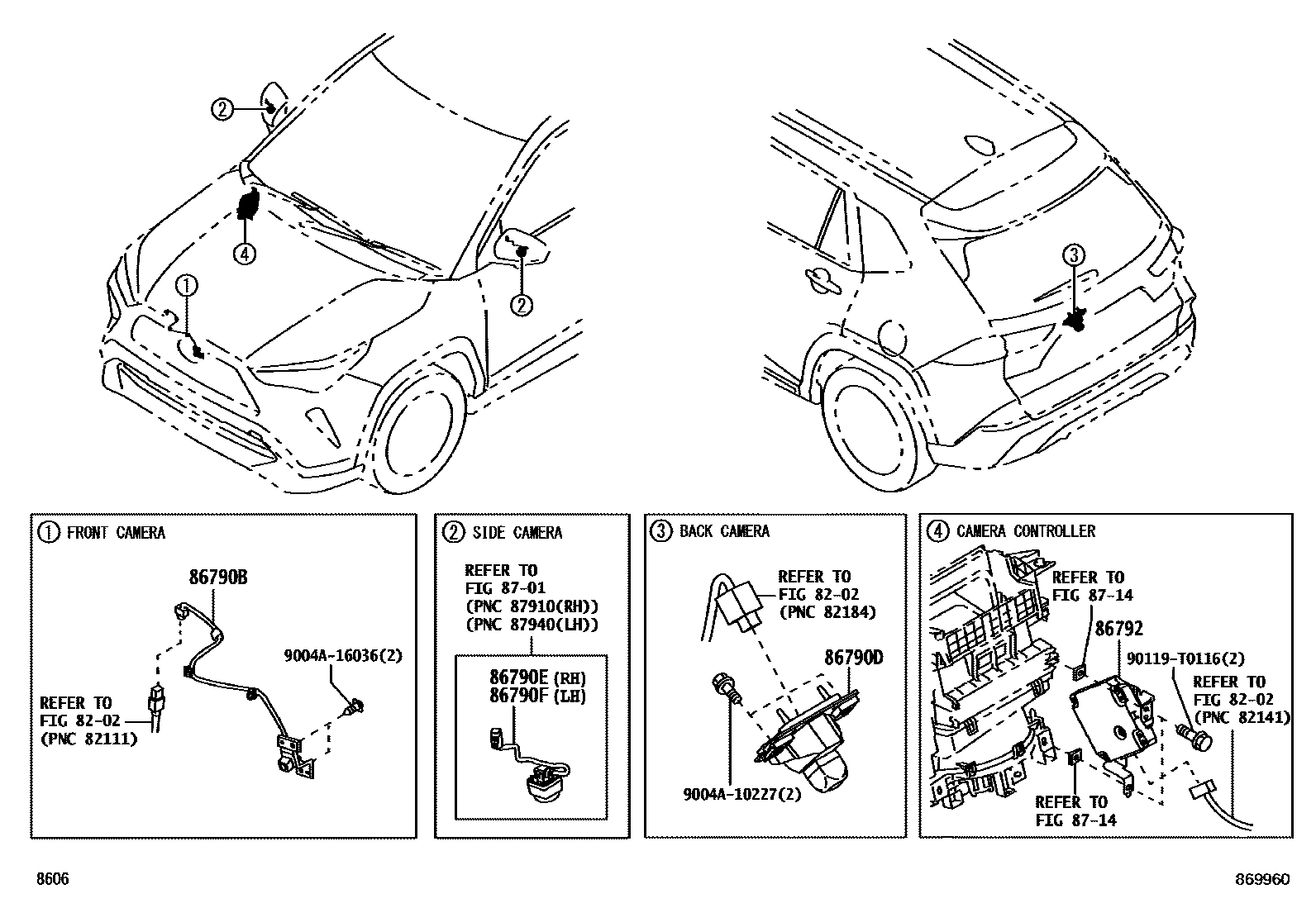

CAMERA & REAR MONITOR DISPLAY

0001 1LHD 0002 1RHD

8202WIRING & CLAMP

→ Go to FIG 82-02

86790BCAMERA ASSY, TELEVISION, FR

main86790-BZ320iNYC200..H;NGC200..RHD..H..GEN202306-202403

PHILIPPINES

main86790-BZ320iNYC200..H;NGC200..RHD..H..GEN202306-202403

VIETNAM

main86790-BZ321iNYC200..H;NGC200..RHD..H..(GEN,MA)202404

PHILIPPINES

main86790-BZ321iNYC200..H;NGC200..RHD..H..(GEN,MA)202404

VIETNAM

86790DCAMERA ASSY, TELEVISION, RR

main86790-BZ310iNYC200..RHD;NYC200..LHD..(H,M);NGC200..(H,M)..(GEN,LA,MA)202306

DESTINATION PACKAGE(OTHER-PERU

main86790-BZ310iNYC200..RHD;NYC200..LHD..(H,M);NGC200..(H,M)..(GEN,LA,MA)202306

DESTINATION PACKAGE(OTHER-PANAMA

main86790-BZ310iNYC200..RHD;NYC200..LHD..(H,M);NGC200..(H,M)..(GEN,LA,MA)202306

DESTINATION PACKAGE(OTHER-BOLIVIA

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-BZ290iNYC200..H;NGC200..RHD..H..(GEN,MA)202306

PHILIPPINES

main86790-BZ290iNYC200..H;NGC200..RHD..H..(GEN,MA)202306

VIETNAM

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-BZ290iNYC200..H;NGC200..RHD..H..(GEN,MA)202306

PHILIPPINES

main86790-BZ290iNYC200..H;NGC200..RHD..H..(GEN,MA)202306

VIETNAM

86792CONTROLLER, TELEVISION CAMERA

main86792-B1190iNYC200..LHD..GEN202306

PHILIPPINES

main86792-B1190iNYC200..LHD..GEN202306

VIETNAM

main86792-B1200iNGC200..RHD..H..GEN;NYC200..RHD..(IDNP,THP)..H202306

8701MIRROR

→ Go to FIG 87-01

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

9004A10227

main9004A-10227

9004A16036

main9004A-16036

90119T0116

main90119-T0116

11 parts on this diagram · 2 diagrams in section
