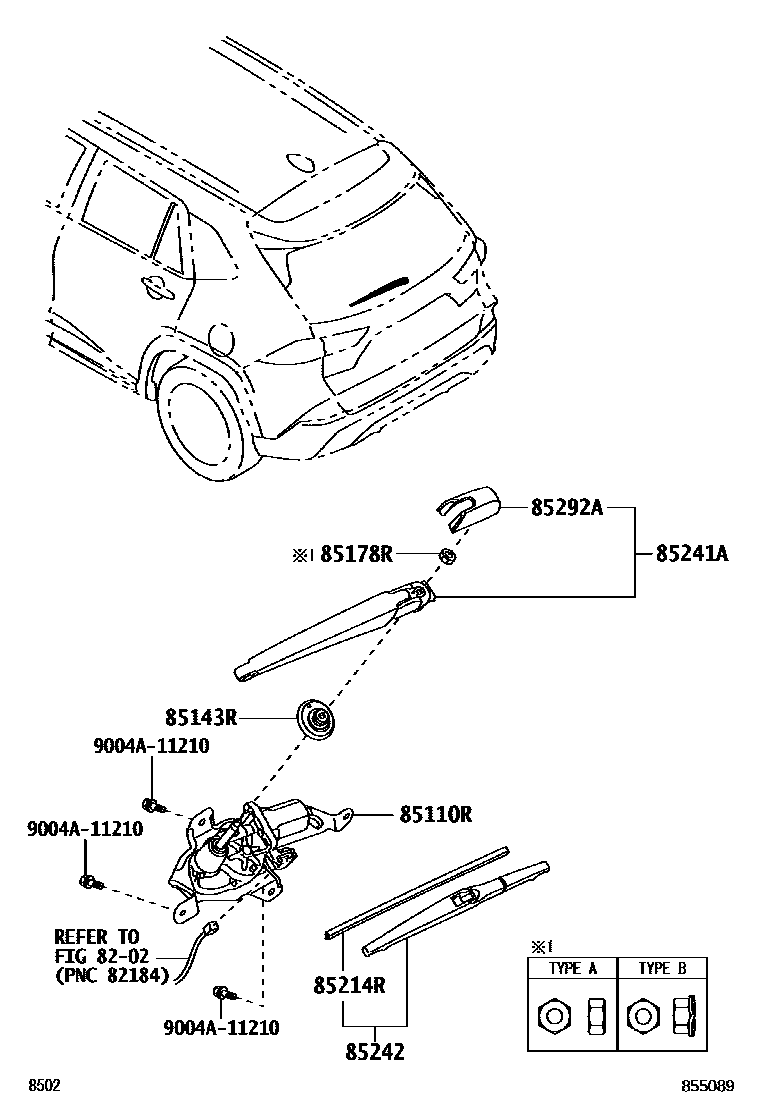

REAR WIPER

8202WIRING & CLAMP

→ Go to FIG 82-02

85110RMOTOR ASSY, REAR WIPER

main85130-BZ260iNGC200,NYC200..IDNP,THP202306

85143RGROMMET, REAR WIPER MOTOR

main85143-0K030iNGC200,NYC200..IDNP,THP202306

85178RNUT (FOR REAR WIPER ARM SETTING)

main9004A-17218iNGC200,NYC200..IDNP,THP202306

TYPE A

main90182-T0005iNGC200..TAIW202310

TYPE B

85214RRUBBER, REAR WIPER

main85243-BZ150iNGC200,NYC200..IDNP,THP202306

85241AARM, REAR WIPER

main85241-BZ200iNGC200,NYC200..IDNP,THP202306

85242BLADE, RR WIPER

main85242-BZ200iNGC200,NYC200..IDNP,THP202306

85292ACAP, REAR WIPER ARM HEAD

main85292-BZ080iNGC200,NYC200..IDNP,THP202306

9004A11210

main9004A-11210

9 parts on this diagram · 1 diagram in section
