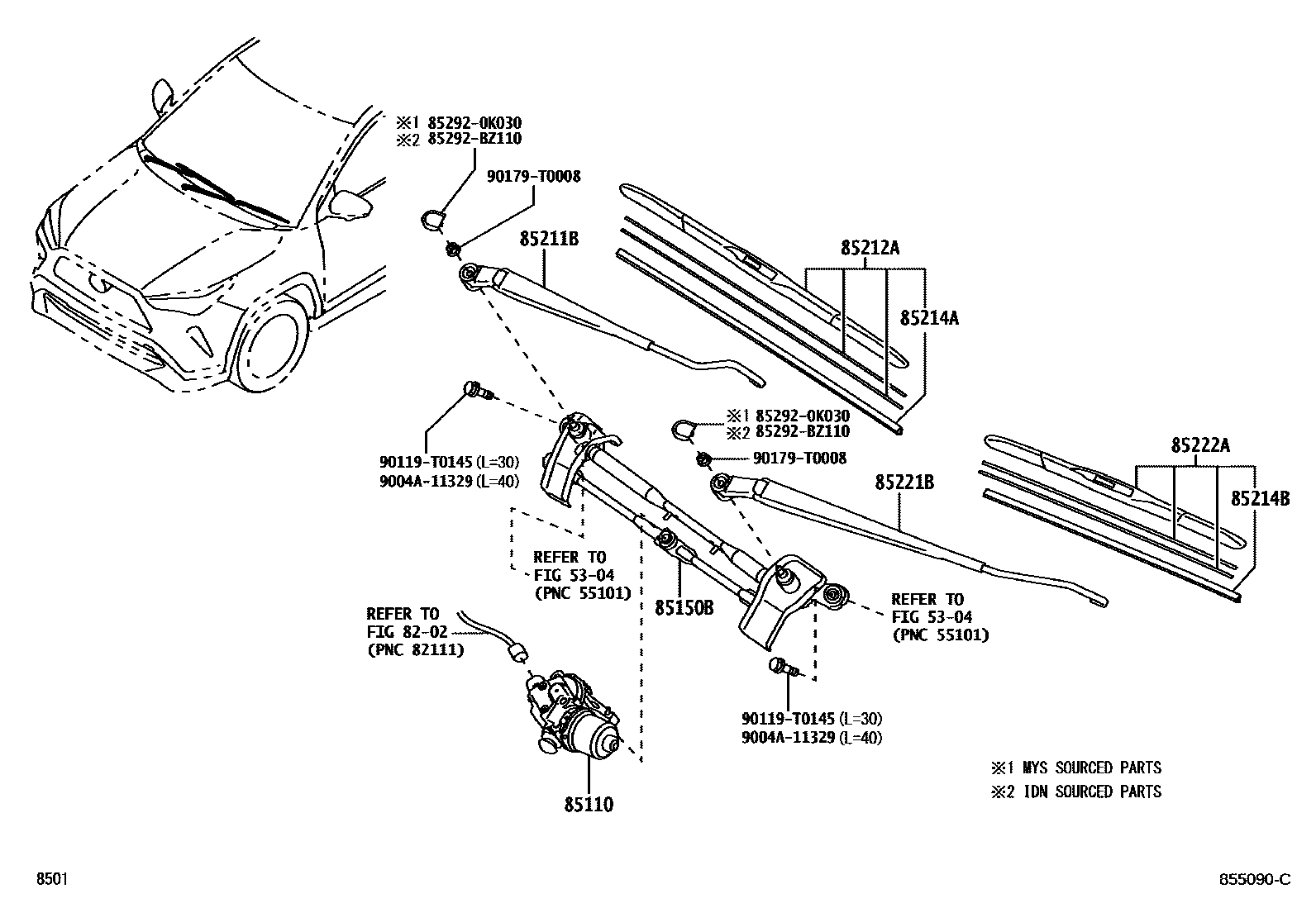

WINDSHIELD WIPER

0001 1 0002 1

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

8202WIRING & CLAMP

→ Go to FIG 82-02

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-BZ350iNGC200,NYC200..RHD..(IDNP,THP)202306

main85110-BZ360iNGC200,NYC200..LHD..IDNP202306

85150BLINK ASSY, WIPER

main85150-BZ410iNGC200,NYC200..MA202406

main85150-BZ420iNGC200..TAIW202310

85211BARM, FRONT WIPER, RH

main85211-BZ430iNGC200,NYC200..RHD..(IDNP,THP)202306

main85221-BZ440iNGC200..TAIW202310

85212ABLADE, FR WIPER, RH

main85212-B1050iNGC200,NYC200..MA202406

main85222-B1150iNGC200,NYC200..LHD..IDNP202306

85214ARUBBER, WIPER, RH

main85214-B1070iNGC200,NYC200..LHD..IDNP202306

main85214-B2290iNGC200,NYC200..RHD..(IDNP,THP)202306

85214BRUBBER, WIPER, LH

main85214-B1070iNGC200,NYC200..MA202406

main85214-B2290iNGC200..TAIW202310

85221BARM, FRONT WIPER, LH

main85211-BZ440iNGC200,NYC200..LHD..IDNP202306

main85221-BZ430iNGC200,NYC200..RHD..(IDNP,THP)202306

85222ABLADE, FR WIPER, LH

main85212-B1130iNGC200,NYC200..LHD..IDNP202306

main85222-B1140iNGC200,NYC200..RHD..(IDNP,THP)202306

852920K030PACKING, WINDSHIELD WIPER MOTOR

main85292-0K030

85292BZ110PACKING, WINDSHIELD WIPER MOTOR

main85292-BZ110

9004A11329

main9004A-11329

90119T0145

main90119-T0145

90179T0008

main90179-T0008

15 parts on this diagram · 2 diagrams in section
