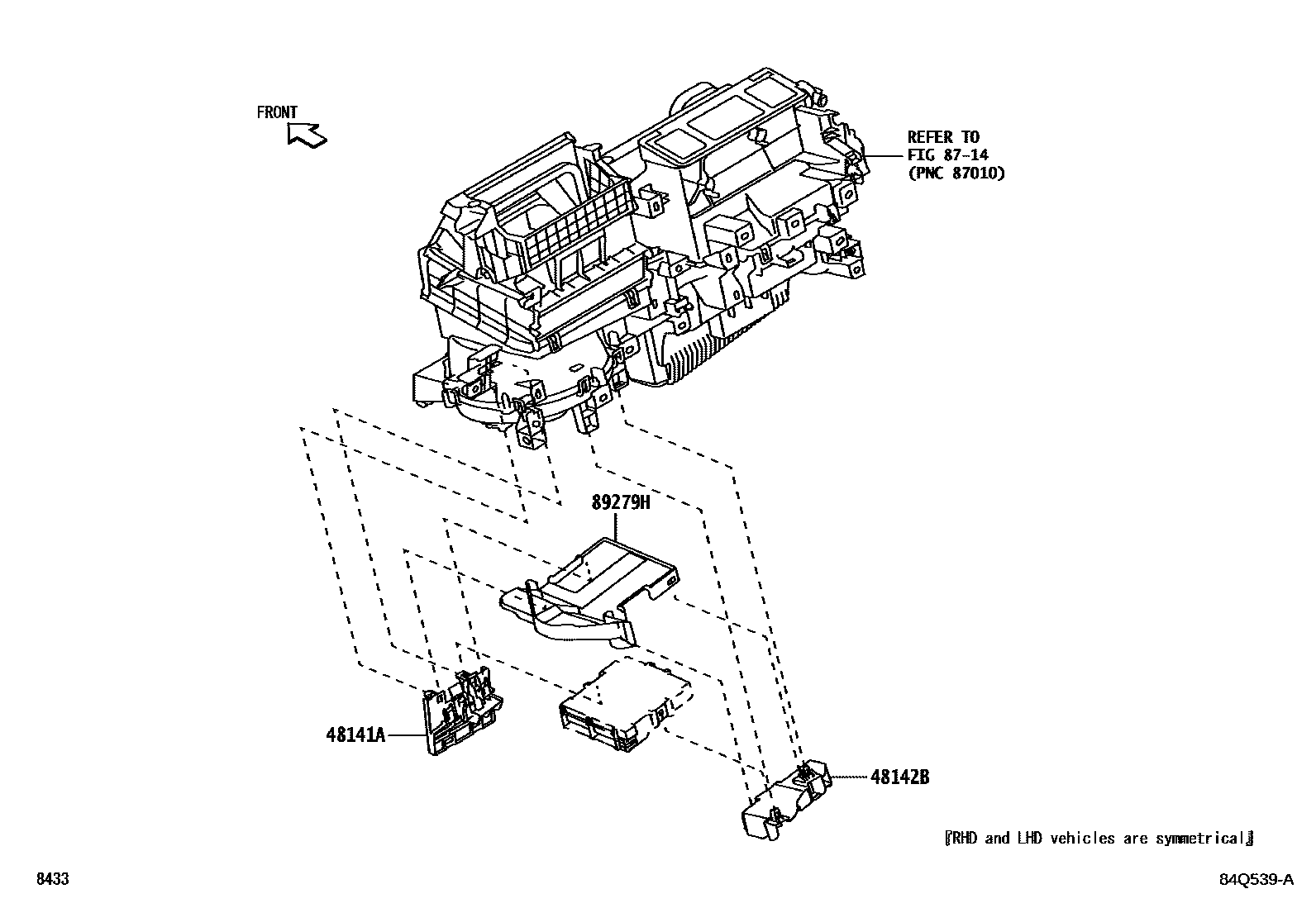

HEV CONTROL COMPUTER

0001 1 0002 1

48141ACLIP, FRONT SPRING, NO.1

main48141-BZ010iNYC200..RHD..(IDNP,THP)202306

main48141-BZ020iNYC200..LHD202306

48142BCLIP, FRONT SPRING, NO.2

main48142-BZ010iNYC200..MA202406

main48142-BZ020iNYC200..LHD202306

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

89279HCOVER, COMPUTER

main89279-BZ080iNYC200..MA202406

main89279-BZ120iNYC200..LHD202306

4 parts on this diagram · 2 diagrams in section
