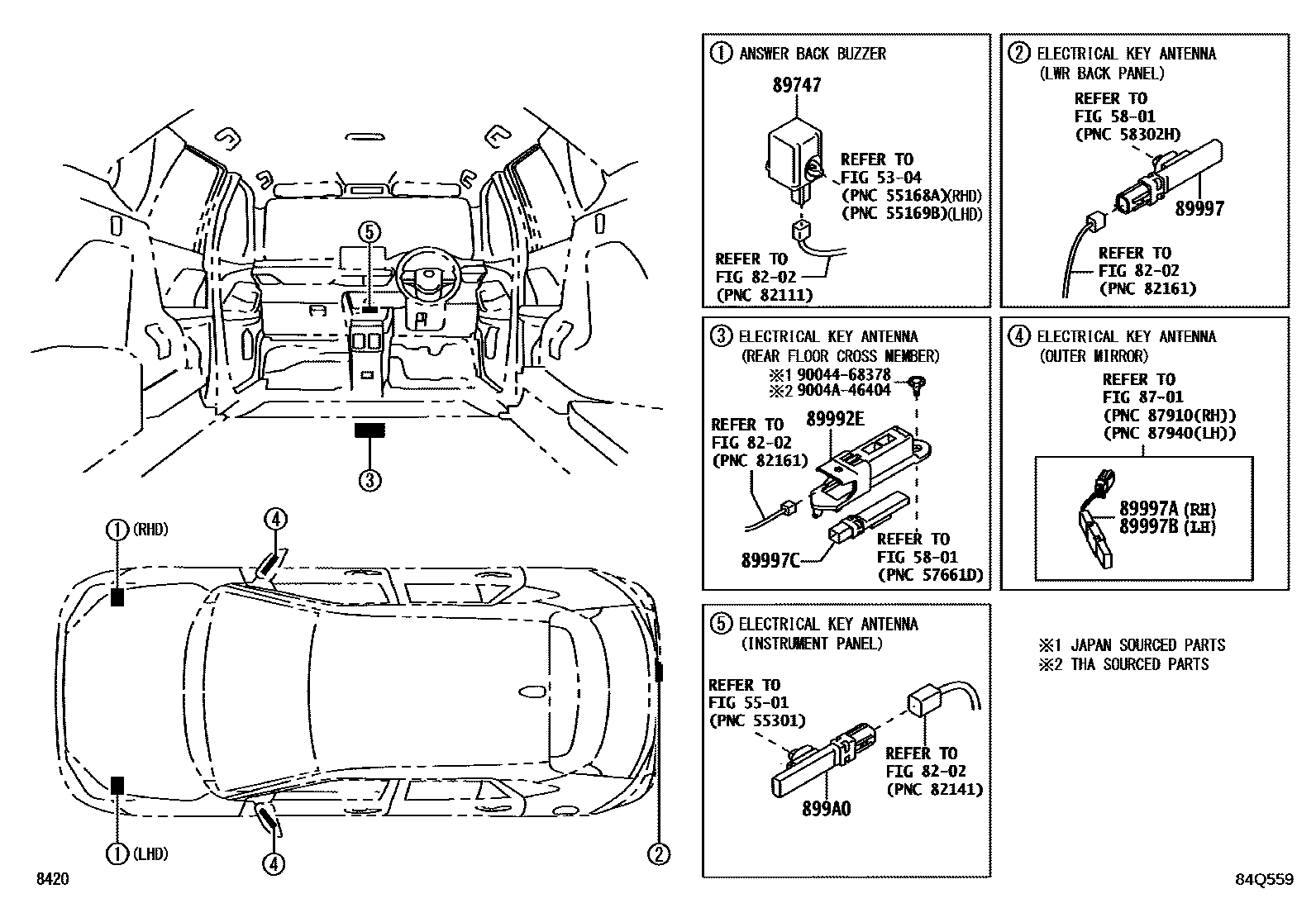

WIRELESS DOOR LOCK

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8202WIRING & CLAMP

→ Go to FIG 82-02

8701MIRROR

→ Go to FIG 87-01

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iNGC200,NYC200..IDNP,THP202306

89992ECASE, LESS OSCILLATOR ELECTRICAL KEY

main89992-BZ030iNGC200,NYC200..IDNP202306

main89992-BZ040iNGC200,NYC200..MA202406

main89992-BZ060iNYC200..TH202310

89997ANTENNA, ELECTRICAL KEY

main89997-BZ060iNYC200..LHD..(H,M);NGC200..IDNP..(H,M);NYC200..RHD..(IDNP,THP)202306

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-BZ020iNGC200..(H,M)..TAIW202310

RH

89997BANTENNA, ELECTRICAL KEY, NO.3

main89997-BZ020iNYC200..LHD..(H,M);NGC200..IDNP..(H,M);NYC200..RHD..(IDNP,THP)202306

LH

89997CANTENNA, ELECTRICAL KEY, NO.4

main89997-BZ030iNGC200,NYC200..IDNP,THP202306

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main89997-BZ010iNGC200,NYC200..IDNP,THP202306

9004468378

main90044-68378

9004A46404

main9004A-46404

14 parts on this diagram · 1 diagram in section
