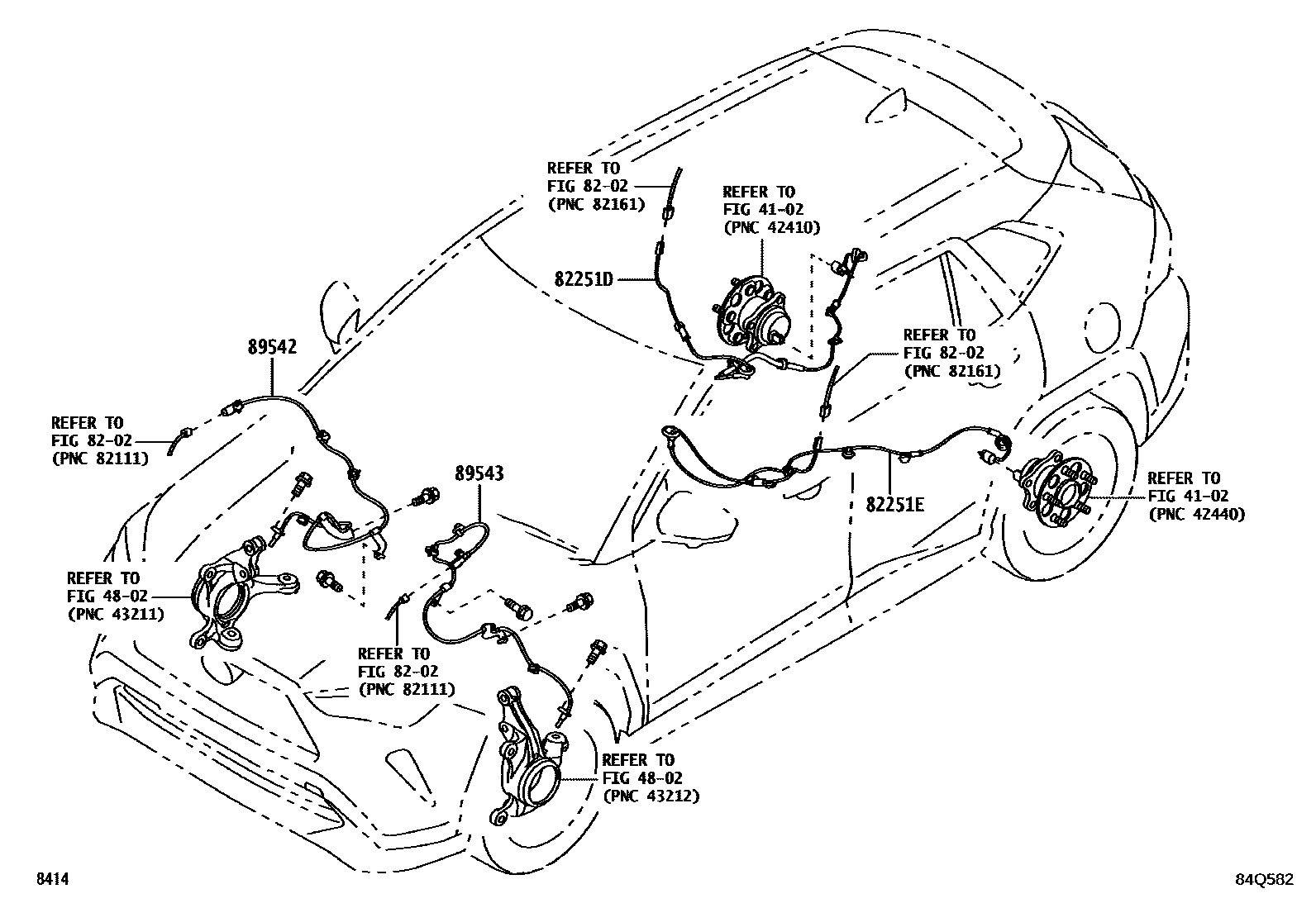

Toyota YARIS CROSS — ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

8202WIRING & CLAMP

→ Go to FIG 82-02

82251DWIRE, SPEED SENSOR, RH

82251EWIRE, SPEED SENSOR, LH

89542SENSOR, SPEED, FRONT RH

89542-BZ260

89543SENSOR, SPEED, FRONT LH

89543-BZ260

7 parts on this diagram · 2 diagrams in section

ABS & VSC for Toyota YARIS CROSS

This section contains 10 genuine Toyota parts for the ABS & VSC system of the Toyota YARIS CROSS. Key components include: REAR AXLE SHAFT & HUB, BRAKE PEDAL & BRACKET, FRONT AXLE ARM & STEERING KNUCKLE, WIRING & CLAMP, WIRE, SPEED SENSOR, RH.
