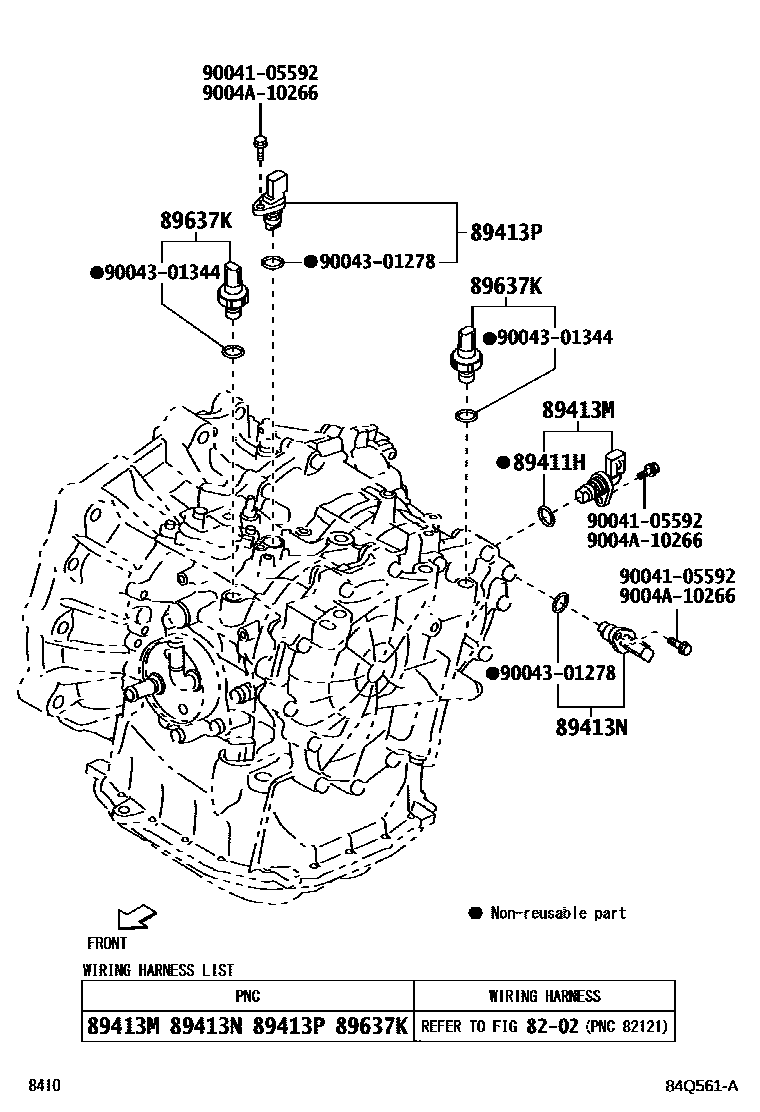

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

8202WIRING & CLAMP

→ Go to FIG 82-02

89411HRING, O

main90043-01278iNGC200..IDNP..CVT202306

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-B2030iNGC200..CVT202306

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-B2020iNGC200..CVT202306

89413PSENSOR, TRANSMISSION REVOLUTION, (NIN)

main89413-B2020iNGC200..CVT202306

89637KSENSOR, OIL PRESSURE

main89637-B2030×2iNGC200..CVT202306

9004105592

main90041-05592

9004301278

main90043-01278

9004301344

main90043-01344

9004A10266

main9004A-10266

10 parts on this diagram · 1 diagram in section
