METER

0001 1 0004 1

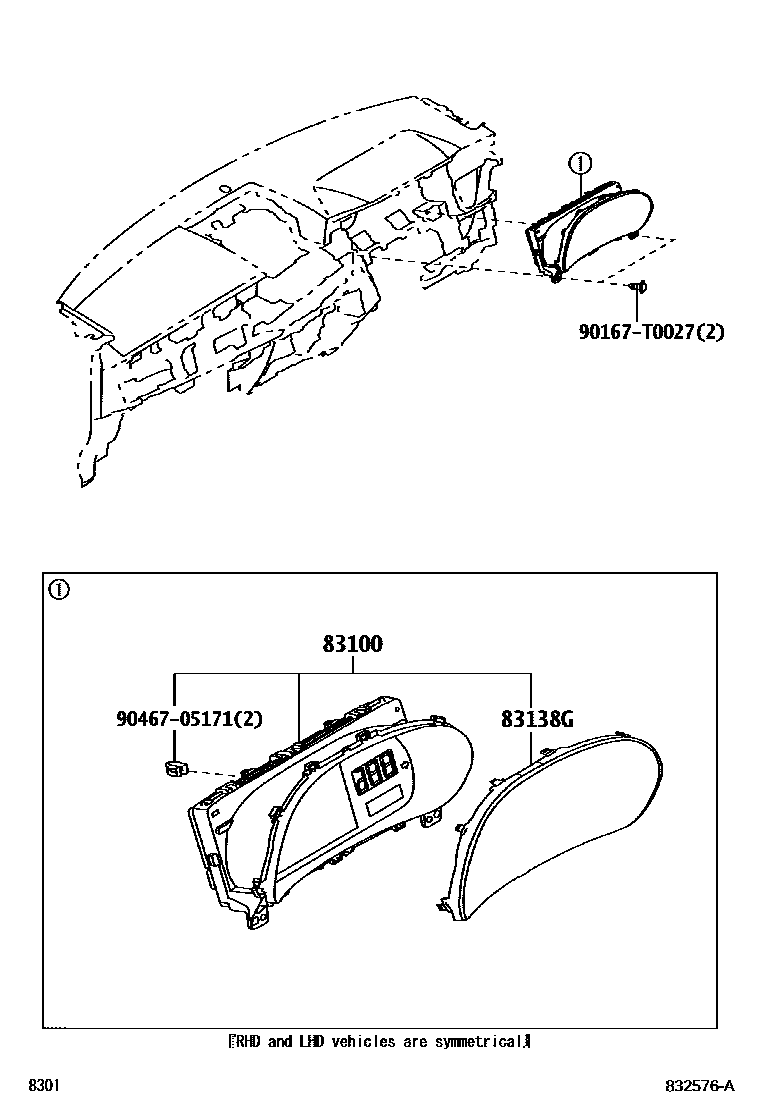

83100METER ASSY, COMBINATION

main83800-BX310iNGC200..5F..LA202306

CONTINENTAL

main83800-BX320iNGC200..CVT..L202306-202309

CONTINENTAL,W/PART NUMBER LABEL

main83800-BX330iNGC200..M..TAIW202310-202409

CONTINENTAL

main83800-BX331iNGC200..M..TAIW202410

CONTINENTAL

main83800-BX340iNGC200..5F..IDN202306

DENSO

main83800-BX350iNGC200..LHD..GEN202306

DENSO

main83800-BX360iNGC200..H..TAIW;NGC200..LHD..M..LA; NGC200..LHD..H..GEN202306

DENSO; DENSO,PHILIPPINES; DENSO,VIETNAM

main83800-BX370iNGC200..RHD..CVT..M..(GEN,IDN)202306

DENSO

main83800-BX380iNGC200..RHD..H;NGC200..RHD..LA202306

DENSO

main83800-BX420iNYC200..LHD202306

DENSO

main83800-BX430iNYC200..RHD..(IDNP,MAP)202306

DENSO

main83800-BX730iNGC200..CVT..L202309-202409

CONTINENTAL,W/PART NUMBER LABEL

main83800-BX731iNGC200..CVT..L202410

CONTINENTAL

main83800-BYJ70iNYC200..TH202310

DENSO

83138GGLASS, COMBINATION METER

main83852-BZ230iNYC200..IDNP;NGC200..IDNP..(H,M)202306

main83852-BZ250iNGC200..(L,M)..TAIW202310

main83852-BZ260iNYC200..TH202310

90167T0027

main90167-T0027

9046705171

main90467-05171

4 parts on this diagram · 2 diagrams in section
