WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1D00R&ROOF 0008 1FL00R 0009 1FL00R 0010 1FLOOR 0011 1FLOOR 0012 1HIGH TENSION CABLE 0013 1SEAT

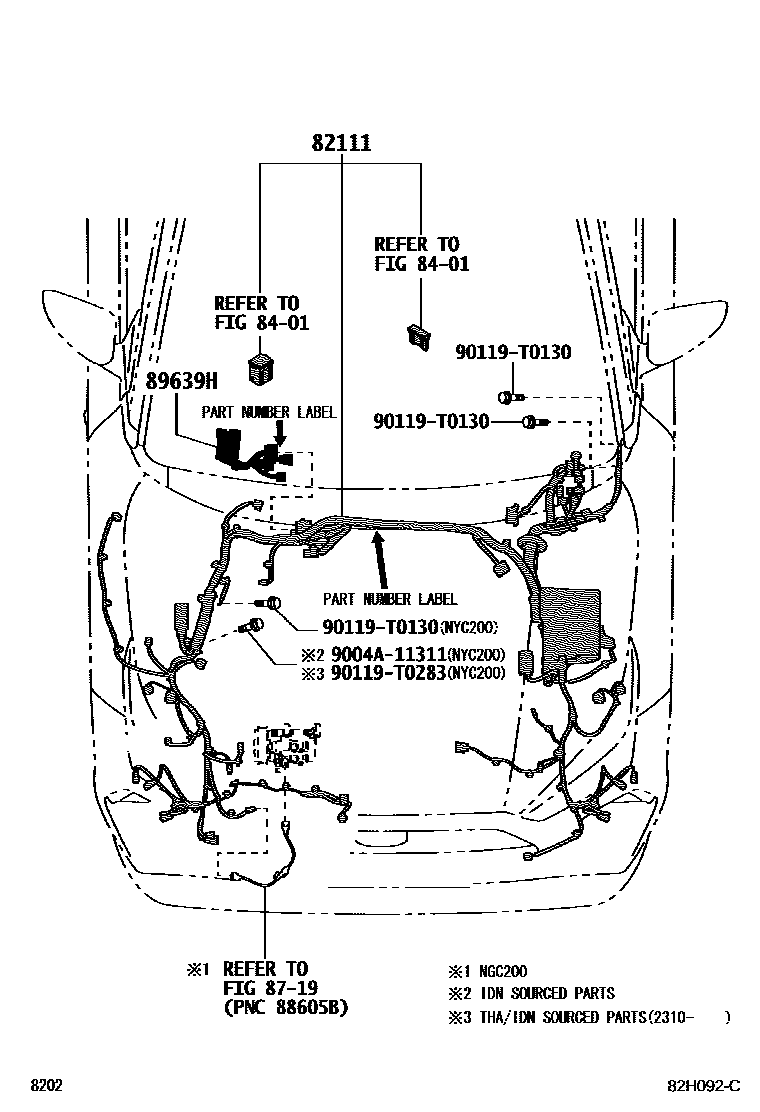

82111WIRE, ENGINE ROOM MAIN

main82111-BYC30iNYC200..LHD..GEN202306

main82111-BYG70iNGC200..IDN202306

main82111-BYJ00iNYC200..RHD..GEN202306

main82111-BYJ20iNGC200..L..LA202306

DESTINATION PACKAGE(OTHER-BOLIVIA

main82111-BYJ20iNGC200..LHD..M..LA202306

DESTINATION PACKAGE(OTHER-PERU

main82111-BYJ20iNGC200..LHD..M..LA202306

DESTINATION PACKAGE(OTHER-COSTA RICA

main82111-BYJ40iNGC200..LHD..IDNP..(H,M)202306

main82111-BYJ70iNYC200..LHD..M202306

main82111-BYK90iNGC200..RHD..M..(GEN,LA)202306

main82111-BYL00iNGC200..RHD..H..GEN202306

main82111-BYL30iNYC200..RHD..LA202306

main82111-BYL80iNYC200..L..LA202306

main82111-BYQ00iNYC200..L..TH202310

main82111-BYQ10iNYC200..M..TH202310

main82111-BYQ20iNYC200..H..TH202310

main82111-BYQ30iNGC200..TAIW202310

main82111-BYT50iNGC200..MA202406

main82111-BYT60iNYC200..MA202406

main82111-BYT70iNYC200..IDN202306

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

89639HWIRE, BRAKE CONTROL

main89639-BZ020iNYC200..RHD..(IDNP,THP)202306

main89639-BZ030iNYC200..LHD202306

main89639-BZ040iNYC200..MA202406

9004A11311

main9004A-11311

90119T0130

main90119-T0130

90119T0283

main90119-T0283

7 parts on this diagram · 13 diagrams in section
