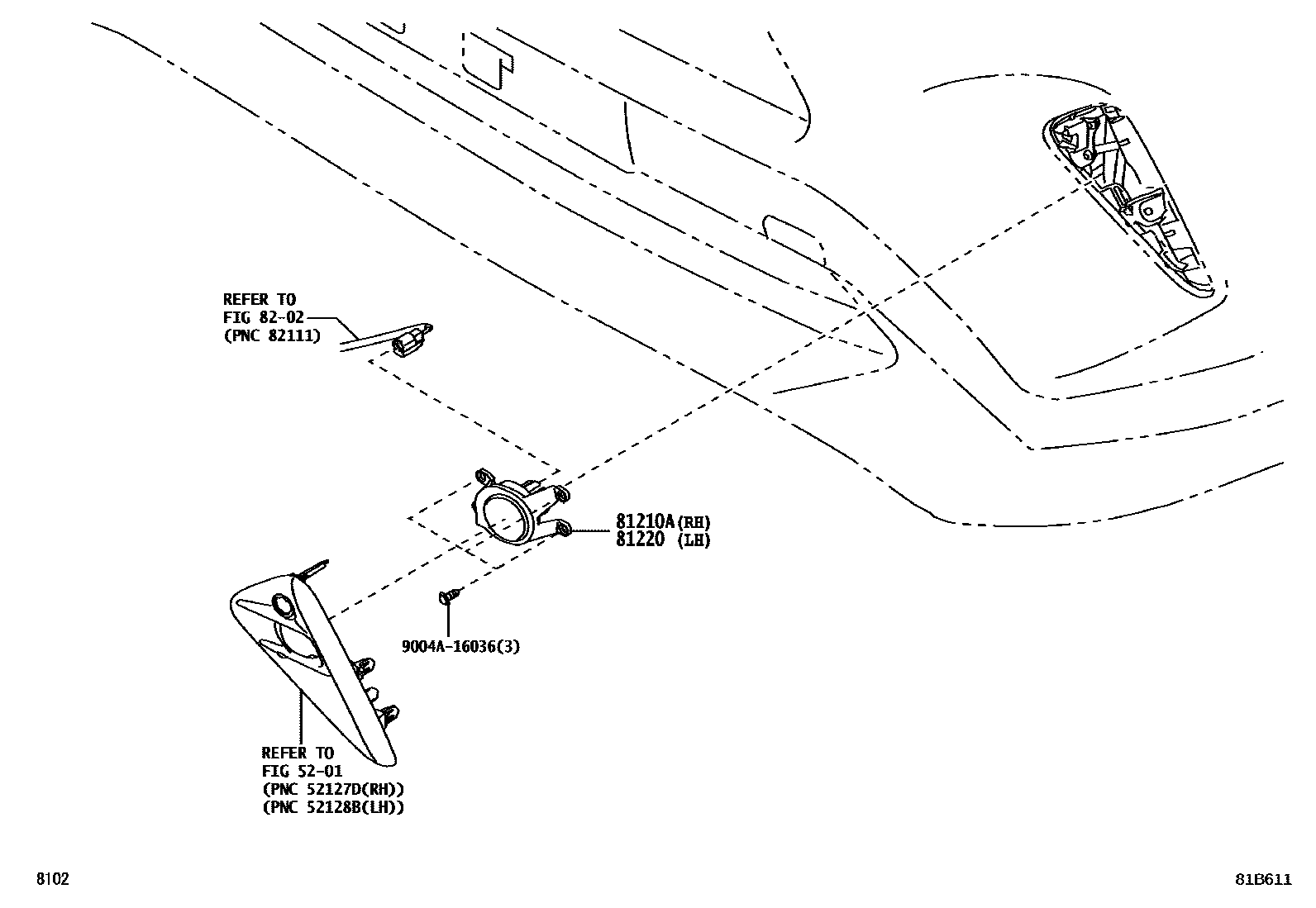

FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-02220iNYC200..TH202310

main81210-02230iNGC200..H..TAIW202310

main81210-0K170iNGC200,NYC200..IDNP202306

main81210-0K180iNGC200,NYC200..MA202406

81220LAMP ASSY, FOG, LH

main81220-02150iNYC200..TH202310

main81220-02170iNGC200..H..TAIW202310

main81220-0K170iNGC200,NYC200..IDNP202306

main81220-0K180iNGC200,NYC200..MA202406

8202WIRING & CLAMP

→ Go to FIG 82-02

9004A16036

main9004A-16036

5 parts on this diagram · 1 diagram in section
