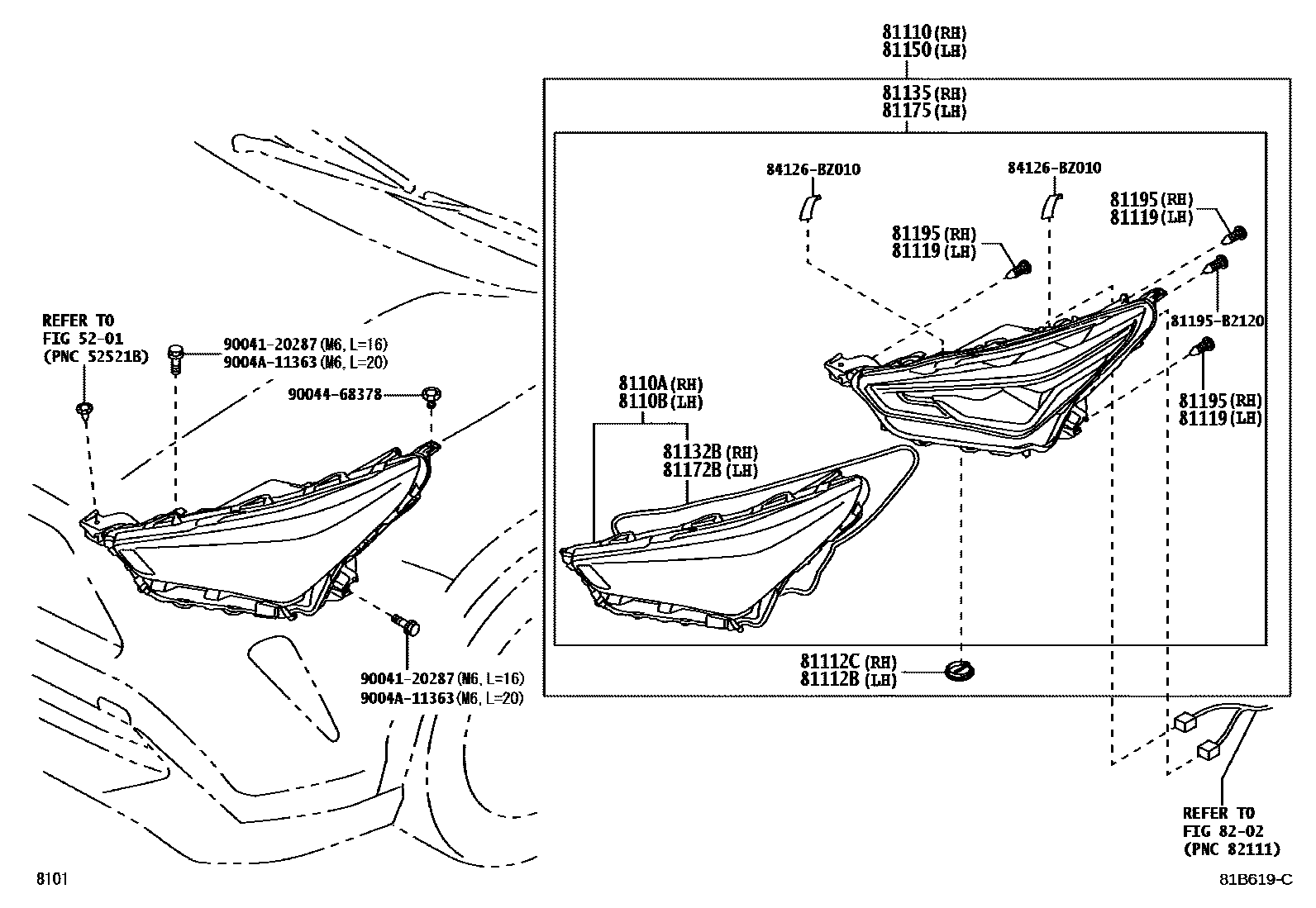

HEADLAMP

0001 1 0002 1 0003 1 0004 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-BZ180iNGC200..M..LA;NGC200..IDNP..H;NYC200..IDNP..(H,M)202306

main8110A-BZ190iNGC200..M..(GEN,IDN);NGC200,NYC200..L..LA202306

main8110A-BZ220iNYC200..H..TH202310

main8110A-BZ230iNYC200..(L,M)..TH202310

main8110A-BZ260iNGC200,NYC200..MA202406

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-BZ180iNGC200..M..LA;NGC200..IDNP..H;NYC200..IDNP..(H,M)202306

main8110B-BZ190iNGC200..M..(GEN,IDN);NGC200,NYC200..L..LA202306

main8110B-BZ220iNYC200..H..TH202310

main8110B-BZ230iNYC200..(L,M)..TH202310

main8110B-BZ260iNGC200,NYC200..MA202406

81110HEADLAMP ASSY, RH

main81110-BZD90iNGC200..RHD..M..(GEN,IDN)202306

main81110-BZE00iNGC200..LHD..M..GEN;NGC200,NYC200..L..LA202306

main81110-BZE50iNGC200..RHD..LA;NYC200..RHD..IDNP;NGC200..RHD..IDNP..H; NYC200..LHD..M202306

DESTINATION PACKAGE(OTHER-BAHAMAS

main81110-BZE70iNGC200..LHD..M..LA;NYC200..LHD..(H,M);NGC200..LHD..H..GEN202306

main81110-BZF80iNGC200,NYC200..MA202406

main81110-BZG20iNGC200..(L,M)..TAIW202310

main81110-BZG30iNGC200..H..TAIW202310

main81110-BZG50iNYC200..(L,M)..TH202310

main81110-BZG60iNYC200..H..TH202310

81112BRING, COVER

main81112-B2010iNGC200,NYC200202306

81112CRING, COVER, RH

main81112-B2010iNGC200,NYC200202306

81119SCREW, HEADLAMP

main81195-B2020×3iNGC200,NYC200202306

81132BGASKET, HEADLAMP LENS

main81132-B2010iNGC200,NYC200..IDNP,MAP,THP202306

81135UNIT ASSY, HEADLAMP, RH

main81130-BZ550iNGC200..RHD..LA;NYC200..RHD..IDNP;NGC200..RHD..IDNP..H; NYC200..LHD..M202306

DESTINATION PACKAGE(OTHER-BAHAMAS

main81130-BZ560iNGC200..LHD..M..LA;NYC200..LHD..(H,M);NGC200..LHD..H..GEN202306

main81130-BZ570iNGC200..RHD..M..(GEN,IDN)202306

main81130-BZ580iNGC200..LHD..M..GEN;NGC200,NYC200..L..LA202306

main81130-BZ590iNYC200..H..TH202310

main81130-BZ640iNYC200..(L,M)..TH202310

main81130-BZ680iNGC200..H..TAIW202310

main81130-BZ690iNGC200..(L,M)..TAIW202310

main81130-BZ700iNGC200,NYC200..MA202406

81150HEADLAMP ASSY, LH

main81150-BZD90iNGC200..RHD..M..(GEN,IDN)202306

main81150-BZE00iNGC200..LHD..M..GEN;NGC200,NYC200..L..LA202306

main81150-BZE50iNGC200..RHD..LA;NYC200..RHD..IDNP;NGC200..RHD..IDNP..H; NYC200..LHD..M202306

DESTINATION PACKAGE(OTHER-BAHAMAS

main81150-BZE70iNGC200..LHD..M..LA;NYC200..LHD..(H,M);NGC200..LHD..H..GEN202306

main81150-BZF80iNGC200,NYC200..MA202406

main81150-BZG20iNGC200..(L,M)..TAIW202310

main81150-BZG30iNGC200..H..TAIW202310

main81150-BZG50iNYC200..(L,M)..TH202310

main81150-BZG60iNYC200..H..TH202310

81172BGASKET, HEADLAMP LENS

main81132-B2010iNGC200,NYC200..IDNP,MAP,THP202306

81175UNIT ASSY, HEADLAMP, LH

main81170-BZ550iNGC200..RHD..LA;NYC200..RHD..IDNP;NGC200..RHD..IDNP..H; NYC200..LHD..M202306

DESTINATION PACKAGE(OTHER-BAHAMAS

main81170-BZ560iNGC200..LHD..M..LA;NYC200..LHD..(H,M);NGC200..LHD..H..GEN202306

main81170-BZ570iNGC200..RHD..M..(GEN,IDN)202306

main81170-BZ580iNGC200..LHD..M..GEN;NGC200,NYC200..L..LA202306

main81170-BZ590iNYC200..H..TH202310

main81170-BZ640iNYC200..(L,M)..TH202310

main81170-BZ680iNGC200..H..TAIW202310

main81170-BZ690iNGC200..(L,M)..TAIW202310

main81170-BZ700iNGC200,NYC200..MA202406

81195SCREW, HEADLAMP

main81195-B2020×3iNGC200,NYC200202306

8202WIRING & CLAMP

→ Go to FIG 82-02

81195B2120SCREW, HEADLAMP

main81195-B2120

84126BZ010SPRING

main84126-BZ010

9004120287

main90041-20287

9004468378

main90044-68378

9004A11363

main9004A-11363

19 parts on this diagram · 4 diagrams in section
