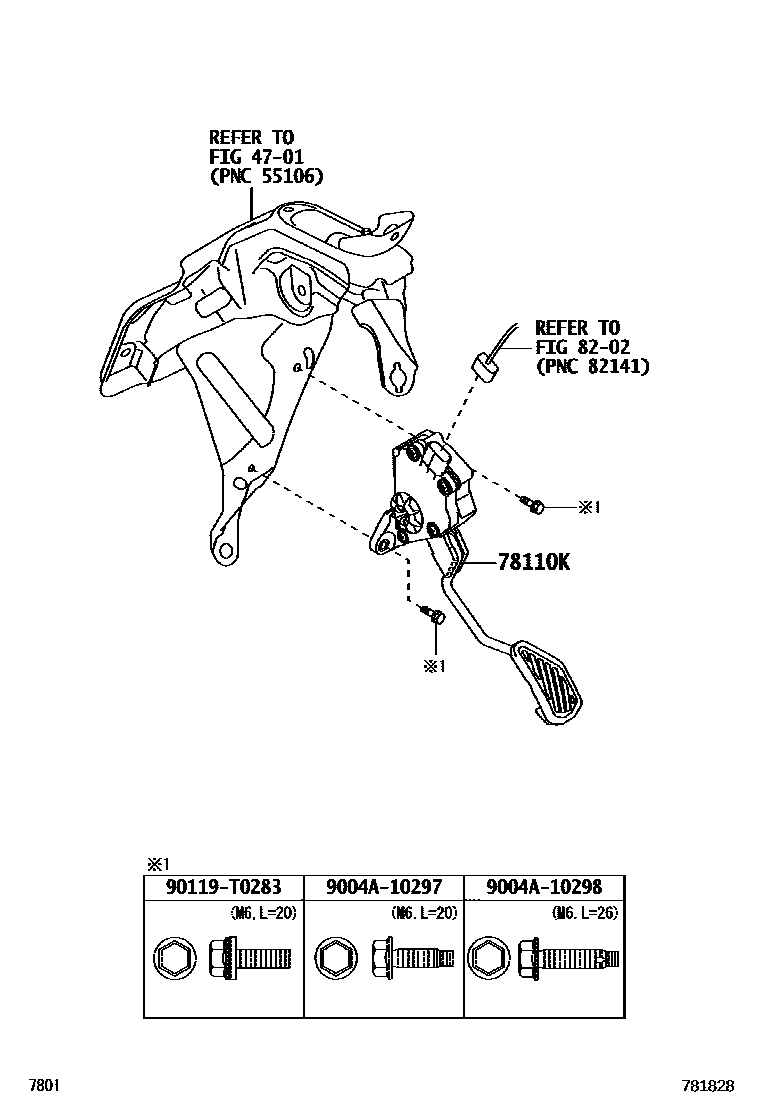

ACCELERATOR LINK

0001 1 0002 1

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-BZ130iNGC200,NYC200..LHD..IDNP202306

main78110-BZ200iNGC200,NYC200..RHD..(IDNP,THP)202306

8202WIRING & CLAMP

→ Go to FIG 82-02

9004A10297

main9004A-10297

9004A10298

main9004A-10298

90119T0283

main90119-T0283

6 parts on this diagram · 2 diagrams in section
