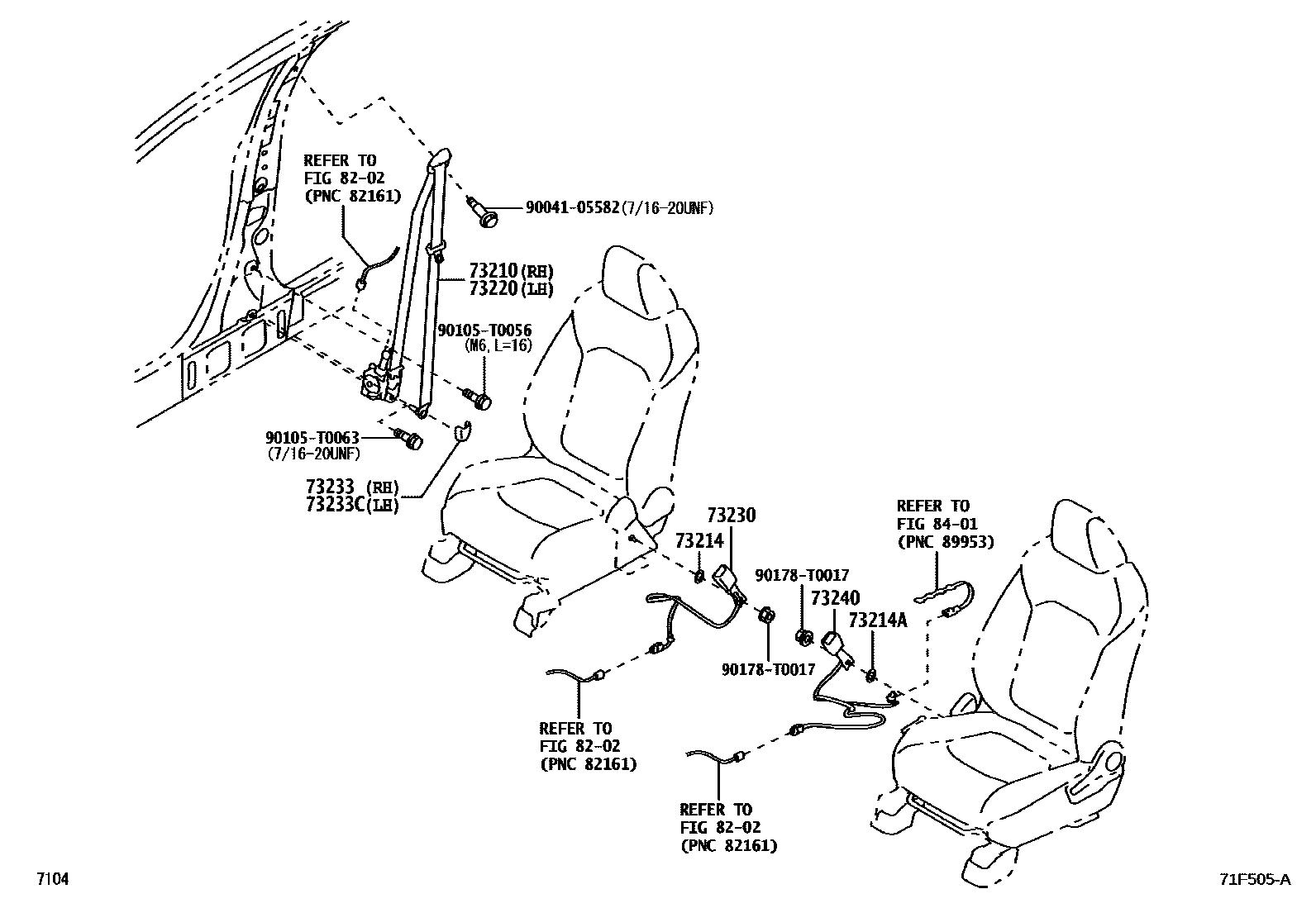

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT(RHD) 0003 1FRONT(RHD) 0004 1FRONT(LHD) 0005 1FRONT(LHD) 0006 1REAR 0007 1REAR

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-BZ760-C1iNGC200,NYC200..MA202406

BLACK,TRIM2#

main73210-BZ770-C1iNGC200,NYC200..IDNP202306

BLACK,TRIM2#

main73210-BZ780-C1iNYC200..(L,M)..TH; NYC200..H..TH202310

BLACK,TRIM1#,2#; BLACK,TRIM2#

main73210-BZ790-C1iNGC200..TAIW202310

BLACK,TRIM2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010iNGC200..M..TAIW202310

main73214-75010iNYC200..L..TH;NGC200..(H,L)..TAIW202310

73214APLATE, FRONT SEAT BELT ANCHOR, NO.2

main73214-0K010iNGC200..M..TAIW202310

main73214-75010iNYC200..L..TH;NGC200..(H,L)..TAIW202310

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-BZ710-C1iNGC200,NYC200..MA202406

BLACK,TRIM2#

main73220-BZ720-C1iNGC200,NYC200..IDNP202306

BLACK,TRIM2#

main73220-BZ730-C2iNYC200..(L,M)..TH; NYC200..H..TH202310

BLACK,TRIM1#,2#; BLACK,TRIM2#

main73220-BZ740-C1iNGC200..TAIW202310

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-BZD60-C0iNYC200..L..TH202310

BLACK,TRIM2#

main73230-BZE90-C0iNGC200,NYC200..MA202406

BLACK,TRIM2#

main73230-BZF10-C0iNGC200..M..IDN;NYC200..RHD..LA;NGC200..RHD..(GEN,LA)202306

BLACK,TRIM2#

main73230-BZF20-C0iNGC200,NYC200..LHD..IDNP202306

BLACK,TRIM2#

main73230-BZF30-C0iNGC200..H..IDN;NYC200..RHD..IDNP..H202306

BLACK,TRIM2#

main73230-BZF60-C0iNYC200..H..TH; NYC200..M..TH202310

BLACK,TRIM1#,2#; BLACK,TRIM2#

main73230-BZF80-C0iNGC200..TAIW202310

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-KK010-C1iNGC200..TAIW; NYC200..H..TH202310

BLACK,TRIM1#,2#; BLACK,TRIM2#

73233CCOVER, LAP BELT OUTER ANCHOR, LH

main73233-KK010-C1iNGC200..TAIW; NYC200..H..TH202310

BLACK,TRIM1#,2#; BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-BZD80-C0iNYC200..(L,M)..TH; NYC200..H..TH202310

BLACK,TRIM1#,2#; BLACK,TRIM2#

main73230-BZF10-C0iNGC200,NYC200..LHD..IDNP..(L,M)202306

BLACK,TRIM2#

main73230-BZF20-C0iNGC200,NYC200..RHD..IDNP202306

BLACK,TRIM2#

main73230-BZF30-C0iNGC200,NYC200..LHD..H..GEN202306

BLACK,TRIM2#

main73230-BZF70-C0iNGC200..TAIW202310

BLACK,TRIM2#

main73230-BZG00-C0iNGC200,NYC200..MA202406

BLACK,TRIM2#

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004105582

main90041-05582

90105T0056

main90105-T0056

90105T0063

main90105-T0063

90178T0017

main90178-T0017

14 parts on this diagram · 6 diagrams in section
