REAR SEAT & SEAT TRACK

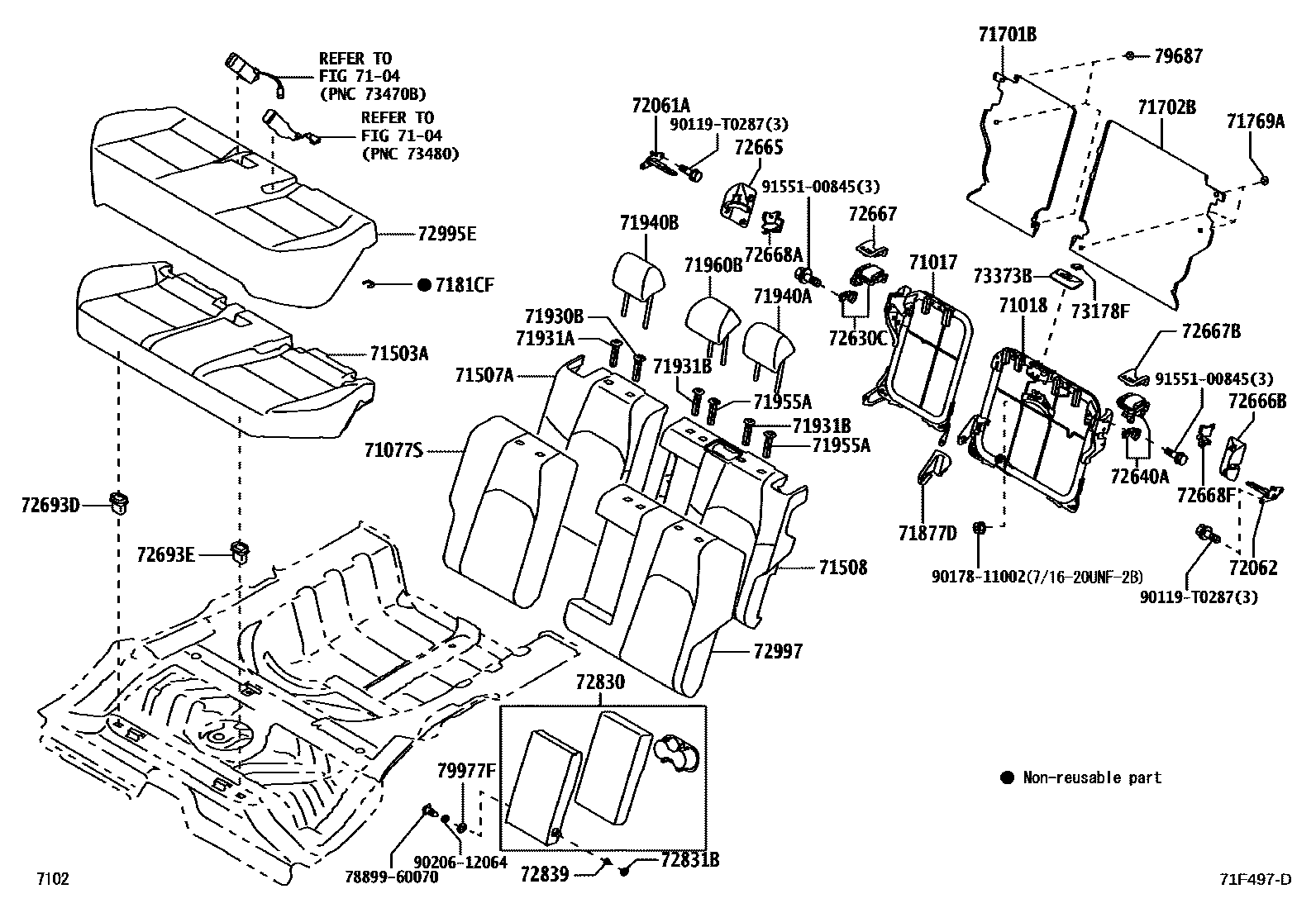

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-BZ480i202306
main71017-BZ490i202310
main71017-BZ500i202406
main71017-BZ510i202310
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-BZ330i202306
main71018-BZ340i202310
main71018-BZ350i202406
main71018-BZ360i202310
main71018-BZ370i202310
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-BZP90-C1i202306
BLUE BLACK,TRIM2#
main71077-BZQ00-C1i202306
BLUE BLACK PU,TRIM2#
main71077-BZQ10-C1i202406
BLUE BLACK PU,TRIM2#
main71077-BZQ20-C1i202310
BLUE BLACK PU,TRIM2#
main71077-BZQ70-C1i202306
BLUE BLACK PU,TRIM2#
main71077-BZQ80-C1i202310
BLUE GRAY PU,TRIM1#
main71077-BZQ80-C2i202310
BLUE BLACK PU,TRIM2#
main71077-BZQ90-C1i202406
BLUE BLACK PU,TRIM2#
main71077-BZR30-C1i202310
BLUE BLACK PU,TRIM2#
main71077-BZR40-C1i202310
BLUE BLACK PVC,TRIM2#
71503APAD SUB-ASSY, REAR SEAT CUSHION
main71503-BZ700i202306
main71503-BZ710i202306
main71503-BZ720i202310
main71503-BZ730i202406
main71503-BZ740i202406
main71503-BZ750i202310
71507APAD SUB-ASSY, REAR SEATBACK
main71507-BZ650i202306
main71507-BZ660i202310
main71507-BZ670i202406
main71507-BZ680i202310
71508PAD SUB-ASSY, REAR SEATBACK, LH
main71508-BZ410i202306
main71508-BZ420i202310
main71508-BZ430i202406
main71508-BZ440i202310
main71508-BZ450i202310
71701BBOARD SUB-ASSY, REAR SEATBACK, RH
main71701-BZ010i202306
main71701-BZ020i202310
main71701-BZ030i202406
main71701-BZ040i202310
71702BBOARD SUB-ASSY, REAR SEATBACK, LH
main71702-BZ010i202306
main71702-BZ020i202310
main71702-BZ030i202406
main71702-BZ040i202310
71769ACLIP, REAR SEATBACK BOARD
main71769-28040×2i202310
7181CFRING, HOG, SMALL (FOR REAR SEAT CUSHION)
main90468-18008×34i202306
71877DCOVER, REAR SEAT ARMREST HOLE
main71877-BZ010i202306
main71877-BZ030i202406
71930BSUPPORT ASSY, REAR SEAT HEADREST
main71930-0K050-C1i202306
BLACK,TRIM2#
main71930-47050-C5i202310
BLACK,TRIM2#
71931ASUPPORT, REAR SEAT HEADREST
main71931-0K040-C1i202310
W/O(LOCK),BLACK,TRIM1#,2#
main71931-47030-C4i202310
W/O(LOCK),BLACK,TRIM2#
71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST
main71931-0K040-C1×2i202306
W/O(LOCK),BLACK,TRIM2#
main71931-47030-C4×2i202310
W/O(LOCK),BLACK,TRIM2#
71940AHEADREST ASSY, REAR SEAT
main71940-BZJ60-C1i202306
BLUE BLACK PVC,TRIM2#
main71940-BZJ70-C1i202306
BLUE BLACK,TRIM2#
main71940-BZJ80-C1i202310
BLUE BLACK PVC,TRIM2#
main71940-BZJ90-B2i202310
BLUE GRAY PVC,TRIM1#
main71940-BZJ90-C2i202310
BLUE BLACK PVC,TRIM2#
main71940-BZK00-C1i202406
BLUE BLACK PVC,TRIM2#
main71940-BZK10-C1i202310
BLUE BLACK PVC,TRIM2#
main71940-BZK20-C1i202310
BLUE BLACK PVC,TRIM2#
71940BHEADREST ASSY, REAR SEAT, RH
main71940-BZJ60-C1i202306
BLUE BLACK PVC,TRIM2#
main71940-BZJ70-C1i202306
BLUE BLACK,TRIM2#
main71940-BZJ80-C1i202310
BLUE BLACK PVC,TRIM2#
main71940-BZJ90-B2i202310
BLUE GRAY PVC,TRIM1#
main71940-BZJ90-C2i202310
BLUE BLACK PVC,TRIM2#
main71940-BZK00-C1i202406
BLUE BLACK PVC,TRIM2#
main71940-BZK10-C1i202310
BLUE BLACK PVC,TRIM2#
main71940-BZK20-C1i202310
BLUE BLACK PVC,TRIM2#
71955ASUPPORT, REAR SEAT HEADREST
main71930-0K050-C1×2i202306
BLACK,TRIM2#
main71930-47050-C5×2i202310
BLACK,TRIM2#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-BZ180-C1i202306
BLUE BLACK PVC,TRIM2#
main71960-BZ190-C1i202306
BLUE BLACK,TRIM2#
main71960-BZ200-C1i202310
BLUE BLACK PVC,TRIM2#
main71960-BZ210-B2i202310
BLUE GRAY PVC,TRIM1#
main71960-BZ210-C2i202310
BLUE BLACK PVC,TRIM2#
main71960-BZ220-C1i202406
BLUE BLACK PVC,TRIM2#
main71960-BZ230-C1i202310
BLUE BLACK PVC,TRIM2#
main71960-BZ240-C1i202310
BLUE BLACK PVC,TRIM2#
72061ABASE SUB-ASSY, REAR SEATBACK LOCK, RH
main72061-BZ010i202306
72062BASE SUB-ASSY, REAR SEATBACK LOCK, LH
main72062-BZ010i202310
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-BZ070-C3i202306
BLACK,TRIM2#
main72630-BZ080-C1i202310
BLACK,TRIM1#,2#; BLACK,TRIM2#
main72630-BZ100-C2i202310
BLACK,TRIM2#
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-BZ080-C3i202306
BLACK,TRIM2#
main72640-BZ090-C1i202310
BLACK,TRIM1#,2#; BLACK,TRIM2#
main72640-BZ110-C2i202310
BLACK,TRIM2#
72665COVER, REAR SEATBACK LOCK, RH
main72665-BZ080-C3i202306
BLACK,TRIM2#
main72665-BZ110-C1i202310
BLACK,TRIM1#,2#; BLACK,TRIM2#
main72665-BZ130-C2i202310
BLACK,TRIM2#
72666BCOVER, REAR SEAT LOCK, LH
main72666-BZ080-C3i202306
BLACK,TRIM2#
main72666-BZ090-C1i202310
BLACK,TRIM1#,2#; BLACK,TRIM2#
main72666-BZ110-C2i202310
BLACK,TRIM2#
72667BEZEL, REAR SEATBACK LOCK, UPPER
main72667-BZ030-C0i202306
BLACK,TRIM2#
main72667-BZ040-C0i202310
BLACK,TRIM1#,2#; BLACK,TRIM2#
main72667-BZ060-C0i202310
BLACK,TRIM2#
72667BBEZEL, REAR SEATBACK LOCK, UPPER LH
main72667-BZ030-C0i202306
BLACK,TRIM2#
main72667-BZ040-C0i202310
BLACK,TRIM1#,2#; BLACK,TRIM2#
main72667-BZ060-C0i202310
BLACK,TRIM2#
72668ABEZEL, REAR SEATBACK LOCK, LOWER
main72668-BZ030i202306
main72668-BZ040i202406
main72668-BZ060i202310
72668FBEZEL, REAR SEATBACK LOCK, LOWER LH
main72668-BZ070i202306
main72668-BZ080i202310
main72668-BZ100i202310
72693DHOOK, REAR SEAT CUSHION LOCK, RH
main72693-12080i202406
72693EHOOK, REAR SEAT CUSHION LOCK, LH
main72693-12080i202306
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-BZ130-C2i202306
BLACK,TRIM2#
main72830-BZ200-C3i202306
BLACK,TRIM2#
main72830-BZ210-C1i202310
BLACK,TRIM2#
main72830-BZ220-B1i202310
BLUE GRAY PU,TRIM1#
main72830-BZ220-C1i202310
BLUE BLACK PU,TRIM2#
main72830-BZ230-C2i202406
BLACK,TRIM2#
main72830-BZ240-C1i202310
-,TRIM2#
72831BPLATE, REAR SEAT CENTER ARMREST, NO.1
main72831-BZ020i202306-202501
main72831-BZ040i202310
72839SHIM, REAR SEAT ARMREST HINGE
main72839-22010i202406
72995ECOVER, REAR SEAT CUSHION
main71075-BZQ10-C1i202306
BLUE BLACK,TRIM2#
main71075-BZQ20-C1i202306
BLUE BLACK PU,TRIM2#
main71075-BZQ30-C1i202406
BLUE BLACK PU,TRIM2#
main71075-BZQ40-C1i202310
BLUE BLACK PU,TRIM2#
main71075-BZQ80-C1i202306
BLUE BLACK,TRIM2#
main71075-BZQ90-C1i202306
BLUE BLACK PU,TRIM2#
main71075-BZR00-C1i202310
BLUE GRAY PU,TRIM1#
main71075-BZR00-C2i202310
BLUE BLACK PU,TRIM2#
main71075-BZR10-C1i202406
BLUE BLACK PU,TRIM2#
main71075-BZR50-C1i202310
BLUE BLACK PU,TRIM2#
main71075-BZR60-C1i202310
BLUE BLACK PVC,TRIM2#
72997COVER, REAR SEATBACK, LH
main71078-BZE10-C1i202306
BLUE BLACK,TRIM2#
main71078-BZE20-C1i202306
BLUE BLACK PU,TRIM2#
main71078-BZG60-C1i202406
BLUE BLACK PU,TRIM2#
main71078-BZG70-C1i202310
BLUE BLACK PU,TRIM2#
main71078-BZJ20-C1i202306
BLUE BLACK PU,TRIM2#
main71078-BZJ30-C1i202310
BLUE GRAY PU,TRIM1#
main71078-BZJ30-C2i202310
BLUE BLACK PU,TRIM2#
main71078-BZJ40-C1i202406
BLUE BLACK PU,TRIM2#
main71078-BZJ80-C1i202310
BLUE BLACK PU,TRIM2#
main71078-BZJ90-C1i202310
BLUE BLACK PVC,TRIM2#
73178FCAP, SEAT BELT ANCHOR COVER, NO.3
main73178-BZ020-C0i202306
BLACK,TRIM2#
main73178-BZ030-C0i202310
BLACK,TRIM1#,2#; BLACK,TRIM2#
main73178-BZ050-C0i202310
BLACK,TRIM2#
73373BCOVER, REAR NO.1 SEAT SHOULDER BELT
main73373-BZ020-C3i202306
BLACK,TRIM2#
main73373-BZ030-C1i202310
BLACK,TRIM1#,2#; BLACK,TRIM2#
main73373-BZ050-C2i202310
BLACK,TRIM2#
79687CLIP
main71769-28040×3i202306
79977FFELT, SEATBACK, LH
main79977-BZ030i202306
main79977-BZ050i202310
7889960070BOLT, FRONT SEAT
main78899-60070
90119T0287
main90119-T0287
9017811002
main90178-11002
9020612064
main90206-12064
9155100845
main91551-00845

45 parts on this diagram · 6 diagrams in section
