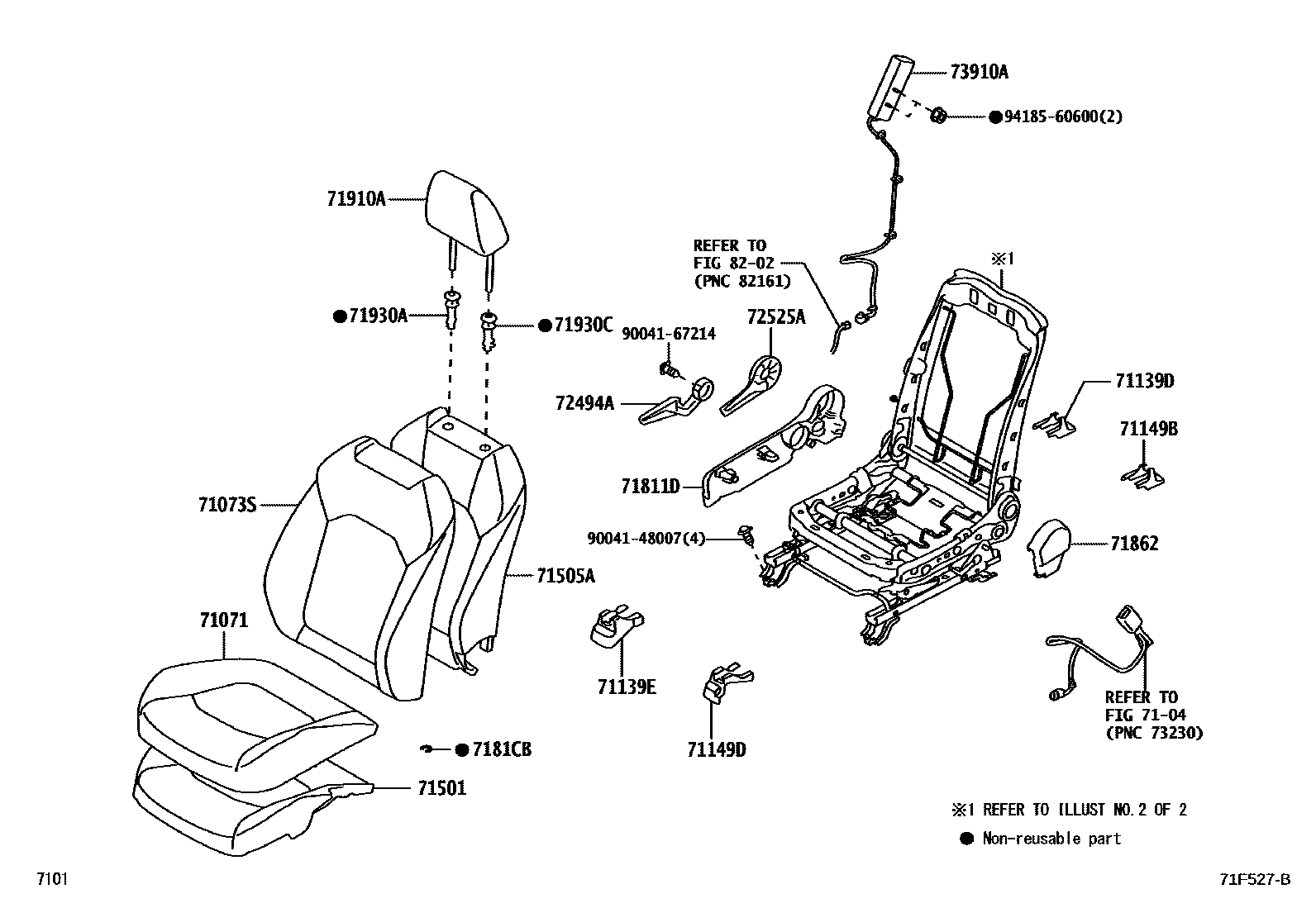

FRONT SEAT & SEAT TRACK

0001 1RHD(RH) 0003 1RHD(RH) 0004 1RHD(RH) 0005 1RHD(RH) 0007 1RHD(RH) 0008 1RHD(LH) 0010 1RHD(LH) 0011 1RHD(LH) 0014 1RHD(LH) 0015 1LHD(RH) 0016 1LHD(RH) 0017 1LHD(RH) 0018 1LHD(LH) 0019 1LHD(LH) 0020 1LHD(LH) 0021 1LHD(LH) 0022 1LHD(LH)

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71071COVER SUB-ASSY, FRONT SEAT CUSHION, RH

main71071-BZP00-J0iNYC200..LHD..GEN202306

BLUE BLACK PU,TRIM2#

main71071-BZT40-J0iNGC200,NYC200..RHD..IDNP..M202306

BLUE BLACK,TRIM2#

main71071-BZT50-C1iNYC200..L..TH202310

BLUE BLACK PU,TRIM2#

main71071-BZT60-J0iNGC200..RHD..H..GEN202306

BLUE BLACK PU,TRIM2#

main71071-BZT90-J0iNYC200..RHD..IDNP..H202306

BLUE BLACK PU,TRIM2#

main71071-BZU00-J0iNYC200..MA202406

BLUE BLACK PU,TRIM2#

main71071-BZU10-J0iNGC200..MA202406

BLUE BLACK PU,TRIM2#

main71071-BZU20-G0iNYC200..H..TH202310

BLUE GRAY PU,TRIM1#

main71071-BZU20-J0iNYC200..(H,M)..TH202310

BLUE BLACK PU,TRIM2#

main71071-BZU60-J0iNGC200,NYC200..LHD..IDNP..(L,M)202306

BLUE BLACK,TRIM2#

main71071-BZU70-J0iNGC200..H..TAIW202310

BLUE BLACK PU,TRIM2#

main71071-BZU80-J0iNGC200..LHD..H..GEN202306

BLUE BLACK PU,TRIM2#

main71071-BZV30-C1iNGC200..(L,M)..TAIW202310

BLUE BLACK PVC,TRIM2#

main71071-BZZ30-J0iNGC200..H..IDN202306

BLUE BLACK PU,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-BY040-J1iNYC200..LHD..GEN202306

BLUE BLACK PU,TRIM2#

main71073-BY340-J0iNGC200..H..IDN202306

BLUE BLACK PU,TRIM2#

main71073-BZV30-J0iNGC200,NYC200..IDNP..(L,M)202306

BLUE BLACK,TRIM2#

main71073-BZV40-C1iNYC200..L..TH202310

BLUE BLACK PU,TRIM2#

main71073-BZV50-J0iNGC200..H..GEN202306

BLUE BLACK PU,TRIM2#

main71073-BZV80-J1iNYC200..RHD..IDNP..H202306

BLUE BLACK PU,TRIM2#

main71073-BZV90-J1iNYC200..MA202406

BLUE BLACK PU,TRIM2#

main71073-BZW00-J0iNGC200..MA202406

BLUE BLACK PU,TRIM2#

main71073-BZW10-G0iNYC200..H..TH202310

BLUE GRAY PU,TRIM1#

main71073-BZW10-J0iNYC200..(H,M)..TH202310

BLUE BLACK PU,TRIM2#

main71073-BZW60-J0iNGC200..H..TAIW202310

BLUE BLACK PU,TRIM2#

main71073-BZX20-C1iNGC200..L..TAIW202310

BLUE BLACK PVC,TRIM2#

main71073-BZX30-C1iNGC200..M..TAIW202310

BLUE BLACK PVC,TRIM2#

71139DCOVER, FRONT SEAT LEG NO.1

main71148-BZ010-C2iNGC200..H..IDN;NYC200..RHD..IDNP..H202306

BLACK,TRIM2#

main71148-BZ020-C4iNYC200..LA;NGC200..M..IDN;NGC200..GEN,LA;NYC200..LHD..GEN202306

BLACK,TRIM2#

main71148-BZ030-C0iNYC200..(L,M)..TH; NYC200..H..TH202310

BLACK,TRIM1#,2#; BLACK,TRIM2#

main71148-BZ040-C0iNGC200..TAIW202310

BLACK,TRIM2#

main71148-BZ060-C0iNGC200,NYC200..MA202406

BLACK,TRIM2#

71139ECOVER, FRONT SEAT LEG NO.2

main71148-BZ120-C4iNGC200,NYC200..IDNP202306

BLACK,TRIM2#

main71148-BZ130-C0iNYC200..(L,M)..TH; NYC200..H..TH202310

BLACK,TRIM1#,2#; BLACK,TRIM2#

main71148-BZ140-C0iNGC200..TAIW202310

BLACK,TRIM2#

main71148-BZ170-C0iNGC200,NYC200..MA202406

BLACK,TRIM2#

71149BCOVER, FRONT SEAT LEG, LH (FOR RH SEAT)

main71149-BZ110-C2iNGC200..H..IDN;NYC200..RHD..IDNP..H202306

BLACK,TRIM2#

main71149-BZ120-C4iNYC200..LA;NGC200..M..IDN;NGC200..GEN,LA;NYC200..LHD..GEN202306

BLACK,TRIM2#

main71149-BZ130-C0iNYC200..L..TH202310

BLACK,TRIM2#

main71149-BZ180-C0iNGC200..TAIW202310

BLACK,TRIM2#

main71149-BZ190-C0iNYC200..H..TH; NYC200..M..TH202310

BLACK,TRIM1#,2#; BLACK,TRIM2#

main71149-BZ200-C0iNGC200,NYC200..MA202406

BLACK,TRIM2#

71149DCOVER, FRONT SEAT LEG, INNER (FOR RH SEAT)

main71149-BZ260-C4iNYC200..LA;NGC200..M..IDN;NGC200..GEN,LA;NYC200..LHD..GEN202306

BLACK,TRIM2#

main71149-BZ270-C2iNGC200..H..IDN;NYC200..RHD..IDNP..H202306

BLACK,TRIM2#

main71149-BZ280-C0iNGC200,NYC200..MA202406

BLACK,TRIM2#

main71149-BZ290-C0iNGC200..TAIW202310

BLACK,TRIM2#

main71149-BZ300-C0iNYC200..L..TH202310

BLACK,TRIM2#

main71149-BZ310-C0iNYC200..H..TH; NYC200..M..TH202310

BLACK,TRIM1#,2#; BLACK,TRIM2#

71501PAD SUB-ASSY, FRONT SEAT CUSHION, RH

main71501-BZ720iNYC200..LA;NGC200..M..IDN;NGC200..GEN,LA;NYC200..LHD..GEN202306

main71501-BZ730iNGC200..H..IDN;NYC200..RHD..IDNP..H202306

main71501-BZ740iNYC200..L..TH202310

main71501-BZ750iNYC200..(H,M)..TH202310

main71501-BZ760iNGC200,NYC200..MA202406

main71501-BZ770iNGC200..TAIW202310

71505APAD SUB-ASSY, FRONT SEATBACK, RH

main71505-BZ700iNYC200..LA;NGC200..M..IDN;NGC200..GEN,LA;NYC200..LHD..GEN202306

main71505-BZ710iNGC200..H..IDN;NYC200..RHD..IDNP..H202306

main71505-BZ720iNYC200..L..TH202310

main71505-BZ730iNYC200..(H,M)..TH202310

main71505-BZ740iNGC200,NYC200..MA202406

main71505-BZ750iNGC200..TAIW202310

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-BZ270-C0iNYC200..L..TH202310-202503

BLACK,TRIM2#

main71811-BZ420-C0iNGC200..M..IDN;NYC200..RHD..LA;NGC200..RHD..(GEN,LA)202306

BLACK,TRIM2#

main71811-BZ430-C0iNGC200,NYC200..LHD..IDNP202306

BLACK,TRIM2#

main71811-BZ440-C0iNGC200..H..IDN;NYC200..RHD..IDNP..H202306

BLACK,TRIM2#

main71811-BZ450-C0iNYC200..H..TH; NYC200..M..TH;NGC200,NYC200..MA202310

BLACK,TRIM1#,2#; BLACK,TRIM2#

main71811-BZ470-C0iNGC200..TAIW202310

BLACK,TRIM2#

7181CBRING, HOG, SMALL (FOR FRONT SEAT CUSHION)

main90468-18008×2iNGC200,NYC200202306

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71861-06350-C0iNYC200..H..TH; NYC200..M..TH;NGC200,NYC200..MA202310

BLACK,TRIM1#,2#; BLACK,TRIM2#

main71861-BZ140-C0iNYC200..L..TH202310

BLACK,TRIM2#

main71861-BZ170-C0iNGC200..M..IDN;NYC200..RHD..LA;NGC200..RHD..(GEN,LA)202306

BLACK,TRIM2#

main71861-BZ180-C0iNGC200,NYC200..LHD..IDNP202306

BLACK,TRIM2#

main71861-BZ220-C0iNGC200..TAIW202310

BLACK,TRIM2#

main71862-BZ150-C0iNGC200..H..IDN;NYC200..RHD..IDNP..H202306

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-BZL00-C1iNGC200,NYC200..IDNP..(L,M)202306

BLUE BLACK,TRIM2#

main71910-BZL10-C1iNGC200,NYC200..IDNP..H202306

BLUE BLACK PVC,TRIM2#

main71910-BZL20-C1iNYC200..L..TH202310

BLUE BLACK PVC,TRIM2#

main71910-BZL30-B1iNYC200..H..TH202310

BLUE GRAY PVC,TRIM1#

main71910-BZL30-C2iNYC200..(H,M)..TH202310

BLUE BLACK PVC,TRIM2#

main71910-BZL40-C1iNGC200,NYC200..MA202406

BLUE BLACK PVC,TRIM2#

main71910-BZL50-C1iNGC200..(L,M)..TAIW202310

BLUE BLACK PVC,TRIM2#

main71910-BZL60-C1iNGC200..H..TAIW202310

BLUE BLACK PVC,TRIM2#

71930ASUPPORT ASSY, FRONT SEAT HEADREST

main71931-0K040-C1iNYC200..M..TH;NGC200..H..(IDN,MA);NYC200..RHD..(IDNP,MAP)..H202306

W/O(LOCK),BLACK,TRIM2#

main71931-BZ120-C0iNYC200..LA;NYC200..L..TH;NGC200..M..IDN;NYC200..LHD..GEN;NGC200..GEN,LA,TAIW202306

W/O(LOCK),BLACK,TRIM2#

71930CSUPPORT, FRONT SEAT HEADREST, LH

main71930-0K050-C1iNYC200..H..TH202310

BLACK,TRIM1#,2#

main71930-BZ110-C0iNYC200..LA;NYC200..L..TH;NGC200..M..IDN;NYC200..LHD..GEN;NGC200..GEN,LA,TAIW202306

BLACK,TRIM2#

72494AHANDLE, FRONT SEAT VERTICAL ADJUSTER, RH

main72494-BZ010-C0iNYC200..L..TH202310

BLACK,TRIM2#

main72494-BZ030-C0iNGC200..M..IDN;NYC200..RHD..LA;NGC200..RHD..(GEN,LA)202306

BLACK,TRIM2#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-BZ150-C0iNYC200..L..TH202310

BLACK,TRIM2#

main72525-BZ170-C0iNYC200..LA;NGC200..M..IDN;NGC200..GEN,LA;NYC200..LHD..GEN202306

BLACK,TRIM2#

main72525-BZ180-C0iNGC200..TAIW202310

BLACK,TRIM2#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-BZ070iNGC200..TAIW;NYC200..L..TH202310

main73910-BZ090iNYC200..LA;NGC200..M..IDN;NGC200..GEN,LA;NYC200..LHD..GEN202306

main73910-BZ120iNYC200..(H,M)..TH202310

main73910-BZ130iNGC200,NYC200..MA202406

main73910-BZ170iNGC200..H..IDN;NYC200..RHD..IDNP..H202306

8202WIRING & CLAMP

→ Go to FIG 82-02

9004148007

main90041-48007

9004167214

main90041-67214

9418560600

main94185-60600

22 parts on this diagram · 17 diagrams in section
